KIT SHERPA FLEX BOX AS
KIT SHERPA FLEX BOX AS
Sherpa Flex Box AS kit is the technical cabinet that makes it possible to create a compact system in heat pump with high installation flexibility.
The multi-purpose heat pump (Sherpa Aquadue) and the class C storage tanks make it possible to obtain a very high energy efficiency of the system, even in outdoor installation.
FEATURES
DOMESTIC WATER STORAGE TANK 150 LT - STAINLESS STEEL
High thermal insulation 50 mm in EPS with graphite to minimise dispersions (class C)
TECHNICAL ACCUMULATION 28 LT - STAINLESS STEEL
(standard on return from the system) To ensure efficient and safe operation of the heat pump (class C)
FREESTANDING TECHNICAL CABINET
For maximum installation flexibility with a single product. In galvanised steel.
INFORMATION
BRAND
Olimpiasplendid
PRODUCT TYPE
Flex Box
TYPES OF INSTALLATION
The technical cabinet must be installed in an area protected from the weather according to installation manual
- Outdoor support
- Outdoor semi-recessed
- Indoor support D. Indoor semi-recessed
DIMENSIONS
- Width : 998 mm
- Height : 415 mm
- Depth : 2280 mm
PRODUCTION
Made in Italy
COLLECTION
Kit
TOTAL HARDNESS °F
TOTAL HARDNESS °F
ELECTRIC CONDUCTIVITY
>350 / <800

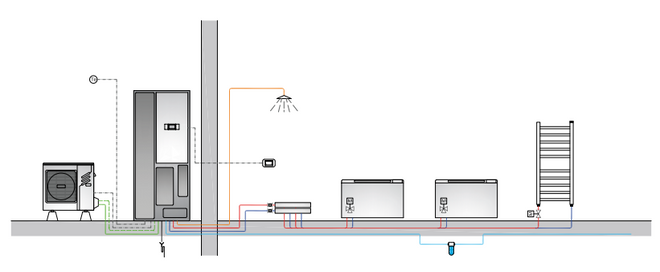

SYSTEM DIAGRAM
MANGANESE
<0.05 [mg/L]
HEAT PUMP SIZE
8 and 10
COMPATIBILITY WITH
- Sherpa aquadue s2 e 4 (ui sherpa aquadue s2 e small 02042)
- Sherpa aquadue s2 e 6 (ui sherpa aquadue s2 e small 02042)
- Sherpa aquadue s2 e 8 (ui sherpa aquadue s2 e small 02042)
- Sherpa aquadue s2 e 10 (ui sherpa aquadue s2 e small 02042)
HYDRAULIC SCHEME
FEATURES
System connections from below or from the back Condensate trap to prevent any dripping of the condensation on the bottom of the cabinet Possible combination with display remote control kit (B0931) The distribution and heat emission network downstream of Sherpa Flex Box AS must ensure the circulation of the minimum flow rate of the heat pump in all operating conditions by means of 3-way valves or by-pass systems, in addition, for heat pump sizes 8 and 10, the water content of the distribution network and of the fan coil units must be at least 10 litres (refer to the product installation manuals).
CODE
B0918
MATERIAL
Steel
INSTALLATION
Outdoor
DETAILS
- UI Sherpa Aquadue S2/S3 E Small (02042/02296) - to be ordered separately
- Domestic hot water storage tank 150 litres – Stainless Steel AISI 316L
- Technical system storage tank 28 litres – Stainless Steel AISI 316L
- Storage tank return filter
- System return filter
- Domestic water expansion tank 12 litres
- Safety valves domestic water 6 bar
- Domestic water thermostatic mixing valve
- Micrometric lockshield for By-Pass
- Condensate trap
