Berbel Smartline Headroom Hood

SMARTLINE HEADROOM HOOD

Berbel Smartline Headroom Hood

SMARTLINE HEADROOM HOOD

A Real Trend Setter

The flue-free headroom hood Smartline’s attractive façade conceals proven and energy-efficient berbel recirculation technology. The flue-free headroom hood Smartline’s attractive façade conceals proven and energy-efficient berbel recirculation technology.

The new material mix and sophisticated technology make the Smartline a visual treat, as well as a powerful tool for removing grease, oils and odours. Optionally available with active carbon filter or with maintenance-free permalyt® recirculation filter.

INFORMATION

BRAND

Berbel

PEODUCT TYPE

Headroom Hood

AVAILABLE WIDTHS

80, 90 cm

ANNUAL CONSUMPTION IN KWH

No Classification For Recirculation Hoods

ENERGY EFFICIENCY CLASS

No Classification For Recirculation Hoods

LED HOB ILLUMINATION, LUX

387

RECIRCULATION

Recirculation mode is the most energy-saving operating mode. The air is cleaned by an odour filter and directed back into the room. The room temperature is not altered. It is also simple to implement, because wall penetrations and exhaust channels are not required. Due to their large volume, berbel charcoal filters are especially efficient at odour-binding and absorb up to 95% of bad smells. A further advantage of the berbel recirculation filter: only the proactive carbon needs to be changed – not the entire filter – and it only needs to be replaced every two to three years depending on how hard the filter has to work. The berbel refill pack is available for a cost-effective and environmentally friendly replacement.

Berbel Smartline Headroom Hood

ACOUSTIC PRESSURE STAGE 3 DB(A) RE 20 ΜPA

47

FREE-BLOWING FAN PERFORMANCE, M3/H

630

POWER LEVEL

Acoustic power level 3 dB(A) : 59

FAN POWER CONSUMPTION, W

170

AFTERRUN FUNCTION FOR RECIRCULATION MODE

Manual

REC. DISTANCE FROM HOB

45 cm (gas hob > 65 cm)

LED COLOUR TEMPERATURE, K

3,500

CONNECTION VOLTAGE

230 V / 50 Hz

LIGHTING

LED 15.6 W

DEPTH

420 mm

HEIGHT

389 mm

COLOURS

Berbel Smartline Headroom Hood
Mat Black Steel Decoration
Berbel Smartline Headroom Hood

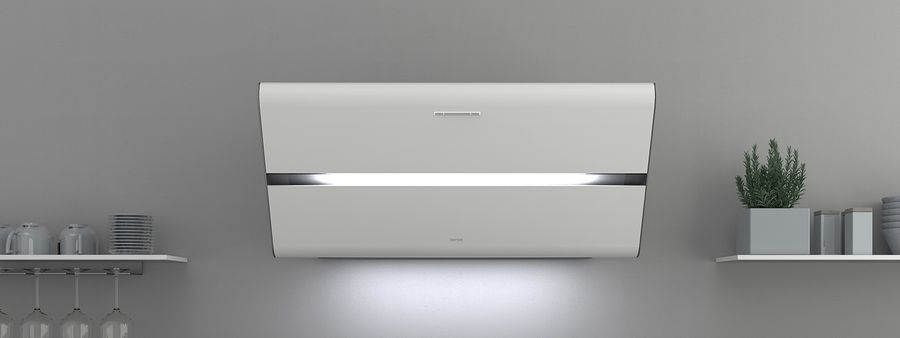

White Steel Decoration
Berbel Smartline Headroom Hood
Metallic Grey Decoration

POWERFUL VAPOUR EXTRACTION

The quality of the powerful and low-noise EC motor and berbel’s unparalleled BackFlow technology that reliably prevents condensate formation on the body and provides for more efficient capture of rising vapour are wholly convincing. The three fan settings, the afterrun function and the light feature can be intuitively controlled using the discreet operating panel.

NET WEIGHT

29 | 30kg

PERFORMANCE STAGES

3 + power stage (P)

DESIGN

The Smartline headroom hood is distinguished by exciting contrasts between the matt black steel surface and the subtly rounded edge profiling made of brushed stainless steel. The sophisticated mix of materials gives this flue-free wall-mounted hood a particularly harmonious appearance. It allows for even more individual freedom for young kitchen design.

 LIGHT

Yes

LED

15.6 w

PLANNING INFORMATION

- Max. niche back panel thickness of 21 mm for flush finish under hood
- Power supply of 230 V (power socket) must be planned behind chimney

Berbel Smartline Headroom Hood

- Recommended worktop depth: max. 600 mm
- Optimal hood width: hob + 10 cm
- Flue-free headroom hood (recirculation) – incl. active carbon filter
- Observe clearance for power connection. A recess is provided on the back of the device to allow for flush mounting on the wall

STANDARD FEATURES

- Efficient and consistently high rate of fat separation with the powerful berbel principle combined with the latest generation of our highly efficient Capillar Trap
- Extra effective thanks to our BackFlow technology for top vapour capture efficiency
- Extremely low-noise and energy saving hood, optionally available with active carbon filter or permalyt® filter
- New design with rounded edges
- Slim, flue-free design
- Controlled opening mechanism with gently sliding hinges, a removable stainless steel collection tray, and perfectly finished inside for easy and fast cleaning
- Easy operation via the control panel. The features are supported visually by means of LED lighting.
- Removable metal collection tray
- Perfect hob lighting with modern, durable LEDs on the bottom side and in the working area
- Automatic afterrun function for long active carbon filter life
