THE HEADROOM HOOD ERGOLINE 2
THE HEADROOM HOOD ERGOLINE 2

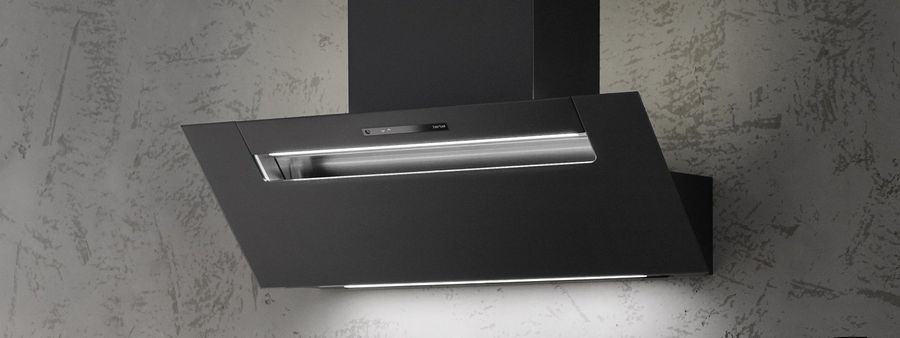

The new generation of the Ergoline headroom hood is a great match for any kitchen style. The decorative glass on the Ergoline 2 is available in various different colours. The effective berbel principle with its BackFlow technology (patent pending) and the latest generation of the Capillar Trap provides for maximum and lasting efficiency in removing grease and cooking odours – without fat filters. Winner of the PLUS X AWARD 2020 and the Red Dot Product Design Award 2020.
INFORMATION
BRAND
Berbel
NET WEIGHT
27 ,28, 31 ,32, 36, 37 kg
AVAILABLE WIDTHS
60 , 70 , 80 , 90 , 110 , 120 cm
ANNUAL CONSUMPTION IN KWH
36 , 36 , 34 ,39
FAT SEPARATION CLASS
B
ENERGY EFFICIENCY CLASS
A
FLUID DYNAMIC EFFICIENCY CLASS
A
SOUND LEVEL STAGE 3 (DB(A) RE 1 PW)
60 ,59 ,62
PERFORMANCE STAGES
3 + power stage (P)
FREE-BLOWING FAN PERFORMANCE, M3/H
630, 760 M3/h
PIPE CONNECTION, Ø IN MM
150
ACOUSTIC PRESSURE STAGE 3 DB(A) RE 20 ΜPA
48 , 47 , 51
LIGHTING EFFICIENCY CLASS
A
AFTERRUN FUNCTION FOR RECIRCULATION MODE
Automatic (Configurable)
LED, W
12.7 , 14.2 , 20
REC. DISTANCE FROM HOB
50 | > 65
LED COLOUR TEMPERATURE, K
2.700 - 6.500
FAN POWER CONSUMPTION, W
170
SPECIAL EQUIPMENT
- EcoSwitch Control: Switch between Recirculation and exhaust air
- Maintenance-free recirculation mode with the regenerative permalyt® recirculation filter
- Chimney extension to up to 1,980 mm possible
- Round or angular lateral outlets for exhaust air mode
- Glass body available in colour of your choice
DOWNLOAD
↓ Operating Instructions
LED HOB ILLUMINATION, LUX
450 ,390 , 472 ,600
STANDARD FEATURES
- Efficient fat separation at a consistent level using with the powerful berbel principle
- Capillar Trap, the berbel collection system for very small particles for improved grease separation
- Particularly energy-efficient and low-noise extractor hood with whisper-quiet EC fan motor
- The front is now attached by means of a new hinge mounting system with integrated cushioning, to allow for the flap to be opened and closed comfortably
- Innovative removable collection trays and anti-impact edges, and perfect to clean interior finishing
- BackFlow technology (patent pending) for top vapour capture efficiency and condensate-free decorative glass surfaces
- Dimmable LED hob lighting with adjustable colour temperature, controlled via the convenient panel
- Atmospheric indirect LED rear wall lighting
- EcoSwitch preparation
DETAILED SOPHISTICATION
Even award winning products can be improved further! The new version of berbel’s popular Ergoline headroom hood features some smart little details. The effective berbel principle was updated and a revised Capillar Trap was added.
The integrated residue separator captures and removes very small fat particles. The opening mechanism has also been optimised on the Ergoline 2. Dampened free running hinges enable the flap to open absolutely independently.
PLANNING INFORMATION
- Max. niche back panel thickness of 21 mm for flush finish under hood
- Power supply of 230 V (power socket) must be planned behind chimney
- Recommended worktop depth: max. 600 mm
- Optimal hood width: hob + 10 cm
- Not suitable for use with an external or intermediate fan (BackFlow technology without function)
- Mount chimney shaft for recirculation with air outlet pointing upwards
- Space-saving hybrid filter available with outlet to rear or side
- Note minimum height for EcoSwitch-System: Space-saving hybrid filters available with outlet to the side or rear, instead of a 90° bend
- With use of permalyt® filter, plan at least 10 cm for installation
DESIGN
DESIGN
Its energy-efficient operation, whisper-quiet EC motor, and atmospheric rear lighting with LEDs make the berbel Ergoline 2 headroom hood a strong partner for creative cooks - even in the basic version. The appearance of the Ergoline 2 has also been updated: Thanks to a significantly flatter fan housing, the body height could be reduced by 6 cm, allowing for improved planning freedom.
Versions: -White glass body -Black glass body -Metallic silver glass body -Frosted black satin glass body (90 cm only) -Glass body in colour of your choice (surcharge)
MODES
HYBRID
Combine the benefits of both exhaust air mode and recirculation mode. With the berbel EcoSwitch you can respond flexibly to your needs depending on cooking and weather conditions by using the EcoSwitch button on your berbel extractor hood to switch between energy-saving recirculation mode in winter and particularly effective exhaust air mode whenever you need:
for instance during fast browning or throughout the summer months. In addition to the berbel extractor hood with EcoSwitch you need the following system components for this:
- Berbel wall box
- Optimised flow for extraction ducts
- Berbel hybrid filter
RECIRCULATION
Recirculation mode is the most energy-saving operating mode. The air is cleaned by an odour filter and directed back into the room. The room temperature is not altered. It is also simple to implement, because wall penetrations and exhaust channels are not required. Due to their large volume, are especially efficient at odour-binding and absorb up to 95% of bad smells.
A further advantage of the berbel recirculation filter: only the proactive carbon needs to be changed – not the entire filter – and it only needs to be replaced every two to three years depending on how hard the filter has to work. The berbel refill pack is available for a cost-effective and environmentally friendly replacement.
EXHAUST AIR
Exhaust air directed outside the building is particularly effective when it comes to the removal of odours, fumes and the moisture that results from cooking. It is advisable to use a berbel automatic wall sleeve to minimise heat loss. This seals and insulates the pipe outlet on the facade when the extractor hood is switched off.
The planning of the exhaust air flow path should be optimised, since this positively influences the efficiency and smooth running of the hood. The appropriate duct material for this can be found in the exhaust air accessories section.
