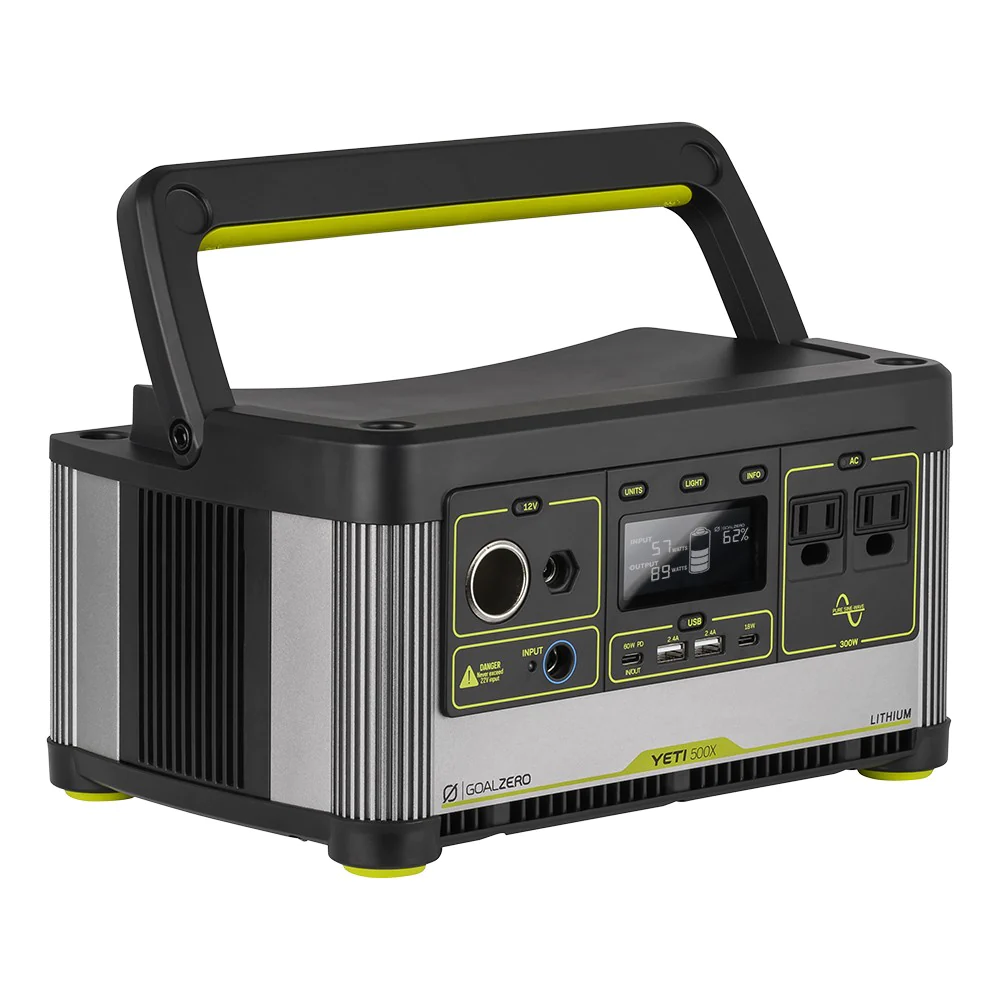

Goalzero Yeti500x + Nomad 50 Solar Generator
Yeti500x + Nomad 50 Solar Generator
YETI500X + NOMAD 50 SOLAR GENERATOR
Keep all your small to medium devices and appliances charged with this compact, versatile kit.
Unfold the panels for easy solar collection while stationary, then quickly pack away in tight spaces in your vehicle while traveling.
"If you’d like to stick with the more sustainable approach, or maybe you’re using it during your stay at a campsite where you don’t have access to an outlet, the Nomad 50 solar panels will charge the Yeti 500X in as little as 12 hours."
features
YETI 500X + NOMAD 50 SOLAR GENERATOR HIGHLIGHTS
This solar generator can recharge from the sun in as little as 12 hours. -Lightweight and portable, this generator is ideal for someone on the move. -A sustainable energy source with no noise and no fumes
TIPS & TRICKS FOR USING SOLAR PANELS
- The solar panel does not hold a charge - it produces power when it is exposed to sunlight. -Place solar panels towards the sun at an angle. -Connect High Power Power to Yeti Power Station. -Adjust solar panel as the sun moves across the sky.
NOMAD 50 HIGHLIGHTS
- 50 Watts lets you solar charge power banks and power stations to keep laptops charged, run portable fridges, and power essential electronics. -Four monocrystalline panels enclosed in a protective case fold down to a compact profile for easy storage and versatility. Hanging loops allow you to strap the panel to vehicles, tents, and more.
Features built-in charging cables for use with Goal Zero Yeti Power Stations, Sherpa Power Banks, and USB devices. Integrated 8mm cable lets you chain additional solar panels for faster charge times.
INFORMATION
PRODUCT TYPE
Solar Generator
UPC
847974007679
CABLE LENGTH
6ft
WEIGHT
6.85 lbs (3.1 kg)
PORTS
- Solar Port (blue, 8mm, male): 14-21.5V, up to 3.3A (50W max)
- USB-A Port: 5V, up to 2.4A (12W max)
OPERATING USAGE TEMP
32-104 F (0-40 C)
CHAINABLE
Up to 150 Watts
LIFECYCLES
500 Cycles To 80% Capacity (Discharge Rate: 0.2c, Full Charge/discharge, Temp: 25c)
WARRANTY
2 years
PRODUCT SKU
36100
PACK CAPACITY
497wh (10.8v, 46.8ah)
SIMULTANEOUS RECHARGE & DISCHARGE
Yes
PORTS
- USB port (Output): 5V, up to 2.4A (12W max), regulated
- USB-C port (Output): 5/9V, up to 3.0A (18W max), Regulated
- USB-C PD port (Input/ Output): 5-20V, up to 3.0A (60W max), Regulated
- 6mm port (Output, 6mm): 12V, up to 10A (120W max)
- 12V car port (Output): 12V, up to 10A (120W max), Regulated
- 120V AC Inverter: 120VAC 60Hz, 2.5A (300W, 1200W surge) (output, pure sine wave)
- Charging port (input, 8mm): 13-22V, up to 10A (150W max)
SHELF-LIFE
Charge Every 3-6 Months
MANAGEMENT SYSTEM
'Mppt' Charge Controller, Low Battery Protection
DIMENSIONS
- Dimensions (folded): 17 x 11.25 x 2.5 in (43.2 x 28.6 x 6.4 cm)
- Dimensions (unfolded) : 17 x 53 x 1.5 in (43.2 x 134.6 x 3.8 cm)
CHARGE TIMES
-Maximum input (180W): 3 hrs -Car charger (120W): 4.5 hrs -Wall charger (60W): 10 hrs -Wall charger (120W): 4.5 hrs Nomad 20: 30-60 Hours Nomad 50: 12-24 Hours -Boulder 50: 12-24 Hours Nomad 100: 6-12 Hours -Boulder 100 Briefcase: 6-12 Hours -Boulder 100: 6-12 Hours -Boulder 200 Briefcase: 3-6 Hours
WAYS TO CHARGE THE YETI 500X
- From The Sun : Recharge from the sun by connecting a compatible solar panel, either the foldable Nomads or mountable Boulder solar panels. The higher the watts of the panel, the faster the charging times.
- From The Wall : Plug it into the wall using the included 60W power supply for a full recharge in just 10 hours, or plug in with the Yeti X 120W Power Supply to halve that charge time. You can also use any USB-C power supply to charge the power station.
- From The Car : Plug into your vehicle's 12V outlet using the Goal Zero Yeti Lithium 12V Car Charging Cable. NOTE: Do not attempt to charge your Yeti from a 12V source using any other cable. Doing so may cause damage to the unit.
SPECIFICATION
CHARGE TIMES
- Sherpa 100AC: 3-6 Hours
- Yeti 150: 5-10 Hours
- Yeti 200X: 4-8 Hours
- Yeti 400: 12-24 Hours
- Yeti 400 Lithium: 13-26 Hours
- Yeti 500X: 12-24 Hours
YETI 500X HIGHLIGHTS
- Power A Wide Range Of Devices : Yeti 500X is equipped with four different port options - including AC, 12V, and 60W USB-C PD - to power everything from phones to portable fridges.
- High-speed Charging Solution : Equipped with the latest charging technology, including a high-speed Power Delivery port capable of charging USB-C laptops, tablets, mirrorless cameras, and phones in a fraction of the time.
- Experience Unlimited Power : Charge the Yeti 500X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home. Featured MPPT charge controller ensures you’re getting the most efficient solar charge possible.
HOW IT ALL GOES TOGETHER
Setup is quick and easy. Place the solar panels outdoors in good, direct sunlight. If you have multiple panels, use the Combiner Cables to connect them. Need extra reach? Use the optional Extension Cable to extend your range. The cables and connecters are plug-and-play. Simply match the shape of the plug to the shape of the connector. Plug directly into the input of your Yeti and enjoy endless power!
