HOME BACKUP SYSTEM 5400WH

The 1.5+ day backup system. This all-in-one bundle provides roughly 5,400 Watt Hours of power for your portable home energy needs.

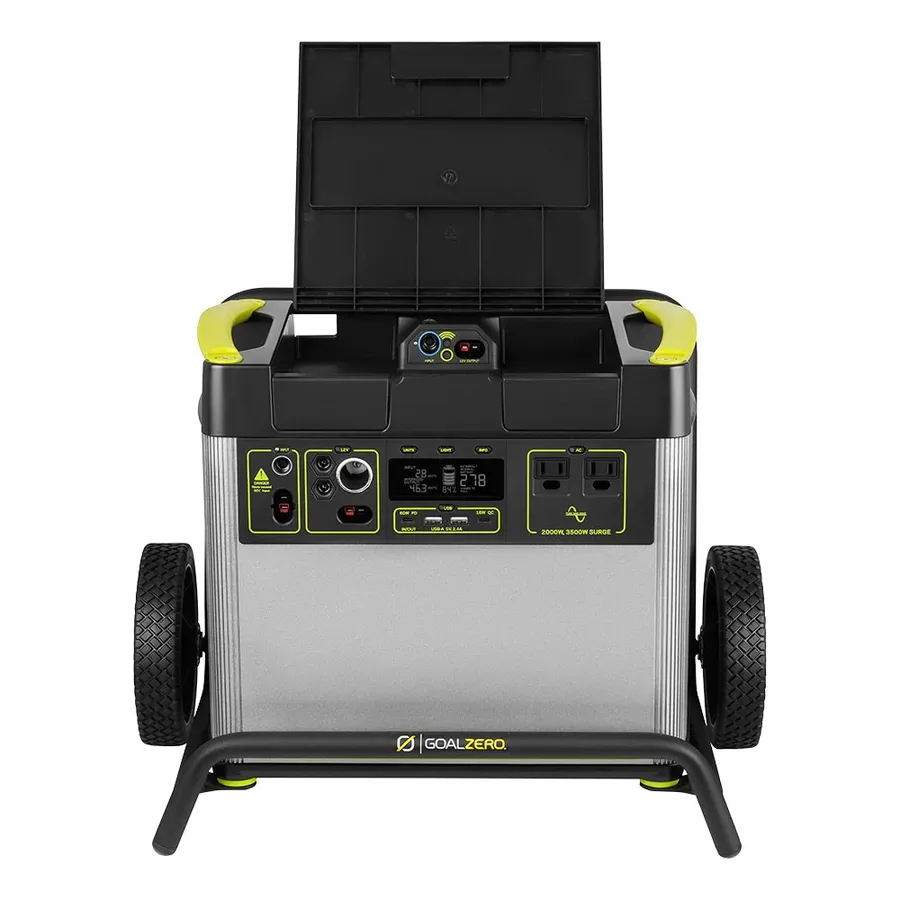

Equipped with a Yeti 3000X, Yeti Home Integration Kit transfer switch, two Yeti Tank Expansion Batteries, and the Link Expansion Module.

“If you don't feel like wheeling the Yeti around, you can integrate the Yeti 3000X directly into your home electrical system with one of their Home Power kits. When the power goes out, all you have to do is throw a switch and Yeti will power the circuit you've connected.”

Goalzero Home Backup System 5400wh

HIGHLIGHTS

GOODBYE GAS GENERATOR. HELLO YETI X.

With a lithium-ion battery at its core, the Goal Zero Yeti X equips you with safe, clean, portable power for camping, tailgating, off-grid events, workshops, and emergency home backup.

TAKE YOUR WALL OUTLET ANYWHERE

Increased 2000W AC (3500W Surge) inverter allows you to run power-hungry devices and appliances with confidence. Our new industry-leading inverter can handle surges from power tools, medical devices, and home appliances, including full-size refrigerators.

VERSATILE PORT OPTIONS

Power a wide range of devices with seven different port options including fast-charging 60W USB-C Power Delivery, multiple USB-A ports, regulated 12V, and two 120V AC ports.

EXPERIENCE UNLIMITED POWER

Charge the Yeti 1500X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home. Integrated MPPT charge controller ensures you’re getting the most efficient solar charge possible.

POWER IN THE PALM OF YOUR HAND

Monitor, control, and optimize your power usage from anywhere with Yeti App 3.0. Features remote control of power in/out, real-time power consumption notifications, and charging profiles to optimize your battery life.

INFORMATION

Goalzero Home Backup System 5400wh

SHELF-LIFE

Charge every 3-6 months

MANAGEMENT SYSTEM

MPPT charge controller

LIFECYCLES

500 Cycles to 80% capacity (Discharge rate: 1C, Full charge/discharge, Temp: 25C)

SINGLE CELL EQUIVALENT CAPACITY

842.4Ah @ 3.6V

DIMENSIONS

-15.25 x 10.23 x 13.6 in
-38.74 x 25.98 x 34.54 cm

Goalzero Home Backup System 5400wh

PORTS

- USB-A port (output): 5V, up to 2.4A (12W max), regulated
- USB-C port (output): 5 - 12V, up to 3.0A (18W max), regulated
- USB-C PD port (input / output): 5 - 20V, up to 3.0A (60W max), regulated - 6mm port (output, 6mm): 12V, up to 10A (120W max), regulated - 12V car port (output): 12V, up to 13A (160W max), regulate
2V High Power Port (output): 12V, up to 30A (360W max), regulated (front face/under lid) -120V AC Inverter: 120VAC 60Hz, 16.5A (2000W, 3500W surge) (output, pure sine wave) -Charging port (input, 8mm): 14-50V, up to 10A (150W max) (front face/under lid) -High Power charging port (input): 14-50V, up to 50A (600W max) -Expansion Module port Covered port under the lid. To be used with Goal Zero expansion modules only.

Goalzero Home Backup System 5400wh

HIK PORTS

 -Voltage: 120 Single-Phase - Frequency: 60 Hertz -Rated Watts: 1875 Watts -Rated Amps: 15A @ 120 Volts (Single Phase) -Number of Circuit Breakers: 4 -Max Generator Input: 15 Amps -Maximum Wattage: 1875 Watts -Transfer Switch Circuits: 15A 120V -Circuit Breaker Protection: Each Circuit

PACK LITHIUM CONTENT

253g

CELL CHEMISTRY

Li-ion NMC

HIK GENERAL

-P
roduct SKU: 44060 -Made: USA -Weight: 9.5 lbs (4.3 kg) -Dimensions: 7.75 x 11.25 x 4.5 -Enclosure: NEMA 1R -Conduit Length: 18 -UL Listed: Yes -Compatible with Yeti X and Yeti Lithium Power Stations 1000W and up

Goalzero Home Backup System 5400wh

PRODUCT TYPE

Home Backup System

SKU

44060

CONDUIT LENGTH

18

WEIGHT

69.78 lbs (31.65 kg)

POWER STATIONS

Compatible with Yeti X and Yeti Lithium Power Stations 1000W and up

Goalzero Home Backup System 5400wh

GOAL ZERO ECOSYSTEM

Customize your setup at home, outside, or in your vehicle with our Yeti Power Station Ecosystem. Designed to provide a diverse range of solutions for every power need, from portable power stations, solar generators, and expansion batteries. Power. Anything. Anywhere.

YETI CHARGE TIMES

 -AC Wall Charger -230W: 14 Hours -600W: 6 Hours -Solar -100W (Boulder/Nomad 100 (BC) ): 36-72 Hours -200W (Boulder (BC/Nomad) ): 18-36 Hours -400W (Boulder/Nomad 200 X 2): 9-18 Hours -600W (Boulder/Nomad 200 X 3): 6-12 Hours -800W (Boulder/Nomad 200 X 4): 6-9 Hours -1200W (Boulder/Nomad 200 X 6): 6 Hours

Goalzero Home Backup System 5400wh

PACK CAPACITY

3032Wh (10.8V, 280.8Ah)

WARRANTY

2 years

Goalzero Home Backup System 5400wh

YETI TANK BATTERY DETAILS

- Lead Acid (AGM)
- 1200Wh (12V, 100Ah)

Goalzero Home Backup System 5400wh

YETI LINK CHARGE TIMES

 -Max Input from Yeti Tank to
- Goal Zero Yeti 1000/1000X: 454-605W
- Goal Zero Yeti 1400/1500X: 454-750W
- Goal Zero Yeti 3000/3000X: 750W
- Goal Zero Yeti 6000X: 750W

YETI TANK GENERAL

- Product SKU: 23105
- Dims 15.5 x 7.5 x 10.5 in (39.37 x 19.05 x 26.67 cm)
- Weight 77.1 lbs (34.97 kg)
- Warranty: 12 Months

YETI TANK BATTERY CHARGE TIMES

Wall Charger (120W): 11hrs per tank

Goalzero Home Backup System 5400wh

YETI TANK PORTS

- Expansion port male connector (input/output) 100A Max
- Expansion port female connector (input/output) 100A Max

DETAIL

BACK UP YOUR HOME

-
Customizable, versatile energy storage system backs up four essential circuits in your home and scales to meet your specific power needs.
- Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more. Integrate directly with your home's circuits for a more seamless backup power experience.

- Integrate directly with your home's circuits for a more seamless backup power experience using the Yeti Home Integration Kit. Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more.

Goalzero Home Backup System 5400wh

YETI HOME INTEGRATION KIT HIGHLIGHTS

The Home Integration Kit (HIK) is a Reliance Pro/Tran 2 Series 15-Amp, 4-Circuit 120V Manual Transfer Switch - Customize your backup power by working with a licensed electrician and selecting up to 4 circuits from your breaker panel.

Suggested circuits include fridge/freezer, garage door, outlets in main living areas, light switches, etc.

Yeti Extension Cable includes 10ft 14AWG to connect your Yeti Portable Power Station.
