Goalzero Yeti500x + Nomad 100 Solar Generator

YETI500X + NOMAD 100 SOLAR GENERATOR

YETI500X + NOMAD 100 SOLAR GENERATOR

Compact enough for on the go, powerful enough to keep phones, tablets, and laptops charged for several days.

Goalzero Yeti500x + Nomad 100 Solar Generator
Goalzero Yeti500x + Nomad 100 Solar Generator
Goalzero Yeti500x + Nomad 100 Solar Generator

The kit pairs the Yeti 500X with our powerful Nomad 100 Panel, 12V Car Charging Cable, and added protection case.

FEATURES

YETI 500X HIGHLIGHTS

- Power A Wide Range Of Devices : Yeti 500X is equipped with four different port options - including AC, 12V, and 60W USB-C PD - to power everything from phones to portable fridges.
- High-speed charging solution : Equipped with the latest charging technology, including a high-speed Power Delivery port capable of charging USB-C laptops, tablets, mirrorless cameras, and phones in a fraction of the time.

Goalzero Yeti500x + Nomad 100 Solar Generator

- Experience unlimited power : Charge the Yeti 500X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home. Featured MPPT charge controller ensures you’re getting the most efficient solar charge possible.

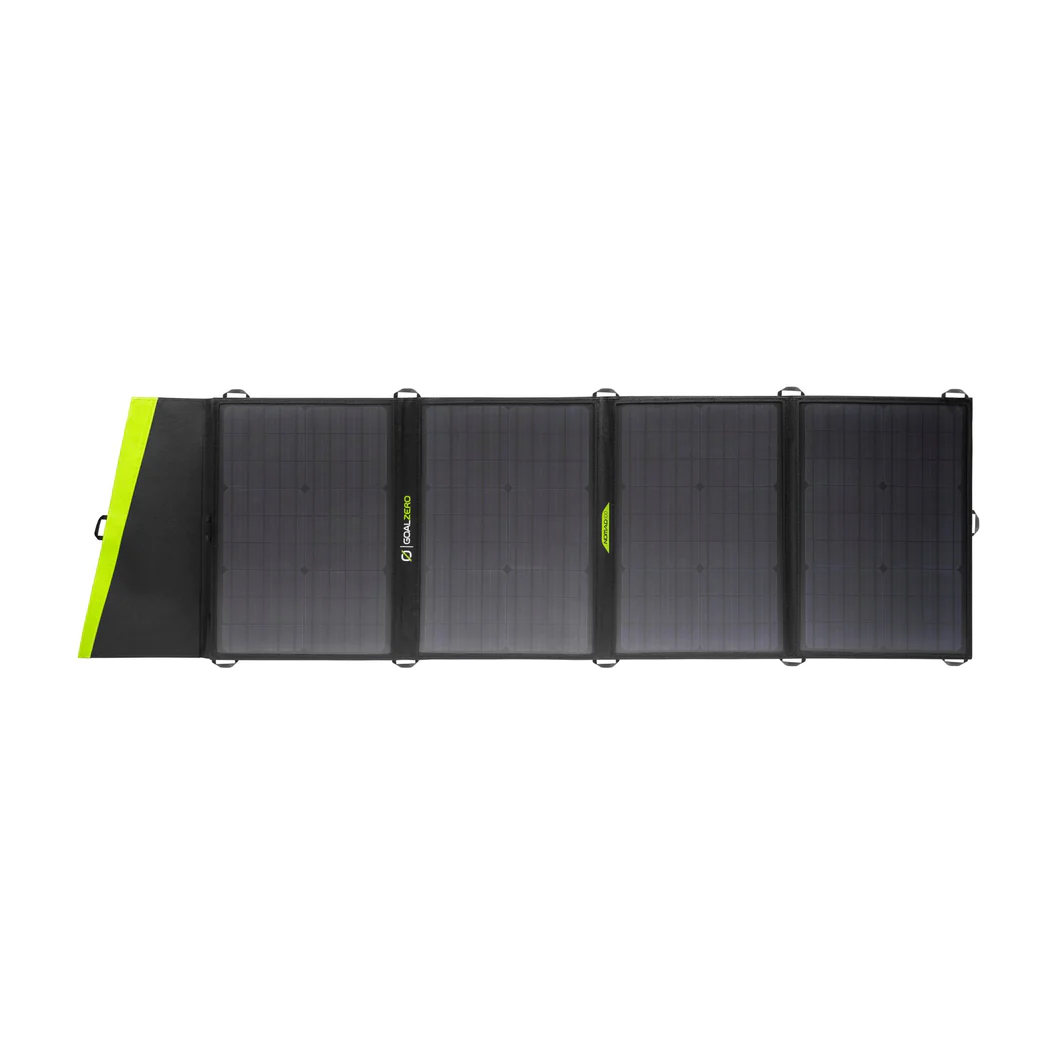

NOMAD 100 HIGHLIGHTS

- 100-Watt (14-22V) foldable and weatherproof solar panel
- Big wattage and weighs only 10 lbs
- For chaining multiple Nomad 100 solar panels together, purchase a 4X 8MM COMBINER TO HIGH POWER PORT CONNECTOR.

Goalzero Yeti500x + Nomad 100 Solar Generator

WAYS TO CHARGE THE YETI 500X

- From The Sun : Recharge from the sun by connecting a compatible solar panel, either the foldable Nomads or mountable Boulder solar panels. The higher the watts of the panel, the faster the charging times.
- From the wall : Plug it into the wall using the included 60W power supply for a full recharge in just 10 hours, or plug in with the Yeti X 120W Power Supply to halve that charge time. You can also use any USB-C power supply to charge the power station.

Goalzero Yeti500x + Nomad 100 Solar Generator

- From the car : Plug into your vehicle's 12V outlet using the Goal Zero Yeti Lithium 12V Car Charging Cable NOTE: Do not attempt to charge your Yeti from a 12V source using any other cable. Doing so may cause damage to the unit.

Goalzero Yeti500x + Nomad 100 Solar Generator

YETI 500X + NOMAD 100 SOLAR GENERATOR HIGHLIGHTS

- This solar generator can recharge from the sun in as little as 6 hours.
- Lightweight and portable, this generator is ideal for someone on the move who wants a fast charge time.
- A sustainable energy source with no noise and no fumes

Goalzero Yeti500x + Nomad 100 Solar Generator

TIPS & TRICKS FOR USING SOLAR PANELS

- The solar panel does not hold a charge - it produces power when it is exposed to sunlight.
- Place solar panels towards the sun at an angle.
- Connect High Power Power to Yeti Power Station.
- Adjust solar panel as the sun moves across the sky.

HOW IT ALL GOES TOGETHER

Setup is quick and easy. Place the solar panels outdoors in good, direct sunlight. If you have multiple panels, use the Combiner Cables to connect them. Need extra reach? Use the optional Extension Cable to extend your range. The cables and connecters are plug-and-play. Simply match the shape of the plug to the shape of the connector. Plug directly into the input of your Yeti and enjoy endless power!

Goalzero Yeti500x + Nomad 100 Solar Generator
Power Station
Goalzero Yeti500x + Nomad 100 Solar Generator
Combiner Cable
Goalzero Yeti500x + Nomad 100 Solar Generator
Solar Panel
Goalzero Yeti500x + Nomad 100 Solar Generator
Extension Cable

INFORMATION

Goalzero Yeti500x + Nomad 100 Solar Generator

BRAND

Goalzero

OPERATING USAGE TEMP

32-104 F (0-40 C)

PEODUCT TYPE

Solar Generator

CHAINABLE

No

WARRANTY

2 years

SIMULTANEOUS

Simultaneous Recharge & Discharge : Yes

Goalzero Yeti500x + Nomad 100 Solar Generator

SKU

- Power Statio : 36100
- Solar Panel : 13007
- Charging cable : 98079

WEIGHT

- Power Statio : 12.9 lbs (5.85 kg)
- Solar Panel : 10.2 lbs (4.6 kg)
- Protection Case : 2.12lbs (0.96 kg)

DIMENSIONS

- Solar Panel (unfolded) : 20.5 x 59.5 x 1 in (52 x 151.1 x 2.54 cm)
- Solar Panel (folded) : 20.5 x 15.5 x 2 in (52 x 39.37 x 5.08 cm)
- Power Statio : 7.5 x 11.25 x 5.8 in (19.05 x 28.58 x 14.73 cm)
- Charging cable : 120 x 2.5 x 1 in (304.8 x 6.35 x 2.54 cm)
- Protection Case : 12.5 x 8.5 x 8.5 in (31.75 x 21.59 x 21.59 cm)

12V CAR CHARGER PORTS

- Input : 12V Male Cigarette
- Output : 8.0mm (12V, up to 10A)

CABLE LENGTH

6ft

SOLAR PORTS

Solar Port (blue 8mm, male) : 14-22V, up to 5.56A (100 max)

BATTERY DETAILS

- Cell chemistry : Li-ion NMC
- Pack capacity : 497Wh (10.8V, 46.8Ah)
- Lifecycles : 500 Cycles to 80% capacity (Discharge rate: 0.2C, Full charge/discharge, Temp: 25C)
- Shelf-life : Charge every 3-6 months
- Management system : 'MPPT' charge controller, low battery protection

YETI 500x CHARGE TIMES

- Maximum input (180W) : 3 hrs
- Car charger (120W) : 4.5 hrs
- Wall charger (60W) : 10 hrs
- Wall charger (120W) : 4.5 hrs
- Nomad 20 : 30-60 Hours
- Nomad 50 : 12-24 Hours
- Boulder 50 : 12-24 Hours
- Nomad 100 : 6-12 Hours
- Boulder 100 Briefcase : 6-12 Hours
- Boulder 100 : 6-12 Hours
- Boulder 200 Briefcase : 3-6 Hours

SPECIFICATIONS

Goalzero Yeti500x + Nomad 100 Solar Generator

NOMAD 100 CHARGE TIMES

- Yeti 200X : 2-4 hours
- Yeti 400 : 6-12 Hours
- Yeti 400 Lithium : 7-14 Hours
- Yeti 500X : 6-12 Hours
- Yeti 1000 Lithium : 16-32 Hours
- Yeti 1400 Lithium : 22-44 Hours
- Yeti 1500X : 18-36 Hours
- Yeti 3000 Lithium : 36-72 Hours
- Yeti 3000X : 36-72 Hours

PORTS

- USB port (Output) : 5V, up to 2.4A (12W max), regulated
- USB-C port (Output) : 5/9V, up to 3.0A (18W max), Regulated
- USB-C PD port (Input/ Output) : 5-20V, up to 3.0A (60W max), Regulated
- 6mm port (Output, 6mm) : 12V, up to 10A (120W max)
- 12V car port (Output) : 12V, up to 10A (120W max), Regulated
- 120V AC Inverter : 120VAC 60Hz, 2.5A (300W, 1200W surge) (output, pure sine wave)
- Charging port (input, 8mm) : 13-22V, up to 10A (150W max)

USED WITH

Goal Zero Yeti 150, 200X, 400, 400 Lithium, 500X, 1000, 1250, 1400, 1500X, 3000, 3000X, 6000X and Sherpa 50, 100, and 100AC

IN THE BOX

- Yeti 500X Power Station
- Nomad 100 Solar Panel
- 500X Protection Case
- Yeti 12V Car Charging cable
- 60W Power Supply
