Falmec Nuvola 90 Hoods
NUVOLA 90 HOODS
NUVOLA 90
Scotch brite stainless steel (AISI 304)
- Tempered extra light painted
- Perimeter suction
- Electronic control
- LED lighting
- Remote control included
INFORMATION
PRODUCT TYPE
Hood
PRODUCTION
Made in Italy
INSTALLATION TYPE
Ceiling
DIMENSIONS
90 cm
COLLECTION
Design+
MOTOR
800 m3/h
USE
Indoor
MAXIMUM NOISE LEVEL
66 db
VOLUME
0.14 m³
FREQUENCY
50-60Hz
TYPE OF CONTROL
Electronic control
MAXIMUM CONSUMPTION
280 W
MAX. MOTOR POWER
- Slim motor 800 m³ /h : 150 W -Remote under-roof motor 950 m³ /h : 270 W
FILTER
3 x Metal l ic fi lter "Base" - 290x267 mm
MINIMUM DISTANCE
- Electric hob : 52 cm
- Gas hob : 57 cm
VOLTAGE
220-240V
GROSS WEIGHT
30 Kg
NET WEIGHT
27.2 kg
PACKAGING DIMENSIONS
- Length : 1120 mm
- Height : 190 mm
- Depth : 670 mm
MAXIMUM PRESSURE
600 Pa
ENERGY CLASS
C
EAN CODE
8034122363127
SPEED SETTINGS
4
FINISHING
- Ceiling 90 cm - LED - White : Painted white steel
- Ceiling 90 cm - LED - Inox : Scotch brite stainless steel (AISI 304)
VARIANTS
- Ceiling 90 cm - LED - White
- Ceiling 90 cm - LED - Inox
- Ceiling 90 cm - LED - Inox ( Slim motor 800 m³ /h)
LIGHTINING
Strip Led - 2700 K / 5600 K
MAXIMUM CAPACITY
540 m³ /h
ACCESSORIES
-Kacl.396 : Ø200 - flange -Kacl.931 : Filters carbon.Zeo - spare -Kacl.782#49f :Slim motor 800 m3/h -Kacl.798#41f : Remote under-roof motor 950 m3/h -Kacl.770#41f : Remote under-roof 1100 m3/h brushless -Kacl.786#41f : Outdoor extractor fan 1000 m3/h -Kacl.796#4af :Outdoor extractor fan 1500 m3/h -Kacl.797#4af : Remote under-roof motor 1300 m3/h -Kacl.928 : Filters spare -Kacl.939#bf : Ceiling re-circulation filtering kit (only for slim motor) -Kacl.953#bf : Carbon.Zeo vertical outlet ceiling filter unit kit -Kacl.398 : Ø150 - flange
DOWNLOADS
↓ Technical Sheet
↓ Installation types
↓ 3D Model 90 ceiling
↓ Installation Video - EN
↓ Instruction manual

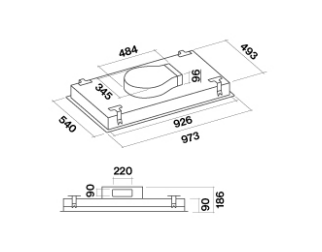

TECHNICAL DRAWING
FEATURES
-Perimeter suction -Electronic control -Metallic grease filter, removable and washable
- Remote control included
- Dynamic LED Light (2700K - 5600K) -Motor sold separately
