Kalamazoo K500HB Built-in Hybrid Fire Grill

K500HB BUILT-IN HYBRID FIRE GRILL

K500HB BUILT-IN HYBRID FIRE GRILL

Awesome firepower, custom dragon burners, enhanced heat circulation and live-fire cooking capabilities. Nothing compares to the Hybrid Fire Grill.

Kalamazoo K500HB Built-in Hybrid Fire Grill

INFORMATION

BRAND

Kalamazoo

PRODUCT TYPE

Grill

AVAILABILITY

Available in marine-grade stainless steel

USE

For outdoor use only, do not install below overhead combustible surfaces

MATERIAL

Stainless steel

WEIGHT

360 lb (163 kg)

BUILT

Built from heavy-gauge 304 stainless steel

LEGS

Stands on stainless steel leveling legs

ROTISSERIE

Rotisserie system with one infrared burner; motor mounted in cabinet

MAIN BURNERS RATING

- Liquid propane : 53.000 BTU
- Natural gas : 48.000 BTU

BULK PROPANE

1/2" male NPT connection. 10 ft. (305 cm) gas hose with quick disconnect provided. Gas service line to deliver 11 i.w.c. at grill location. See BTU information below for pipe sizing.

Kalamazoo K500HB Built-in Hybrid Fire Grill

ELECTRICAL REQUIREMENTS

120VAC/60Hz Includes 1 ft. (30.5 cm) 3-prong grounded power cord.

MAXIMUM AMP USAGE

3 amps

HANDCRAFTED

Handcrafted with pride in Kalamazoo, Michigan

Kalamazoo K500HB Built-in Hybrid Fire Grill

NATURAL GAS

1/2" male NPT connection. 10 ft. (305 cm) gas hose with quick disconnect provided. Gas service line to deliver 7 i.w.c. at grill location. See BTU information below for pipe sizing.

LIQUID PROPANE

69.500 BTU

NATURAL GAS

64.500 BTU

ROD

Heavy-duty stainless steel rod grill grates are also available for purchase separately

FEATURES

- Flip-up warming rack
- Advanced deep hopper clean-out system

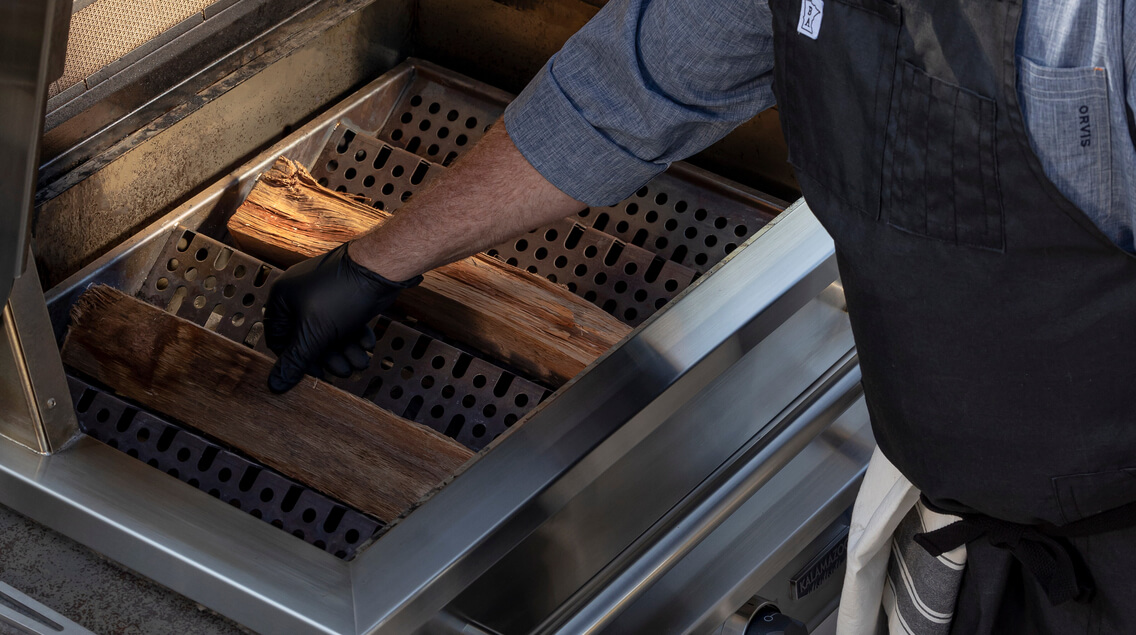

- Single Hybrid Fire Grilling drawer for wood and charcoal

LASER CUT GRILLING

Laser-cut grilling surfaces included with your choice of patterns optimized for cooking meat, fish and vegetables

Kalamazoo K500HB Built-in Hybrid Fire Grill

ELECTRONIC CONTROL

Electronic control bezels with flame sensor LED indicators

TEMPERATURE

Barbecue burner for indirect, low-temperature cooking

BURNERS

Two cast stainless steel Dragon Burners™, 26,500 BTUs each (LP)

Kalamazoo K500HB Built-in Hybrid Fire Grill

DIMENSIONS

- Width : 29.38 in (747 mm) / 28 in (712 mm
- Depth : 32 in (814 mm) / 26.50 in (674 mm)
- Height : 54.63 in (1388 mm) / 36 in (915 mm) +/- 1 ¼ in (33 mm

DEEP FIREBOX COMPARISON

- Watch the video further down this page for more information
- The key to the Hybrid Fire Grill’s versatility is the dynamic heat circulation made possible by the expanded fire box

- There is four times greater distance between the burners and the bottom of the fire box than there is in typical gas grills, creating more even heat with fewer flare-ups
