PALLAS BACK STOVE

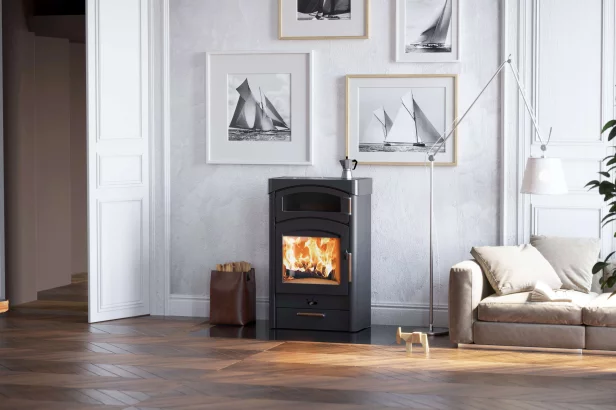

Austroflamm Pallas Back Stove

PALLAS BACK STOVE

On the heels of tradition

Fancy a romantic chimney fire, a cup of tea and perhaps something to eat as well? Pallas makes it possible! It’s not just a charming heat dispenser: with its three hotplates and, in the Pallas Back, the large additional baking compartment, the tastiest dishes can be prepared, totally without electricity! Its classic country house style design make it the perfect accompaniment for the combined kitchen and living room, second home or weekend house.

INFORMATION

BRAND

Austroflamm

PRODUCT TYPE

Stove

COLLECTION

Pallas

MATERIAL

Steel

DIMENSIONS

- Height : 1152 mm
- Width : 732 mm
- Depth :  464

COLOURS

- Sand
- Hemp
- Earth
- Fire
- Black
- Iron-Gray

- Soapstone
- Ruby Red
- Matt Black
- Smoky Quartz
- Enamel White

BALANCED FLUE

No - Dibt (german institute for structural engineering)

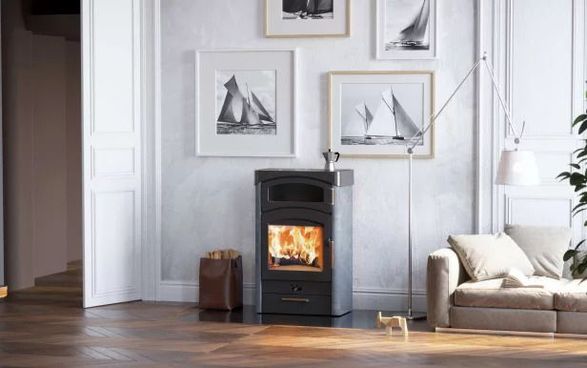

Austroflamm Pallas Back Stove

SIDE PANEL VERSION

- Ceramic
- Steel
- Soapstone

HOTPLATE

Standard

BAKING COMPARTMENT

Standard

GLASS SHAPE

Cornered

CURVED GLASS

Flat

ENERGY EFFICIENCY CLASS

A

NOMINAL HEAT EFFICIENCY

9.0 kw

HEAT OUTPUT

- Min. / max. heat output : 4.5 / 13 kw
- Nominal heat output under EN 13240 : 9 kw
- Space heating capacity (depending on the building insulation : 114 - 305 m3

Austroflamm Pallas Back Stove

DIMENSIONS (FIREBOX)

- Height : 360 mm
- Width : 537 mm
- Depth : 258 mm

DIMENSIONS (BAKING COMPARTMENT)

- Height : 160 mm
- Width : 470  mm
- Depth : 307 mm

FLUE PIPE OUTLET

150 mm

FLUE PIPE CONNECTION MIDDLE

1020 mm

FITTINGS

- Flat bed firing : Z
- XTRA heat storage technology : No
- Heat Memory System (HMS) : Z
- External air connection / balanced flue operation : Rear

SAFETY DISTANCES TO COMBUSTIBLE MATERIAL

- Front : 800 mm
- Side : 200 mm
- Rear : 200 mm

DIMENSIONS (STEEL CASING/ CERAMIC CASING/ SOAPSTONE CASING

- Height : 1152 x mm
- Width : 732 mm
- Depth : 450 mm

TECHNICAL DRAWING

Austroflamm Pallas Back Stove

RECOMMENDED FUELS

Billet Wood

DOWNLOAD

↓ Data Sheet

DATA FOR THE CHIMNEY SWEEP

- Total flue gas flow, closed : 9.2 (g/s)
- Flue gas temperature, closed : 310 (°C)
- At 0.8 times nominal heat efficiency : 10 (pa)
- Minimum feed pressure at nominal heat efficiency, closed : 12 (pa)

TESTING

- Certificate/Green flame green : 7
- Federal Emission Control Ordinance Level : 1+2

SPACE HEATING CAPACITY, AT LEAST (DEPENDING ON THE BUILDING INSULATION)

114 mm

SPACE HEATING CAPACITY, MAXIMUM (DEPENDING ON THE BUILDING INSULATION)

305 mm

WEIGHT HMS

8.5 kg

WEIGHT STM

193 kg/ 223 kg/ 319 kg

ACCESSORIES

- Wood Box
- Log Drawer
