Pitt Cooking Powerful Gas Burners
POWERFUL GAS BURNERS
POWERFUL GAS BURNERS
Powerful gas burners as an integral part of your countertop
PITT cooking is a cooking system whereby gas burners are installed within the countertop.
Thanks to the substantial distance between burners you will now always have enough space for your pots and pans. Thanks to an assortment of varying configurations there is a perfect choice for everyone. Or combine different configurations to suit your needs and desires.
INFORMATION
BRAND
Pitt Cooking
PRODUCT TYPE
Gas Burners
DETAIL
- Safe and certified
- Robust cast iron grates
- Integrated (gas) cooking system
- Substantial distance between burners
- Applicable to any favorite countertop material selected
TOP SIDE
For Top Side control the knobs are placed onto the countertop.
- Feels like silk
- Aluminum knob
- Minimalist design
- Soft touch surface
DOWNLOADS
↓ Design
↓ Mounting Instructions
FRONT SIDE
For Front Side control, the knobs are placed onto the vertical front side of the countertop or panel of kitchen cabinetry.
- Aluminum knob
- More space on the countertop
- Refined design : Optimal grip
MATERIAL
Aluminium
USE
Cooking
FROM LOW TO HIGH FLAME
Our entire assortment is founded on on three different burners: small, medium and a combined wok/simmer burner (operated by a single knob). Simmer for hours, stir fry over a high flame or quickly bring water to a boil— every cooking technique is addressed. Optimal burner performance is achieved through very cleverly designed air intake from above which provides a fast, powerful and efficient flame. Professional cooking in your kitchen at home!
MATERIAL
Light aluminum burners. Forever
a classic.
Heavy brass burners. For those who want to cook in style.
Brass burners with a black surface. Stylish and refined.
PRODUCTION
Made in Netherlands
SELECTION OF BURNERS
From low to powerful, high flame
ACCESSORIES
Stir frying as it’s meant to be
The PITT cooking wok ring is dedicated to the best authentic stir frying. The principal inspiration for its design is traditional Chinese wok cookery. Thanks to three finger-like bars the wok always remains stable. The carefully calculated height and rounding of the ring cause the precisely controlled flame to be received by the wok at just the right place. Fast and powerful cooking over a high flame. The wok ring is specifically designed to be used with the combined wok/simmer burner and is provided with every model that has a wok/simmer burner.
MEASUREMENTS
The drawings below indicate the measurements required. Important to take into account:
-Minimum counter depth: 650 mm (25 9/16 inches) -Total height of PITT module including the support joist: 170 mm (6 6/8 inches) -Distance from the upper side of the countertop to the core of the knob is set up-specific (min. 50/max 100 mm) (min. 1 15/16 inches and max. 3 15/16 inches) -The C-size is a fixed measurement
cabinetry panel
panel
VERSIONS

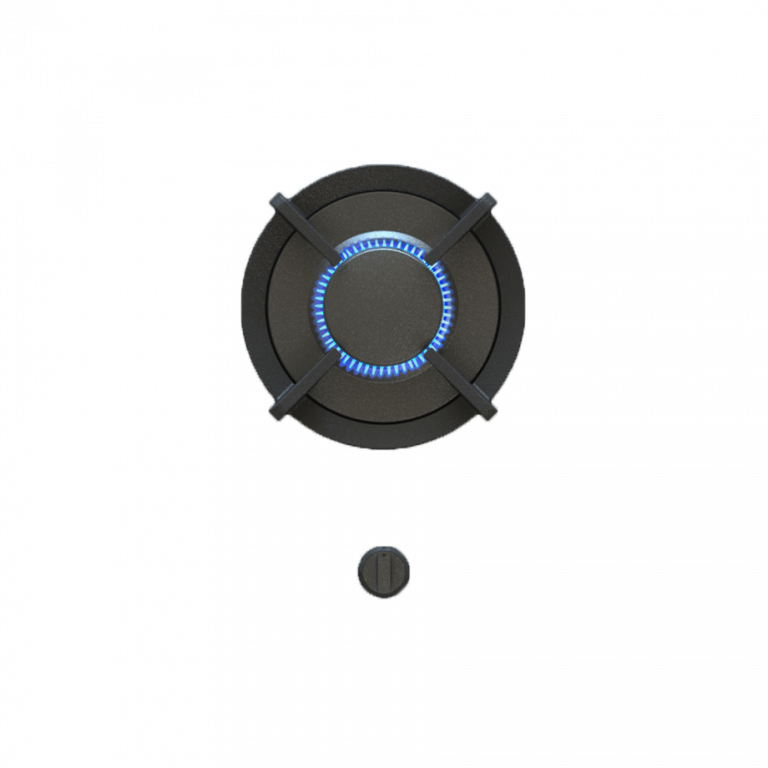

SMALL
- Automatic ignition : Yes
- Flame protection : Yes
- Diameter : ø230 mm, 9 1/16 inches
- Minimum capacity : 0.3 kW, 1024 Btu/h, 1.1 MJ
- Maximum capacity : 2 kW, 6142 Btu/h, 7.2 MJ
MEDIUM
- Automatic ignition : Yes
- Flame protection : Yes
- Diameter : ø230 mm, 9 1/16 inches
- Minimum capacity : 0.3 kW, 1024 Btu/h, 1.1 MJ
- Maximum capacity : 3 kW, 10236 Btu/h, 10.8 MJ

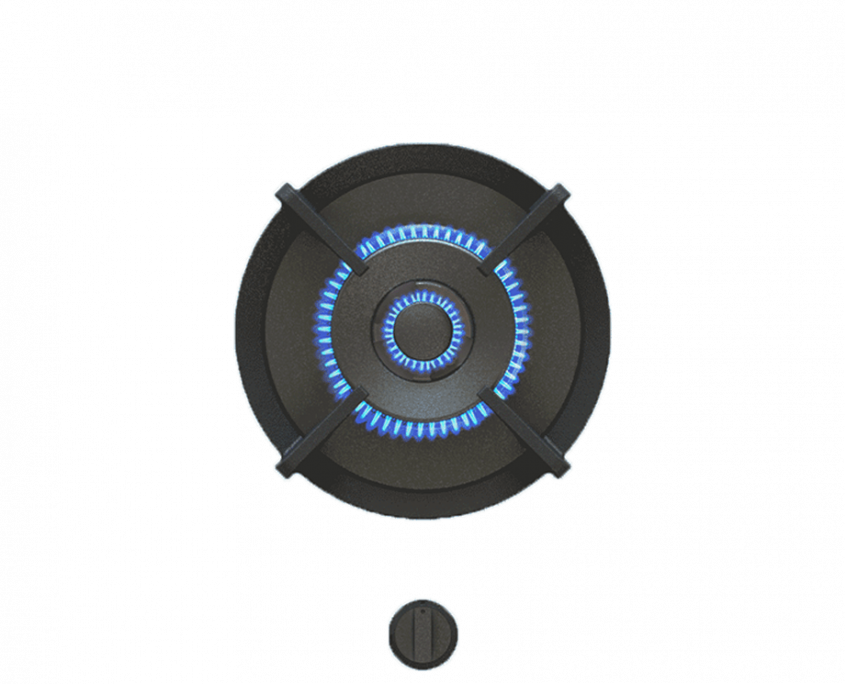

WOK/SIMMER
- Automatic ignition : Yes
- Flame protection : Yes
- Diameter : ø270 mm, 10 5/8 inches
- Minimum capacity : 0.2 kW, 682 Btu/h, 0.7 MJ
- Maximum capacity : 5 kW, 17061 Btu/h, 18 MJ
