Kalamazoogourmet Built-in Smoker Cabinet Ovens
BUILT-IN SMOKER CABINET OVENS
Kalamazoo's gravity-fed charcoal smoker delivers unprecedented heat efficiency and fool-proof temperature control. Integrates seamlessly with all Kalamazoo's cabinets for built-in installation.
information
BRAND
Kalamazoogourmet
PRODUCTION
Made in Italy
TEMPERATURE CONTROL
Computer-controlled blower system for fool-proof, reliable temperature control
USE
For outdoor use only
SURFACES
Do not use on or below combustible surfaces
DIMENSIONS
- Width : 36 in (915 mm)
- Depth : 30 in (763 mm)
- Height : 41.2 in (1046 mm) / 34.8 in (885 mm) +/- 3/4 in (20 mm)

DESIGNED
Designed to integrate with all Kalamazoo cabinets
EFFICIENT HEAT
Insulated, gravity-fed design for most efficient heat and smoke
PRODUCT TYPE
Smoker Cabinet Ovens
WEIGHT
405 lb (184 kg)

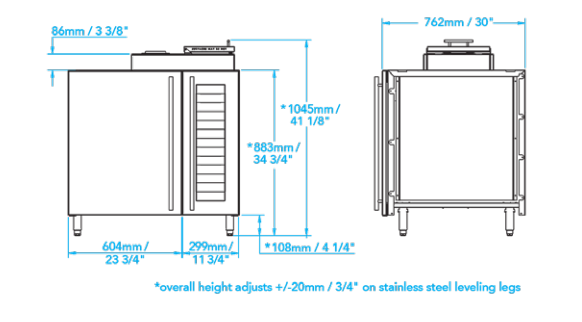

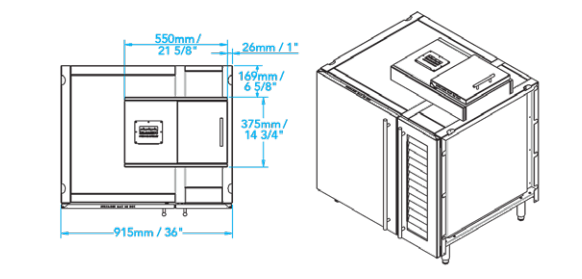

TECHNICAL DRAWING


MAXIMUM AMP USAGE
3 Amps
AVAILABLE
Available in marine-grade stainless steel
MATERIAL
Heavy duty 304 stainless steel
DOWNLOADS
↓ Specifications Sheet
↓ Use & Care Manual
FEATURES
-3 large adjustable shelves, 17-inches wide by 25-inches deep; more than enough for 3 whole packer briskets, 9 whole rib racks, or 2 large turkeys Built from durable, -Heavy duty 304 stainless steel -Handcrafted with pride in Kalamazoo, Michigan -Maintain 6-inches clearance between sides and back and any combustible surfaces -Electrical requirements 120vac/60hz includes 1 ft. (30.5 cm) 3-prong grounded power cord
DETAILS
-36-inches wide by 30-inches deep -120V AC 60HZ 3A, connect with standard outdoor electrical cord -3.86 total cubic feet inside the pit for food -Pre-production model pictured, refer to dimension drawings for production specifications
