Rotel Cd11mkii Cd Player

CD11MKII CD PLAYER

CD11MKII CD PLAYER

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players. The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs.

Rotel Cd11mkii Cd Player

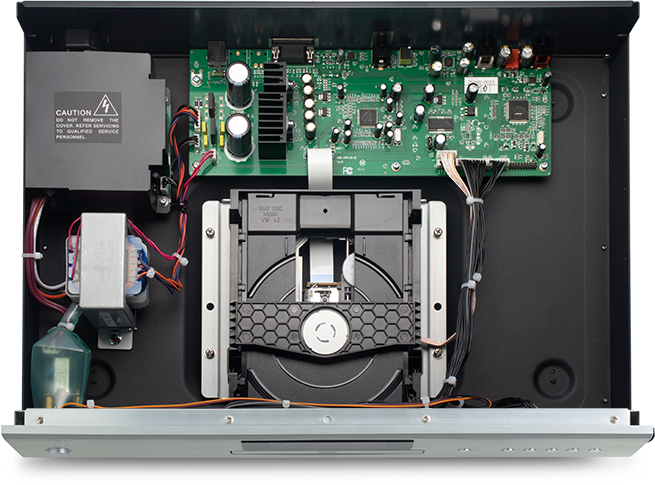

The CD 11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players. The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs.

The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.

Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits.

This sound-first design renders music on a large, open sound stage with both power and finesse. Intuitive CD control functions on the front panel and included remote control ensure simple operation.

The front panel graphic display shows playback status and disc meta data information including the title and artist. The CD11MKII is available in both black and silver colors.

INFORMATION

BRAND

Rotel

USE

Indoor

PRODUCTION

Made in Japan

VOLT

12 volt trigger input

INSTRUMENTS

- Digital to Analog Converter
- Texas Instruments premium
32-bit/384kHz

TOTAL HARMONIC DISTORTION + NOISE

0.009% @ 1kHz

Rotel Cd11mkii Cd Player

DIGITAL TO ANALOG CONVERTERS

Texas Instruments

MECHANISM

- Smooth tray loading
- CD mechanism

FRONT PANEL HEIGHT

80mm (3.15")

POWER CONSUMPTION

15W

BTU RATING

40 BTU/h

NET WEIGHT

6.2kg (13.7lbs.)

POWER REQUIREMENTS

120V, 60Hz

STANDBY POWER CONSUMPTION

<0.5W

INTERMODULATION DISTORTION

0.009% @ 1k Hz

Rotel Cd11mkii Cd Player

OUTPUTS

Outputs including RCA analogue and Coaxial digital

FREQUENCY RESPONSE

20Hz - 20kHz ±0.5dB

S/N RATIO (IHF "A" WEIGHTED)

>125dB

INCLUDES

Includes remote control

DYNAMIC RANGE

>99dB

COLORS

- Silver
- White

Rotel Cd11mkii Cd Player
Silver
Rotel Cd11mkii Cd Player
Black

CHANNEL BALANCE

±0.5dB

CHANNEL SEPARATION

>115dB @ 10kHz

DIGITAL OUTPUT

0.5 V, Peak to Peak

PHASE LINEARITY

± 0.5 degree

IMPEDANCE

- Analog Output : 470
- Load : 75Ω
