Gaggenau Vario Wine Cooler With Glass Door 400 Series
VARIO WINE COOLER 400 SERIES
VARIO WINE COOLER 400 SERIES
Fully extendable bottle trays in oak wood and solid aluminium in anthracite
information
BRAND
Gaggenau
PRODUCT TYPE
Wine Cooler
HANDLING
- Clear text display
- TFT touch display operation.
- Lockable door (with door lock RA 420 010).
ENERGY EFFICIENCY
Energy efficiency class G at a range of energy efficiency classes from A to G.
LOW-VIBRATION OPERATION
- TFT touch display
- Number of standard wine bottles : 70
CAPACITY
70 bottles (based on 0.75 l standard bottles)
CONNECTION
-Total connected load: 0.300 KW. -Connecting cable 3.0 m, pluggable.
DOWNLOADS
↓ Product Spec Sheet
↓ Installation Instruction
↓ Instruction manual
↓ EU Energy Label
↓ Supplemental
↓ CAD File
↓ EU declaration of conformity
DETAIL
Bottle trays with hidden telescopic rails Warm white and glare-free LED light spots 5 preset lighting scenarios, selectable via TFT display
TEMPERATURES
+5 °C to +20 °C
VOLUME
272 litres
NOISE LEVEL
42 dB (A) re 1 pW
ENERGY CONSUMPTION
145 kWh/year
LED LIGHT
-5 different lighting scenarios can be selected for individual wine presentation. -2 brilliant LED light spots with warm white, glare-free light (3500 K) in each climate zone.
OPENING DOOR OPTIONS
-Push-to-open function for integration into handleless furniture front. -Pull-to-open function to facilitate opening the door using a handle
SELECTED DIGITAL SERVICES (HOME CONNECT)
-Remote control and monitoring. -Remote diagnostics. -Light scenarios. -Home network integration for digital services (Home Connect) wireless via WiFi. -The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country.
DIMENSIONS
212.5 x 45.1 cm
MATERIAL
- Steel
- Oak Wood
- Aluminium
PLANNING NOTES
- Flat hinge.
- Door hinge right, reversible.
- Max. door panel weight 76 kg.
- Door opening angle of 115°, fixable at 90°.
- No transport/operation above 2000 m sea level.
-The mains socket needs to be planned outside the built-in niche.

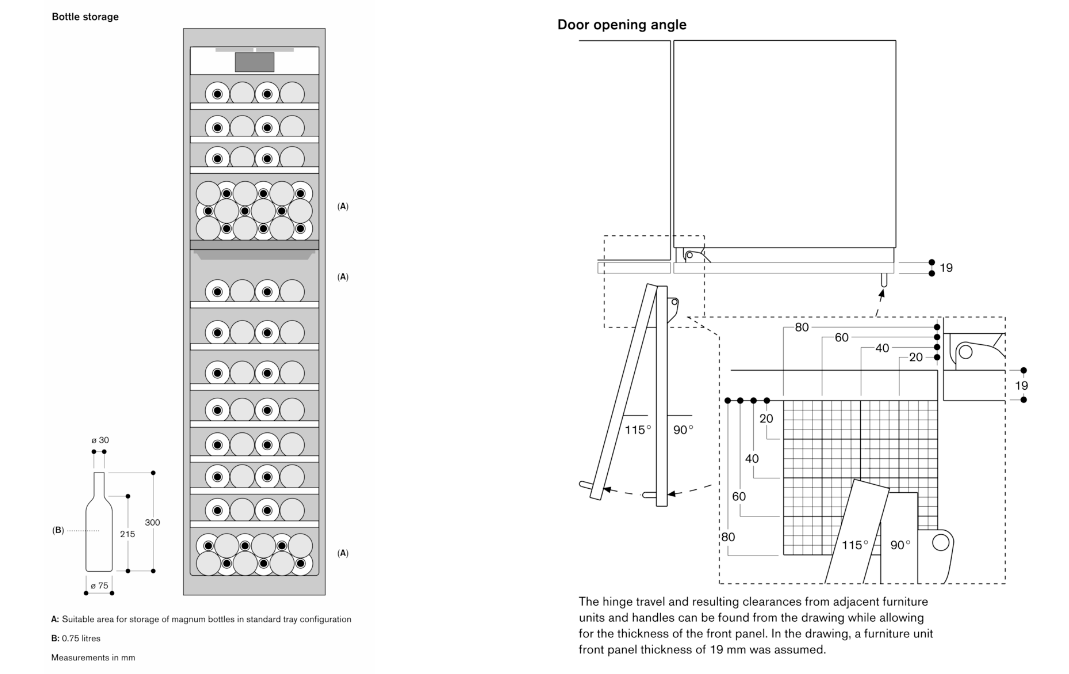

BOTTLE TRAYS
-12 bottle trays -10 fully extendable trays -3 suitable for storage of Magnum bottles. -Flexible interior configuration possible by adding or removing fully extendable bottle trays. -Storage of up to 6 magnum bottles with standard tray configuration (12 bottle trays). Space for max. 13 bottle trays.
TECHNICAL FEATURES
- UV-protection.
- Dynamic cold air distribution.
- Cushioned door closing system.
- Open-door and malfunction alarm.
- Activated charcoal air filter.
- Rest mode certified by Star-K.
- Automatic defrosting with defrost water evaporation.
- When rest mode is active, the appliance can only be opened using a handle.

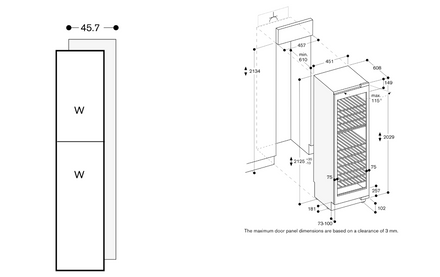

TECHNICAL DRAWING
