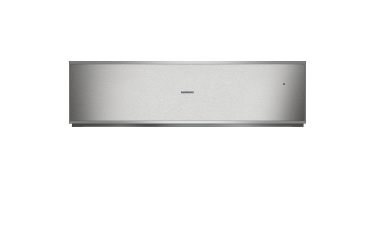

Gaggenau Warming Drawer 400 Series 76 x 21 cm
WARMING DRAWER 400 SERIES 76 X 21 CM
WARMING DRAWER 400 SERIES 76 X 21 CM
Stainless Steel Behind Glass
Hygienic stainless steel interior with glass bottom
Also for preparing and cooking meals, and for keeping meals warm
information
BRAND
Gaggenau
TOTAL CONNECTED LOAD
0.82 KW
HANDLING
- Rotary knob operation.
- Recessed grip at the front bottom of the drawer.
VOLUME CAPACITY
Dinner service for 10 people including ø 24 cm plates and soup bowls, additional bowls and a serving dish depending on size.
HIGHLIGHTS
-Handleless drawer -Bright interior light -Cushioned closing system -4 power levels
-Stainless steel interior with glass bottom
PRODUCT TYPE
Warming Drawer
MATERIAL
-Glass -Stainless Steel
NET VOLUME
38 litres
MAX. LOAD
25 kg
DIMENSIONS
Width : 606 mm
Height : 132 mm
Depth : 480 mm
DOWNLOADS
↓ Product Spec Sheet
↓ Installation Instruction
↓ Instruction manual
↓ CAD Files
↓ Manuals and Documents
FEATURES
Heating under glass bottom for easy cleaning. Fan for even heat distribution for fast warming ovenware. Status display, visible in the glass front. Glass bottom made of safety glass.
CONNECTION
Connection cable 1.5 m, pluggable.
TEMPERATURE
Temperature range 40 °c to 80 °c (glass surface)
PLANNING NOTES
-The panel surface of the appliance extends 47 mm from the furniture cavity. -Installation of BO/BS above WS with dimensionally stable intermediate shelf. -Installation of BS above WS in 66,5 cm niche with intermediate floor (gap of 7 mm between WS and BS). -The socket can be planned behind the appliance.
HEATING METHODS
-Defrosting of meals/proving of yeast dough. -Preheating of small beverage containers.
-Keeping meals warm/slow cooking meals. -Warming ovenware.
TECHNICAL DRAWING
