Next-Generation 12-inch R-Series Alpine Halo Preloaded Subwoofer Enclosure with ProLink™

Groundbreaking Alpine Halo design with next-generation R-Series Subwoofers for more accurate and authoritative bass.

FEATURES

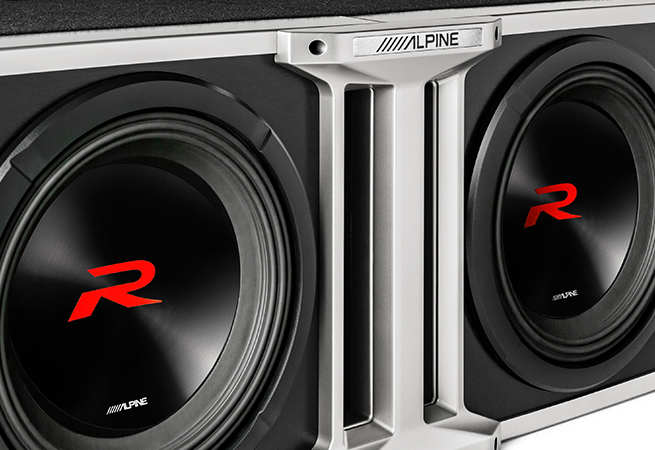

UNIQUE PROLINK™ DESIGN

Alpine’s unique ProLink™ technology was designed with the sound system builder in mind. ProLink™ allows more flexibility in both power and price to start with a single subwoofer enclosure and add an additional subwoofer using a Linking Kit (sold separately) to link two enclosures together to create a dual system when more bass is desired.

Alpine R2-sb12v Subwoofer Speacker

ALPINE HALO DESIGN

The enclosures share the premium, unmistakable design of the Alpine Halo Family. The enclosures pull design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front baffle for a matching system aesthetic. Built with sturdy, 3/4” MDF construction and covered in a premium black carpet, these enclosures give the impression of a custom look, without the custom work.

Alpine R2-sb12v Subwoofer Speacker

ADDITIONAL RELIABILITY

A new Polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has a higher heat reliability that ensures non-stop bass performance.

Alpine R2-sb12v Subwoofer Speacker
Alpine R2-sb12v Subwoofer Speacker

DEEPER BASS OUTPUT

The enclosures come preloaded with the 2nd-Gen R-Series Subwoofers with larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.

Alpine R2-sb12v Subwoofer Speacker

OPTIMIZED SOUND PERFORMANCE

The ported enclosures feature an optimized vent and rounded internal port edges that maximize the output performance of the subwoofer, for deeper, reliable bass. Each enclosure is also wired for optimized performance with Alpine’s R-Series R-A75M Mono Power Amplifier.

Alpine R2-sb12v Subwoofer Speacker

INCREASED ACCURACY

The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool, which also contributes to increased output from the subwoofers. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.

INFORMATION

DIMENSIONS

- Width : 17”
- Height : 4.625”
- Depth : 15”

Alpine R2-sb12v Subwoofer Speacker

SENSITIVITY (1W/1M)

85DB

VOICE COIL

65.5mm

THREADED

Threaded subwoofer mounting inserts (for reversible subwoofer orientation)

MATERIALS

Brushed aluminum finished metallic front baffle

Alpine R2-sb12v Subwoofer Speacker

X-MAX

20mm

MAGNET WEIGHT

144oz

Alpine R2-sb12v Subwoofer Speacker

SPEAKER

12 gauge ofc speaker box wire

COMPLIANT

CTA-2031 Compliant

BRAND

Alpine

POWER HANDLING

2250w Peak Power Handling

RMS

750W

FREQUENCY RESPONSE

24HZ-200HZ

VOICE

Dual 4ω voice coils wired in parallel for a 2ω load (compatible with r-a75m)

Alpine R2-sb12v Subwoofer Speacker

SIZE

12”

WEIGHT

50 lbs

IN THE BOX

- Vented Cabinet with preloaded R2-W12D4 10” R-Series subwoofer -Warranty Information -Online product registration information

POWER HANDLING

750W RMS / 2250W Peak

MAGNET WEIGHT

144 oz

FREQUENCY RESPONSE

24Hz - 200Hz

POWER RANGE

300W - 750W RMS

GENERAL SPECS

-Voice Coil Diameter : 65.5 mm (2.6”)
-Linear Excursion (Xmax ) : 20 mm

FEATURES

- Groundbreaking Alpine Halo Design
- ProLink™ ported enclosure design
- Polypropylene/Ceramic Composite Dust Cap
- Kevlar Reinforced Pulp Cone High-Performance subwoofers
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Large Double-Stacked Magnets
- CARB compliant 3/4-inch MDF construction
- Premium black carpet
- Silver Alpine embossed side logo badge

THIELE-SMALL PARAMETERS

- Sensitivity (1W/1m) : 85 dB
- DC Resistance (Re ) : 1.9∆ + 1.9∆
- Free Air Resonance (Fs ) : 29 Hz
- Equivalent Stiffness : 36.9 L
-  Mechanical Q (Qms) : 6.32
- Electrical Q (Qes) : 0.44
- Total Q (Qts) : 0.41
- Cone Area (Sd) : 479 cm2
- Linear Excursion (Xmax) : 20 mm
- Mechanical Travel (Xmech) : 72
