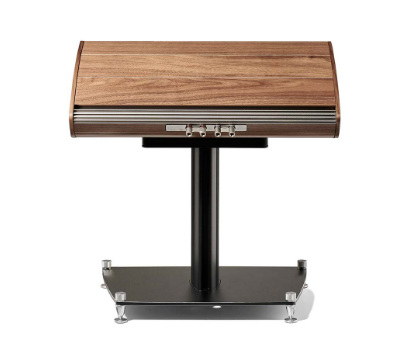

Sonus Faber Olympica Nova Ci Sound Speaker
OLYMPICA NOVA CI SOUND SPEAKER
OLYMPICA NOVA CI SOUND SPEAKER
Compact and Performing
The most compact option for the center channel.
It provides superior dialogue clarity for your cinema experience
Olympica Nova I is the bookshelf model of the line wonderfully finished in its clean design, designed for use on a bookshelf or stand.
FEATURES
CROSSOVER
The crossover network implements Paracross Topology™, making the crossover less sensitive to radio-frequency interference, improving transient response and lowering noise floor. The filtering topology features new exclusive Clarity Cap capacitors, customized for Sonus faber.
WOOD
Just like the rest of the cabinet, the front baffle is made in the walnut or wengè hand-finished natural wood. Our designers wished to pay homage to the most representative material of Sonus faber, making it even more of a standard-bearer.
STRUCTURAL RIGIDITY
The entire structure of the acoustic enclosure has been redesigned: similar to the Homage Tradition and Reference Collections, the walls are made with eight layers of bended wood, providing the cabinet with extreme rigidity.
NATURAL LEATHER
The natural leather embellishes the tweeter and the pair of midwoofers. Genuine Italian leather that, as per our brand’s tradition, is applied by hand in the production department in Vicenza.
REFLEX PORT
The solid piece of extruded aluminum that complete the Stealth Ultraflex™ system, an extremely low-turbulence porting system, is inherited from Homage Tradition models. Favoring the profile of sea waves, the structure facilitates airflow through the duct while controlling its speed and reducing the distortion-causing turbulence.
MIDWOOFER
It shares its technical characteristics with the bigger siblings’ midrange. As a matter of fact, it is the same speaker but with two main differences.
The fabric hand coated dust-cap, which is implemented to maximize the diaphragm’s emitting surface and therefore allowing for deeper low frequencies extension while, at the same time, perfectly blending with the tweeter from the tonal balance standpoint. The additional winding of the voice-coil improves the driver’s excursion allowing for a much longer throw.
TWEETER
The 28 mm silk soft dome tweeter features the DAD™ technology (Damped Apex Dome™) that enhances the smoothness and extension in the high frequency by applying local dampening to the apex typically responsible for anti-phase behavior of soft dome diaphragms.
The DAD™ structure has been totally redesigned; a solid piece of aluminum die-cast includes both arch and ring on the dome to increase the strength and accuracy of the system.
INFORMATION
BRAND
Sonus Faber
COLLECTION
Aster
PRODUCTION
Made in Italy
PRODUCT TYPE
Speaker
DIMENSIONS (MM)
- Width : 616 mm (24.2 in)
- Depth : 397.8 mm (15.6 in)
- Height : 241.6 (688.6 stand included) mm 9.5 in (27.1 in)
INSPIRED BY
Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure. No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.
SUGGESTED AMPLIFIER POWER OUTPUT
35 W – 25 W, without clipping.
SENSITIVITY 2.83 VRMS@1M
90 dB SPL
NOMINAL IMPEDANCE
4 ohm
NET WEIGHT
- 18 kg (26 Kg stand included)
- 39.6 lb (57.2 lb stand included)
SYSTEM
2 way, full para-aperiodic vented box “Stealth Ultraflex”, stand mount loudspeaker system.
LOUDSPEAKERS
-Tw : H28 XTR3. Neodymium “cup design” motor system with DAD™, Ø 28 mm -Mw : 2 x MW15 XTR2-08, CCAW wire on a “eddy current free” voice coil, Ø 150 mm
CROSSOVER
1.550 Hz
FREQUENCY RESPONSE
45 Hz – 35.000 Hz
ORGANIC SHAPE
The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica.The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room.
ESSENCE OF A BRAND
Since 1983, many moments have marked the history of Sonus faber; the launch of the Olympica Collection 6 years ago is one of them. One of the first lines presented as a complete family of products, but above all, the very first one to feature original drivers, entirely designed in Sonus faber. Olympica Nova is the second generation of the iconic family of 2013, improved in its form and substance, imbued with the timeless values that inspired us in creating the original line. The result is a new Collection that embraces the most advanced technologies that already enhance our most prestigious creations.
COLORS
- Walnut
- Wenge
- Black
