K-array Vyper-kv102 Ii loudspeaker

VYPER-KV102 II LOUDSPEAKER

K-array Vyper-kv102 Ii  loudspeaker

VYPER-KV102 II LOUDSPEAKER

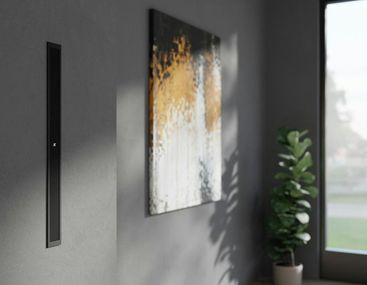

The Vyper-KV102 II is an ultra-flat passive loudspeaker comprised of sixteen 1” neodymium magnet transducers each, housed in an elegant yet sturdy aluminum chassis, with a new frameless chassis designed for very elegant discreet installations, perfect for a clean bracketless application on any flat surface.

The sixteen closely-spaced cone drivers provide true line array characteristics: phase coherence, low distortion and focused listening in both the near field and at a distance from the speaker.

K-array Vyper-kv102 Ii  loudspeaker

Two different values of impedance (8Ω – 32Ω) allow to connect up to 8x Vyper-KV102 II loudspeakers at 32Ω impedance to the same 4Ω amplifier output channel, which eliminates the need for 70V lines for wide distributed installed systems where pristine sound, intelligibility and elegance are mandatory.

INFORMATION

BRAND

K-array

WEIGHT

1,8 kg (3.96 lb)

MATERIAL

Aluminum

TYPE

Line array

FINISHES

- 24K Gold
- Polished

DIMENSIONS


- Height : 40 mm (1.6 in)
- Width : 1000 mm ( 39.3 in)
- Length : 22 mm (0.9 in)

K-array Vyper-kv102 Ii  loudspeaker

RATED POWER

300 W

FREQUENCY RESPONSE

150 Hz - 18 kHz (-6 dB) (1)

MAX SPL

120 dB peak(2)

PRODUCT TYPE

Loudspeaker

TRANSDUCERS

16x 1” Neodymium magnet woofers

DETAILS

All Vyper-KV102 II components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.

K-array Vyper-kv102 Ii  loudspeaker

CONNECTORS

2PIN euroblock connector (included)

NOMINAL IMPEDANCE

8 Ω - 32 Ω

COVERAGE

V. 7° | H. 140°

IP RATING

IP65

PRODUCTION

Made In Italy

COLORS

- Gold
- Polished Steel
- Kv102 Ii Black Model
- KV102W II white model
- KV102X customizable RAL color and finish (box + grille)
- KV102M II, KV102MW II, KV102MX II (only RAL colors)

K-array Vyper-kv102 Ii  loudspeaker
Gold
K-array Vyper-kv102 Ii  loudspeaker
Polished Steel
K-array Vyper-kv102 Ii  loudspeaker
Black
K-array Vyper-kv102 Ii  loudspeaker
White
