Netgear Orbi 750 Series Tri-band Wifi 6 Mesh System
ORBI 750 SERIES TRI-BAND WIFI 6 MESH SYSTEM
ORBI 750 SERIES TRI-BAND WIFI 6 MESH SYSTEM4.2GBPS, ROUTER + 2 SATELLITES
AX4200 WiFi Mesh System (RBK753)
The complete mesh WiFi solution for your smart home. Cover up to 7,500 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 4.2Gbps for over 40 devices. Stream, browse, and work uninterrupted in every room of your home. Keep your family and your connected devices safe from online threats with 1 year of NETGEAR ArmorTM all-in-one internet security.
FEATURES
UNSTOPPABLE STREAMING
Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.
ENGINEERED FOR BLAZING FAST WIFI
Orbi is engineered for more efficient data transmission through our exclusive Tri-Band Mesh technology. The result is faster WiFi performance that doesn't degrade across the house.
THE BEST COVERAGE.PERIOD.

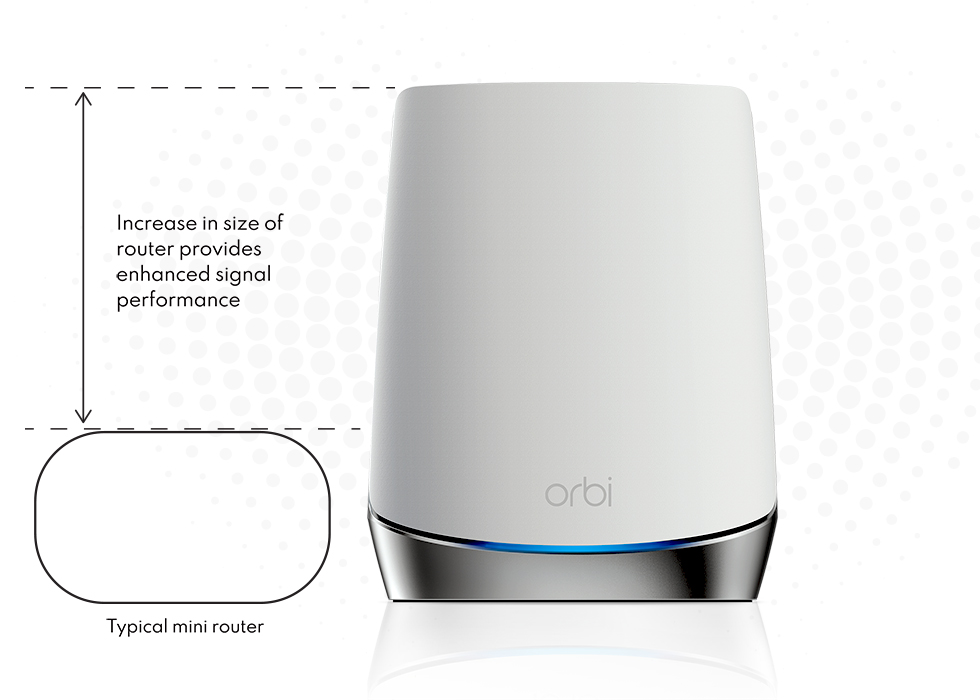

Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.
ESSENTIAL ALL-IN-ONE INTERNET SECURITY
You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.
REST EASY, KNOWING YOU’RE COVERED
NETGEAR ProSupport extends coverage beyond our standard 90-day tech support and limited 1-year warranty, giving you VIP coverage for any and every possible scenario
MORE OF EVERYTHING, EVERYWHERE
-More Coverage : Choose 5,000, 7,500, 10,000 or 12,500 square feet of always-strong WiFi throughout your home
-More Devices : Stream, game and video call on up to 40 connected devices simultaneously — with zero buffering
-More Speed : Stream multiple 8K/4K videos at up to 4.2Gbps, all at the same time with WiFi 6, the fastest WiFi ever
INFORMATION
CONNECTED KIDS ARE PROTECTED TOO
Easily manage kids’ time and accessibility online across all connected devices using Smart Parental Control
IN THE BOX
- One (1) Orbi Router (RBR750)
- Two (2) Orbi Satellites (RBS750)
- One (1) 2m Ethernet cable
- 3 12V/2.5A power adapters
- Quick start guide
BRAND
Netgear
PRODUCT TYPE
Router + 2 Satellites
ORBI SATELLITE (AX4200)
Six (6) high performance internal antennas with high-powered amplifiers
EASY SETUP
- Download the Orbi app : and follow instructions.
- Connect Orbi Router to : your modem and power.
- Place and power Orbi Satellite in another part of your home.
WEIGHT
- Orbi Router (AX4200) : 1.9lb
- Orbi Satellite (AX4200) : 1.9lb
CODE
RBK753
SERIES
Orbi 750
TAP. MANAGE.CONTROL.
Orbi App
Just tap to manage your network, set up guest WiFi access, monitor device and data usage run speed tests, and more.
WIFI COVERAGE
7,500 sq. ft.
DIMENSIONS
- Orbi Router (AX4200) : 9.1 x 7.2 x 2.8in each
- Orbi Satellite (AX4200) : 9.1 x 7.2 x 2.8in each
DETAILS
The orbi app makes it easy to set up, monitor, and protect your household
Netgear armor and smart parental controls keep your family safe online
SATELLITE
- Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
- MU-MIMO : MU-MIMO capable for simultaneous data streaming to multiple devices
- AX4200 Tri-Band WiFi : 2.4GHz (600Mbps†) + 5GHz (1200Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
- Ports : Two (2) LAN Gigabit Ethernet ports (each)
TECHNICAL SPECIFICATIONS
ROUTER
-Orbi Router (AX4200) : Six (6) high performance internal antennas with high-powered amplifiers
-Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands. MU-MIMO capable for simultaneous data streaming to multiple devices.
-Processor : Powerful Quad-Core 1.4GHz processor
-AX4200 Tri-Band WiFi : 2.4GHz (600Mbps†) + 5GHz (1200Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
-Ports : One (1) Gigabit WAN port and three (3) LAN Gigabit Ethernet ports
-Memory : Router: 512MB NAND Flash and 1GB RAM
-Works with Amazon Alex and the Google Assistant : Yes
-Security : Comprehensive anti-virus & data theft protection for your PC, Mac® and mobile devices with NETGEAR Armor™. Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK). Guest WiFi Network is easy to setup separate & secure Internet access for guests
FDETAILS
SATELLITE CONSIDERATIONS
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.
ORBI PLACEMENT
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
HOME SHAPE
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
COVERAGE AREA
Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
CONSTRUCTION MATERIALS
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
WIRED CONNECTIONS
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
