Alpesinox GA 20/55-A Hood

GA 20/55-A HOOD

Alpesinox  GA 20/55-A Hood

GA 20/55-A HOOD

The extractor unit can be installed alone or be put inside a kitchen cabinet or hood. The hood and its components are made of AISI 304 stainless steel with silver satin finish.

Alpesinox  GA 20/55-A Hood

It’s equipped with two extractor powered exhaust fans for a total of 800 mc/h and requires a Ø 15 cm hole. Max absorbed power 0,26 Kw.

Alpesinox  GA 20/55-A Hood

On the control panel there are the knob for starting up the hood and selecting the 4 extraction speeds and the knob for turning on the light.

INFORMATION

Alpesinox  GA 20/55-A Hood

BRAND

Alpesinox

PRODUCT TYPE

Hood

PRODUCTION

Made in Italy

MATERIAL

Stainless Steel

USE

Cooking

MAX ABSORBED POWER

0.26  Kw

DIMENSIONS

- Width : 55 cm
- Depth : 20 cm
- Height of extractor unit  : 30 cm
- Height of hood with drainpipe : 47.7 cm

Alpesinox  GA 20/55-A Hood

LIGHTING LAMP

The fluorescent lamp consumes 80% less energy and last 8 times more than normal incandescent lamps.

LAMP VOLTAGE

230 V

WATTAGE

36 W

CLEAN

Easily Clean

EXHAUST FAN

Two

HOLE DIAMETER

15 cm

Alpesinox  GA 20/55-A Hood

FINISH

Silver Satin Finish

Alpesinox  GA 20/55-A Hood

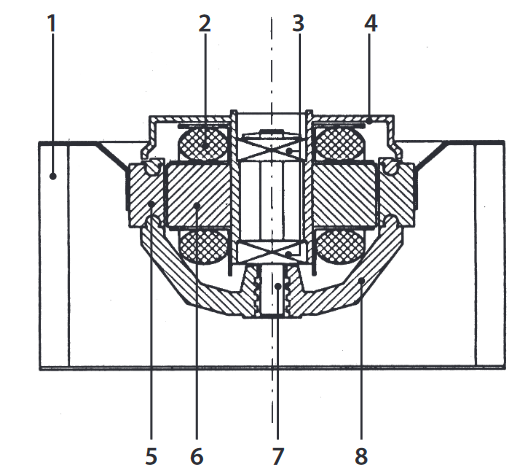

POWERED EXHAUST FAN WITH ROTATING STATOR

-I
mpeller with high efficiency blades -Winding with enamelled wire treated with hot bi-component impregnation for resistance against high humidity percentage -Roller bearings long life guaranteed -Die-casted aluminium stator -Lamellar rotor pack -Lamellar stator pack. The large diameter of the magnetic gap allows a high output which results in low inputs -Steel shaf -Die-casted aluminium rotor

LIGHT TONE

84 extra white

IRC

86

ENERGY CONSUMES

80% less energy

Alpesinox  GA 20/55-A Hood

WARRANTY

-All ALPES-INOX srl products are covered by European warranty of 24 months for conformity defects, in accordance with Italian Legislative Decree no. 24 of 2 February, 2002. -For purchases made on the website www.alpesinox.com only, ALPES-INOX srl offers a free of charge extended warranty of two more years on all the products of the “Today’s Tools” collection, and five more years on the products of the “Free In The Kitchen” collection. -ALPES-INOX srl does not sell second-hand or irregular products, products with material or workmanship defects, or products of a quality lower than the standards offered on the market. The essential characteristics of the products can be found in each product data sheet. -Any breaks or manufacturing defects notified within 24 months from the date of purchase and attributable to the company, after careful inspection by our technicians, will give the right to free repair at the expense of the supplier within a maximum period of 30 (thirty) days from the date of inspection and check (for repairs more expensive than the full product replacement, the supply of a replacement product will also be considered). All defects due to accidents, misuse, alterations or unauthorised repairs are excluded from the warranty.
