JVC KS-DR3002 Amplifier

KS-DR3002 AMPLIFIER

JVC KS-DR3002 Amplifier

KS-DR3002 AMPLIFIER

2-channel Power Amplifier

DR Series amplifiers feature speaker level inputs with Auto Turn-on function. Installation is possible without having to detach the receiver.

INFORMATION

BRAND

JVC

PRODUCT TYPE

Amplifier

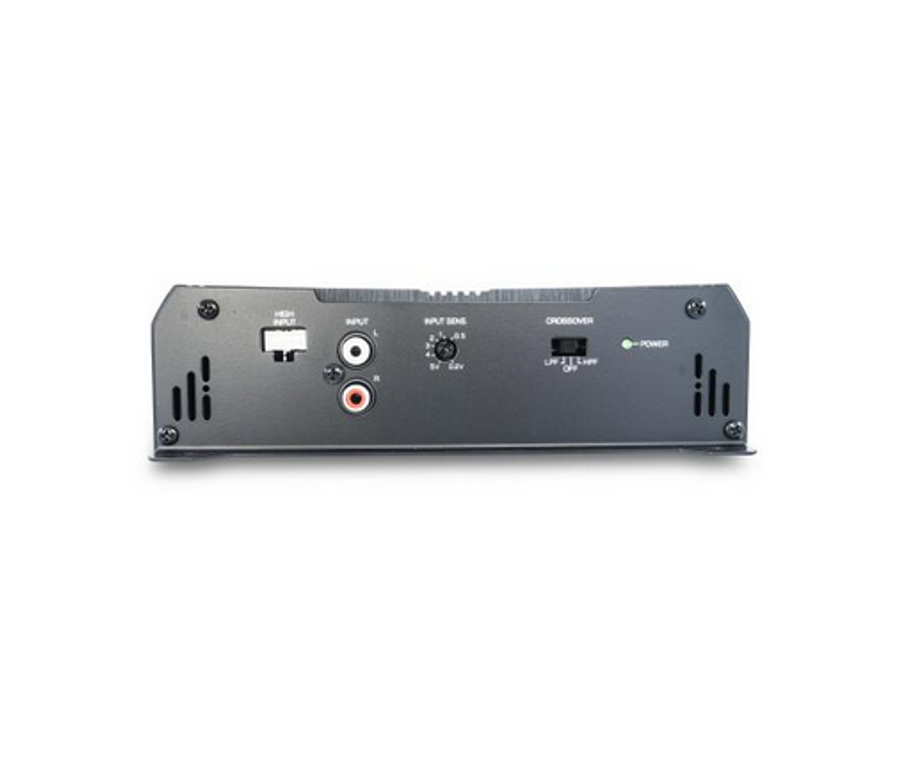

INPUT

Easy upgradability is ensured with signal sensing turn-on function and abundant speaker inputs.

JVC KS-DR3002 Amplifier

PROTECTION CIRCUITRY

Yes (Thermal / Short Circuit / Overload / DC Offset)

FREQUENCY RESPONSE

5 - 50.000Hz (+0, -3dB)

TOTAL HAMONIC DISTORTION

< 0.04%

SIGNAL-TO-NOISE RATIO

> 80dB (reference: 1W into 4 ohms), CEA-2006 Compliant

JVC KS-DR3002 Amplifier

RMS POWER OUTPUT

180W x 1 (1.000Hz) (Bridged 4 ohm) [ 1% THD 14.4V]

HPF

120Hz (12dB)

LPF

80Hz (12dB)

HIGH LEVEL INPUT

Yes

MAXIMUM POWER OUTPUT

400W

CLASS

Class-AB

RCA INPUT

L/R

JVC KS-DR3002 Amplifier

TOROIDAL TRANSFORMER

Stable power supply is assured thanks to a large-size toroidal transformer. Its high winding density and low flux leakage improves conversion efficiency of the power. The result is natural and powerful music playback throughout the volume range.

INPUT SENSITIVITY

0.2 - 15V

ANTI-POP CIRCUIT

Yes

DIMENSIONS

- Height : 52 cm
- Width : 194 cm
- Depth : 185 cm

JVC KS-DR3002 Amplifier

SPEAKER-LEVEL INPUTS FOR EASY INSTALLATION

DR Series amplifiers feature speaker level inputs with Auto Turn-on function. Installation is possible without having to detach the receiver.

RMS POWER OUTPUT (4 OHM)

65W x 2 (20 - 20.000Hz) [ 1% THD 14.4V]

RMS POWER OUTPUT (2 OHM)

90W x 2 (20 - 20.000Hz) [ 1% THD 14.4V]

 OUTPUT

High power output devices the speaker to deliver dramatically high-quality sound.
