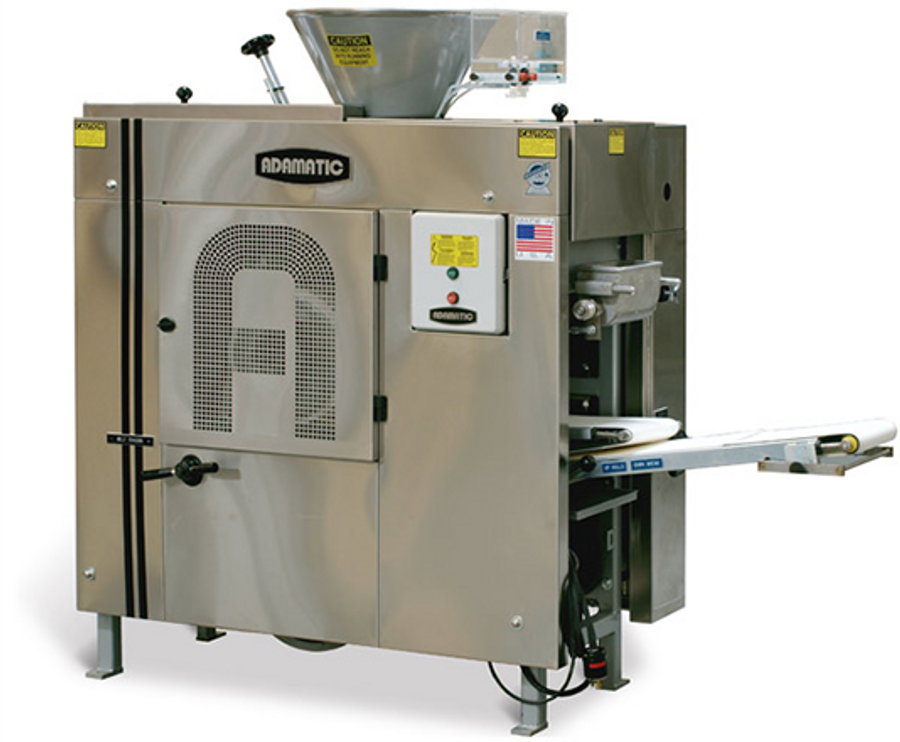

Belshaw Adamatic Adr-2 Divider Rounder

ADAMATIC ADR-2 DIVIDER ROUNDER

Belshaw Adamatic Adr-2 Divider Rounder

ADAMATIC ADR-2 DIVIDER ROUNDER

Divides and rounds in a single operation, with 1, 2 or 3 pockets for bread and rolls up to 19 oz.

Adamatic’s ADR2 Divider-Rounder is a bakery equipment legend for mid-sized bread and roll production - for durability, dependability, and for being easy to run with multiple dough sizes.

Belshaw Adamatic Adr-2 Divider Rounder

The ADR2 operates with 1, 2, or 3 pockets using 3 different rounding drums, at speeds up to 40 pieces/minute.

The ADR2 rounds the dough internally after dividing, and delivers it to an intermediate proofer (such as the Adamatic Combi Proofer).

No cone rounder or belt rounder is needed. The overall benefit is that an ADR2 Divider-Rounder runs more products with a single piece of equipment. The ADR2 is manufactured in the USA. Parts, technical support and service are all available within North America.

INFORMATION

BRAND

Belshaw

FOOTPRINT

82" long, 34" wide

COMPATIBILITY

USA-Canada-Mexico-Central/South America

CAPACITY

- Capacity - 1 pocket : 30 pieces/minute (1800/hour)
- Capacity - 2 pocket : 80 pieces/minute (4800/hour)
- Capacity - 3 pocket : 120 pieces/minute (7200/hour)

Belshaw Adamatic Adr-2 Divider Rounder

ACCOMODATES

Accomodates round rolls, moulded rolls, hot dog and hamburger buns, large sub rolls and baguettes up to 19 oz.

ADJUSTABLE

Fully adjustable hydraulic main piston, assuring scaling with minimal dough punishment

FOOTPRINT WIDTH

34 inch (87 cm)

FOOTPRINT LENGTH

82 inch (209 cm)

COMBINATION

Compatible with Adamatic Combination Bread and Roll Makeup Line (and other Makeup Equipment)

CERTIFICATION

BISSC

CONTROL PANEL

BISCC certified; UL listed control panel

VOLTAGES

220V/60/3, 20 Amps; other voltages available

SPEED

Speeds up to 40 pieces/minute, equivalent to capacity 4,800 pieces per hour with 3 pockets.

DIVIDING RANGE

-Dividing Range - 1 pocket (bread) : 9 - 19 oz (255-532 g)
-Dividing Range - 2 pocket (small bread/large roll) : 1 - 9 oz (28-255 g)
-Dividing Range - 3 pocket (rolls) : 1 - 3 oz (28-84 g)

Belshaw Adamatic Adr-2 Divider Rounder

MAINTAIN

Easy to clean and maintain

WEIGHT

Simple weight adjustment

DOUGH CONSISTENCIES

Scaling and production weights may vary with different dough consistencies

FEATURES

- Flour duster
- Variable speed and rounding control
- Adjustable gravity feed oiling system
- 1, 2, or 3 pockets using different rounding drums
