VIFA DLA206 + DLA115BAS SPEAKER

VIFA DLA206 + DLA115BAS SPEAKER

Line Array System

DLA206 Is a small-sized, light weight line array speaker.

It features low distortion mid-bass unit, high quality HF driver with special waveguide and horn, accurate coverage, uniform changes three-point hanging system and left & right symmetrical design complement each other, the whole system installation is fast, stable and safe.

Vifa Dla206 + Dla115bas Speaker

Unit configuration:2x6" high efficiency neodymium mid-bass units. 1x1" exit throat 44mm voice coil neodymium HF driver.

Vifa Dla206 + Dla115bas Speaker

The cabinet is made of multilayer composite plywood with wear-resistant poiyurea paint.

Vifa Dla206 + Dla115bas Speaker

SERIES DLA115BAS

DLA115B is a single 15" subwoofer. It features 1x15" 75mm voice coil woofer, bass-reflex design, three-point hanging system matched with DLA206, can be hung, supported and stacked to improve the low frequency performance of the system.

The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. DLA115BAS is equipped with two channels digital amplifier with DSP based on DLA115B to be an active system with DLA206.

INFORMATION

BRAND

Vifa

PRODUCT TYPE

Speaker

FEATURES - SERIES DLA115B  & DLA115BAS

-High quality component, bass-reflex design, full and elastic sound  -Quick setup for hanging, stacking and supporting  -Applications: multifunction halls, lecture halls,auditoriums, churches, and small touring

MODEL

- Series Dla206
- Series Dla115b
- Series Dla115bas

GROSS WEIGHT

- Dla115b : 38 kg/pc
- Dla115bas : 40 kg/pc
- Dla206 : 11 kg/pc

NET WEIGHT

- Dla115b : 34 kg/pc
- Dla115bas : 36 kg/pc
- Dla206 : 9 kg/pc

CROSSOVER FREQUENCIES

1.1kHz passive

COLLECTION

DLA

FEATURES - SERIES DLA206

-Special designed waveguide and horn. ensure accurate coverage angle and uniform changes -Passive way, simple operation, save amplifiers -Quick setup for hanging, stacking and supporting -Applications: multifunction halls, lecture halls.auditoriums. churches, and smal touring

Vifa Dla206 + Dla115bas Speaker

DRIVERS

- Dla115b & Dla115bas : 1  15"(385mm)/3"voice coil LF
- Dla206 : 2  6"(150mm)/1.5"voice coil LF, 1  1"(25mm)/1.7"voice coil LF

MAXIMUM SPL

-Dla115b & Dla115bas : 125 dB continuous,131 dB peak
-Dla206 : 118 dB continuous,124 dB peak

RATED POWER

- Dla115b  : 400W RMS,1600W peak
- Dla115bas : 900W/4Ω+800W/80Ω
- Dla206 : 160W RMS,640W peak

FREQUENCY

- Frequency Response(-3db) Dla115b : 40Hz-300Hz
- Frequency Response(-3db) Dla115BAS : 40Hz-300Hz and 50Hz-20kHz
- Frequency Response(-3db) Dla206 : 90Hz-18kHz
- Frequency Response(-10db) Dla206 : 85Hz-20kHz

SENSITIVITY

- Dla115b : 99dB 1watt/1 m
- Dla206 :  96dB 1watt/1 m

IMPEDANCE

- Dla115b : 8 ohms nominal
- Dla206 : 16 ohms nominal

INPUT CONNECTORS

- Dla115b : 2 Speakon NL4
- Dla115bas : Input type - balanced differential line
- Dla206 : 2 Speakon NL4

PACKAGE SIZE

- Dla115b & Dla115bas :  682 x 520 x 545mm
- Dla206 : 452 x 280 x 515mm

DISPERSION(-6dB) - DLA206

-Horizontal coverage : 100°
-Vertical coverage : Varies, depending on array length and configuration

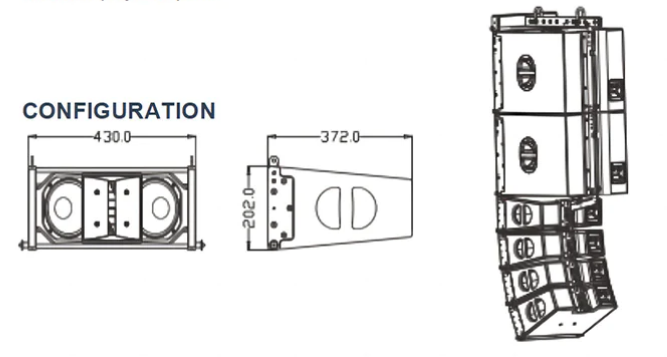

TECHNICAL DIAGRAM

Vifa Dla206 + Dla115bas Speaker
Dla206
Vifa Dla206 + Dla115bas Speaker
Dla115b &  Dla115bas
