Alpesinox CFE-A 90/2 Hood

CFE-A 90/2 HOOD

Alpesinox CFE-A 90/2 Hood

CFE-A 90/2 HOOD

Extractor hood with extendable filter 90 cm wide with two powered exhaust fans for a total of 800 mc/h.

Max absorbed power 0,20 Kw. Noise level 53,5 dbA. Hole size Ø 14 cm. Double fixing system, on the wall or under the wall unit

INFORMATION

BRAND

Alpesinox

PRODUCT TYPE

Hood

DIMENSIONS

- Width : 90 cm
- Height : 57 cm
- Depth Open : 57 cm
- Depth Closed : 40 cm

Alpesinox CFE-A 90/2 Hood

POWERED FAN SWITCHING ON KNOB

- 1 st speed V 160
- 2 nd speed V 180
- 3 rd speed V 200
- 4 th speed V 230

PRODUCTION

Made in Italy

MATERIAL

Stainless Steel

LIGHTING LAMP

The fluorescent lamp consumes 80% less energy and last 8 times more than normal incandescent lamps.

Alpesinox CFE-A 90/2 Hood

RANGE INDICATOR LIGHT

Switching on of powered fan

CLEAN

Easily Clean

MOVABLE DEFLECTOR PANEL

Allows to increase furthermore the suction surface in order to obtain a major absorption of the fumes in correspondence to the cooker underneath.

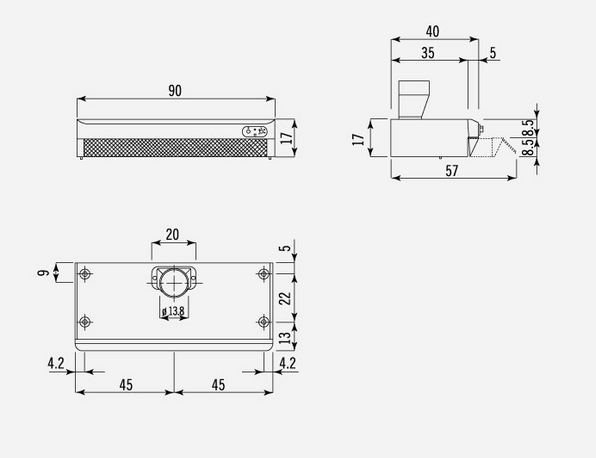

TECHNICAL DRAWING

Alpesinox CFE-A 90/2 Hood

NOISE LEVEL

53.5 dbA

MAX ABSORBED POWER

0.20 Kw

STRUCTURE

The range includes models having one or two motor powered fans with rotating stator in the exhaust model. The whole structure of the hood is made in nickel chromium 19/10 stainless steel. The “silver” satin finish, the high performance, the minimum consumption, the silent running and the extendible filter are this system’s main features.

Alpesinox CFE-A 90/2 Hood

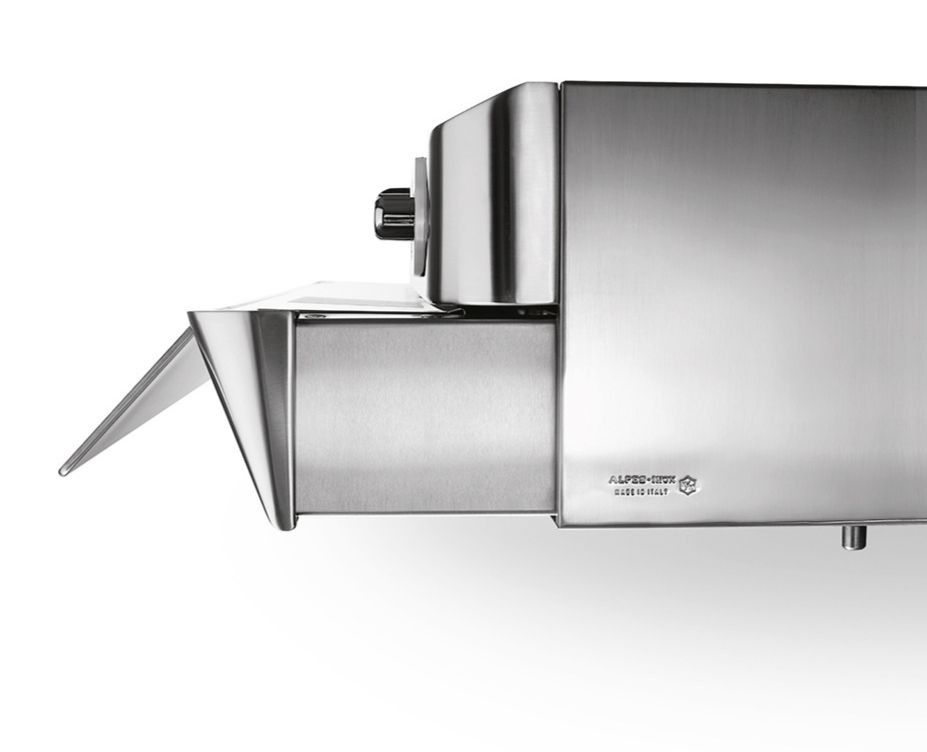

EXTENDIBLE FILTER

The whole filtering unit can be extended outwards in order to cover the whole surface of the cooker underneath. When not in use it returns flush with the wall units.

LIGHT TONE

84 extra white

IRC

86

POWERED EXHAUST FAN WITH ROTATING STATOR

-1
Impeller with high efficiency blades -2 Winding with enamelled wire treated with hot bi-component impregnation for resistance against high humidity percentage -3 Roller bearings long life guaranteed -4 Die-casted aluminium stator -5 Lamellar rotor pack -6 Lamellar stator pack. The large diameter of the magnetic gap allows a high output which results in low inputs -7 Steel shaf -8 Die-casted aluminium rotor

Alpesinox CFE-A 90/2 Hood

WARRANTY

-All ALPES-INOX srl products are covered by European warranty of 24 months for conformity defects, in accordance with Italian Legislative Decree no. 24 of 2 February, 2002. -For purchases made on the website www.alpesinox.com only, ALPES-INOX srl offers a free of charge extended warranty of two more years on all the products of the “Today’s Tools” collection, and five more years on the products of the “Free In The Kitchen” collection.

-ALPES-INOX srl does not sell second-hand or irregular products, products with material or workmanship defects, or products of a quality lower than the standards offered on the market. The essential characteristics of the products can be found in each product data sheet.

-Any breaks or manufacturing defects notified within 24 months from the date of purchase and attributable to the company, after careful inspection by our technicians, will give the right to free repair at the expense of the supplier within a maximum period of 30 (thirty) days from the date of inspection and check (for repairs more expensive than the full product replacement, the supply of a replacement product will also be considered). All defects due to accidents, misuse, alterations or unauthorised repairs are excluded from the warranty.
