Mobotix S74 The Flexible Thermal Camera

S74 THE FLEXIBLE THERMAL CAMERA

Mobotix S74 The Flexible Thermal Camera

S74 THE FLEXIBLE THERMAL CAMERA

The S74 with thermal sensor modules is the flexible MOBOTIX thermal camera.

The modules (CIF or VGA) are flexibly connected to the concealed camera housing with cables up to three meters in length. This allows both special installations as well as efficient surveillance of several areas with just one camera.

FEATURES

Mobotix S74 The Flexible Thermal Camera

THERMAL RADIOMETRY TECHNOLOGY (TR)

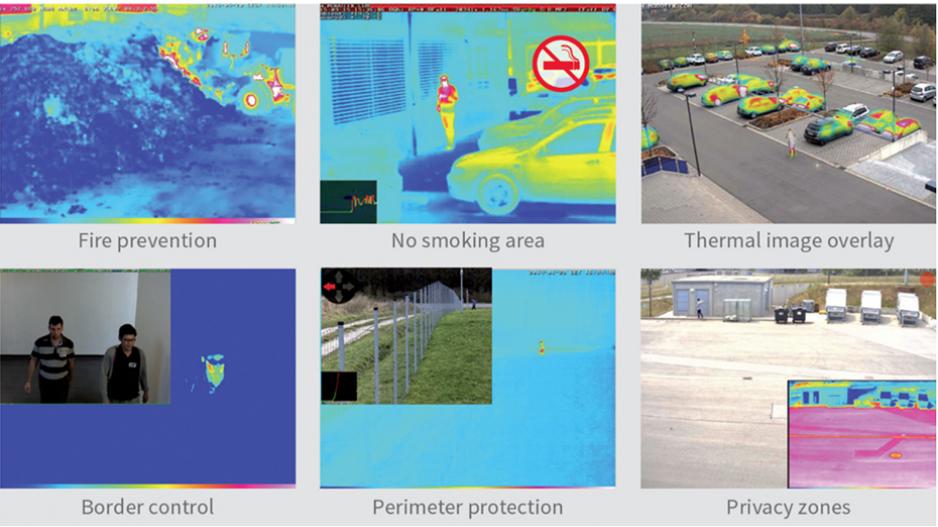

The S74 Thermal Radiometry (TR) model automatically alarms when the temperature exceeds or falls below defined limits. This is crucial for the detection of fire or heat sources. Up to 20 different temperature events can be configured simultaneously in defined TR windows or over the complete sensor image over a temperature range of -40 to 550 °C.

Mobotix S74 The Flexible Thermal Camera

THERMAL SENSOR MODULES WITH VGA RESOLUTION

Thanks to the increased number of pixels 640x480 px) and the extended image angles of up to 90° x 69° with the VGA thermal modules, more scene details can be seen, larger areas can be covered (perimeter protection) and temperature differences can be detected from greater distances than with the CIF variants (336 x 256 px). Thermal sensor modules are available in various versions: VGA from 32° to 90°, CIF from 17° to 45°.

Mobotix S74 The Flexible Thermal Camera

DISCREET APPEARANCE — REMARKABLE PERFORMANCE

More flexible than ever before and virtually invisible with embedded housing possibilities. You can position four independent modules (optical and function modules) to focus on specific areas. All in one system — all in the MOBOTIX S74. Equipped with stat- of-the-art processors, advanced cyber security and unsurpassed image quality. The MOBOTIX S74 can be integrated into the open MOBOTIX 7 platform with its range of analytic apps for each specific requirement.

HEALTHCARE: DETECTING TEMPERATURE ABNORMALITIES

MOBOTIX Thermal technology makes it possible to measure heat radiation - even of people. The MOBOTIX solution does not replace medical devices but can help analyze critical situations to further action. Considering the ambient conditions and using a black body radiator, anomalies can be detected very reliably.

Mobotix S74 The Flexible Thermal Camera

Identified persons can then be referred for further examination.  The possible risk of infection is reduced. In the mobotix solutions, you will find further applications for dealing with the pandemic.

INFORMATION

BRAND

Mobotix

PRODUCT TYPE

Camera

TECHNOLOGY

Optional with Thermal-Radiometry-Technology

Mobotix S74 The Flexible Thermal Camera

THERMAL SENSOR

Easily retrofittable 50 mK thermal sensor modules

THERMAL RESOLUTION

With CIF- or VGA thermal resolution, max 9 fps

USE

Photography

THERMAL LENS

17˚tele- to 90˚ wide angle thermal

Mobotix S74 The Flexible Thermal Camera

THE DISCREET THERMAL MODULE

The standard thermal sensor module comes with robust, weatherproofed metal housing. The modules can be securely fastened in-wall or device surfaces with a maximum wall thickness of 14 mm. It can also be fastened individually via the threaded openings on the side.

THERMAL MODULE IN PTMOUNT

The weatherproof PTMount Thermal (IP66) is a compact, attractive dome-shaped mount that is adjustable in three axes. The sensor module is already integrated there ex works and is equipped as standard with a two meter long sensor cable for connection to the S74.
