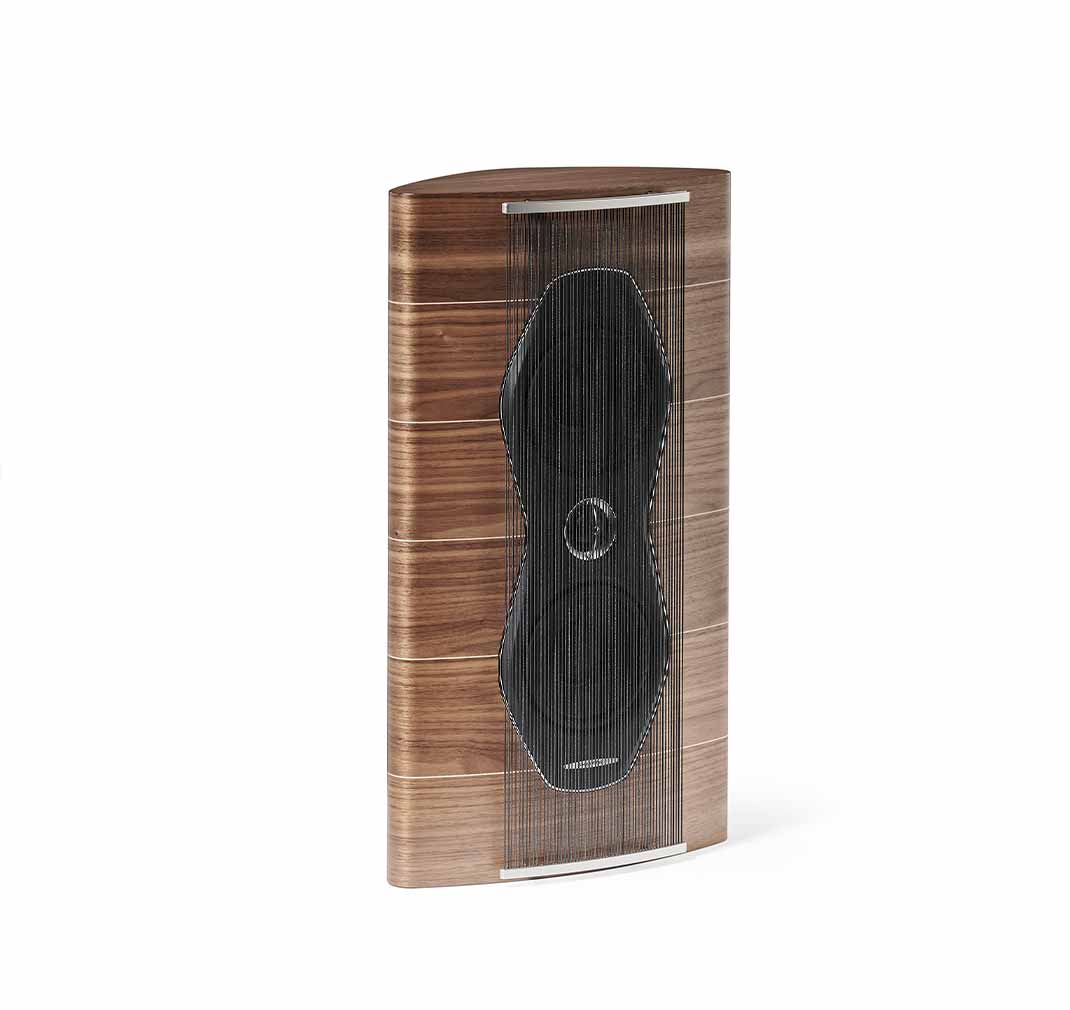

Sonus Faber Olympica Nova -W Speaker

Olympica Nova - W Speaker

OLYMPICA NOVA-W SPEAKER

Perhaps the most interesting addition to the line,
the wall-mounted speaker makes the collection complete and versatile.

Sonus Faber Olympica Nova -W Speaker

FEATURES

ESSENCE OF A BRAND

Since 1983, many moments have marked the history of Sonus faber; the launch of the Olympica Collection 6 years ago is one of them. One of the first lines presented as a complete family of products, but above all, the very first one to feature original drivers, entirely designed in Sonus faber.

Sonus Faber Olympica Nova -W Speaker

Olympica Nova is the second generation of the iconic family of 2013, improved in its form and substance, imbued with the timeless values that inspired us in creating the original line. The result is a new Collection that embraces the most advanced technologies that already enhance our most prestigious creations.

ORGANIC SHAPE

The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica.The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room.

Sonus Faber Olympica Nova -W Speaker

Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure. No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.

INFORMATION

SYSTEM

2 way, passive radiator, wall mount loudspeaker system.

BRAND

Sonus Faber

PRODUCT TYPE

Speaker

 LOUDSPEAKERS

-Tw : H28 XTR3. Neodymium “cup design” motor system with DAD™, Ø 28 mm
-Mw : MW15 XTR2-04, CCAW wire on a “eddy current free” voice coil, Ø 150 mm

NOMINAL IMPEDANCE

4 ohm

CROSS OVER

2.500 Hz

COLLECTION

Olympica

PRODUCTION

Made in Italy

Sonus Faber Olympica Nova -W Speaker

SUGGESTED AMPLIFIER POWER OUTPUT

35 W – 250 W, without clipping

WEIGHT

- 9 Kg ea – net weight
- 19.8 Ib ea– net weight

DIMENSIONS

- Height : 562mm/22.1"
- Width : 309.3mm/12.1"
- Depth : 234.5 mm/10.9"

FREQUENCY RESPONSE

50 Hz – 35.000 Hz

SENSITIVITY

87 dB SPL (2.83V/1 m)

FINISHES

Sonus Faber Olympica Nova -W Speaker
Walnut
Sonus Faber Olympica Nova -W Speaker
Wenge
Sonus Faber Olympica Nova -W Speaker
Black
