ESMACH SPI-F FIXED BOWL SPIRAL MIXER
ESMACH SPI-F FIXED BOWL SPIRAL MIXER
Fixed-bowl spiral mixers, beautifully engineered and crafted by Esmach in Italy.
The SPI-F series represents the pinnacle of spiral mixer technology from a company with a long history of mixers that bakers simply love to use. Expertly made in Italy, the home of great baking!
The mixer arm is geometrically perfect. It follows the bowl walls perfectly, and gives regular, soft and refined dough - even at minimum quantities. A well-balanced ratio between the rotation of the bowl and the spiral arm rotation make for soft, delicate dough treatment. The dough gradually develops by gentle lengthening and pulling. It all leads to reduced mixing times, lower dough temperatures - and dough quality that other mixers can only dream about.
The SPI-F offers an optional on-board water meter. You can set the amount of water required and the temperature required, and it dispenses automatically and accurately - a huge bakery time saver. For retail and industrial bakeries, pizzerias and confectionery industries.
INFORMATION
BRAND
Belshaw
BOWL TYPE
Fixed
CAPACITY
10 bowl sizes, by dough capacity : 65 to 650 lbs (30 to 300 kg)
PRODUCT TYPE
Mixer
CERTIFICATION
ETL
WORKING CYCLE THROUGH
Manual or automatic selection and monitoring of working cycle through a membrane keyboard panel. Storage for 9 recipes.
WORKING SPEEDS
Two working speeds for bowl and spiral arm. Reversal of bowl rotation at first speed (except 30 and 45 kg models).
FUNCTION
Functional and innovative command console with rotation in both left and right directions and with an operative angle of 120°, allowing ideal ergonomic comfort even in narrow working rooms.
10 BOWL SIZES, BY VOLUME
42 - 430 quarts (50 - 450 liters)
COMPATIBILITY
USA-Canada-Mexico-Central/South America
ELECTRIC PANEL
Electric panel in an IP55 protection box against flour dust and water sprays.
PERFECTLY
Perfectly shaped spiral arm rotation inside the bowl.
INDEPENDENT MOTORS
Independent motors for bowl and spiral arm in the models from 60 to 300 kg. Only one motor for 30 and 45 kg models.
SPIRAL

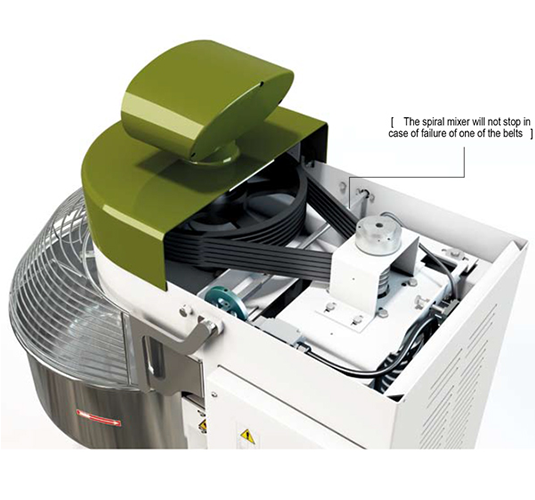

Direct power transmission for the rotation of both spiral arm and bowl generated by trapezoidal drive belts on multi-groove pulleys.
FOOD CONTACT
Transparent bowl lid suitable for food contact in compliance with hygiene and safety regulations.
DOUGH KNEADING
Optimum balance between bowl rotation and spiral arm enabling soft and gentle dough kneading.
OUTER PANELING
Outer paneling painted with an anticorrosion double epoxy powder coating, suitable for food contact.
USE
Stability and levelling on the floor assured by three casters with blocking wedges used for holding the machine while cleaning it deeply in the area underneath the frame.
PROCESSING
Accurate bowl and spiral arm speed for excellent dough kneading and its processing through stretching and lengthening, allowing continuous and constant dough kneading with a significant reduction of the processing time and limited heating up of the dough.
TECHNICAL DATA

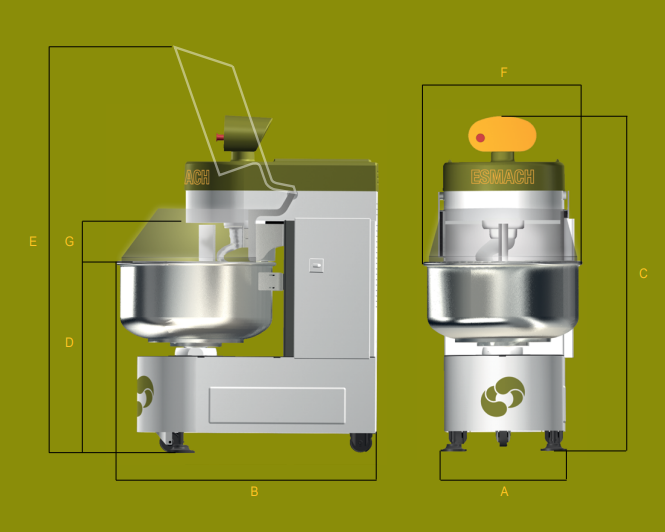

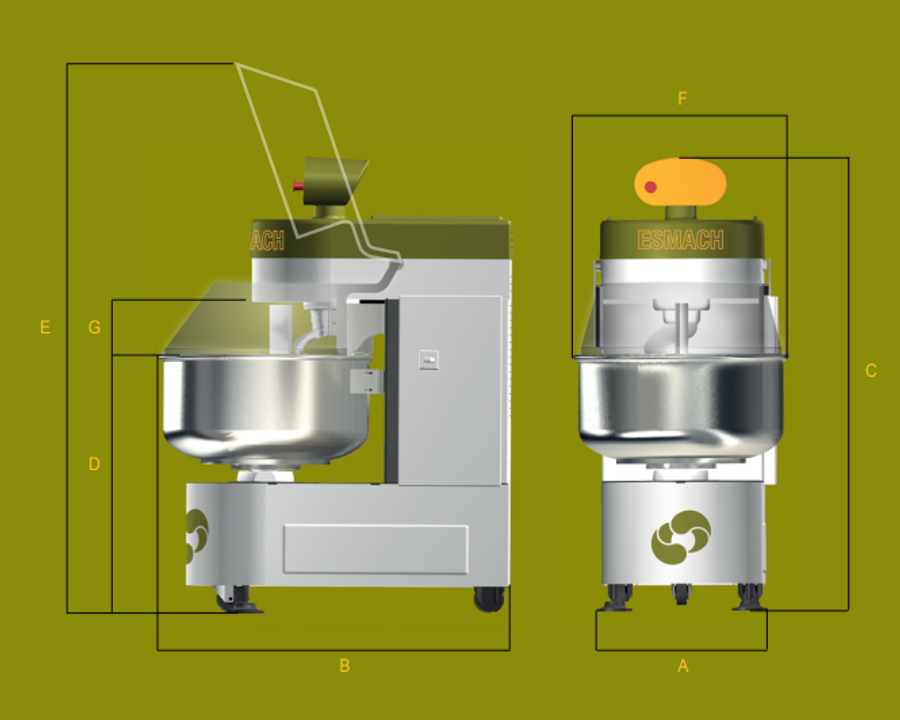

Technical Features | SPI | 30 | 45 | 60 | 80 | 100 | 130 | 160 | 200 | 250 | 300 |
---|---|---|---|---|---|---|---|---|---|---|---|
A | mm | 477 | 477 | 588 | 588 | 588 | 735 | 735 | 735 | 735 | 735 |
B | mm | 978 | 978 | 1121 | 1207 | 1207 | 1413 | 1495 | 1495 | 1640 | 1640 |
C | mm | 1378 | 1378 | 1563 | 1563 | 1563 | 1610 | 1610 | 1610 | 1719 | 1719 |
D | mm | 741 | 741 | 891 | 886 | 936 | 862 | 883 | 943 | 932 | 1009 |
E | mm | 1879 | 1864 | 1679 | 1751 | 1776 | 1864 | 1945 | 1975 | 2144 | 2182 |
F | mm | 562 | 562 | 638 | 741 | 741 | 847 | 948 | 948 | 1069 | 1069 |
G | mm | 181 | 131 | 184 | 189 | 139 | 222 | 202 | 142 | 219 | 142 |
Capacity dough Min-Max | kg | 2÷30 | 2.5÷45 | 3÷60 | 3.5÷80 | 4÷100 | 4÷130 | 4.5÷160 | 4.5÷200 | 10÷250 | 10÷300 |
Capacity bowl (nominal) | l | 50 | 60 | 95 | 120 | 145 | 200 | 250 | 290 | 360 | 430 |
Power installed | kW | 1.5 | 1.5 | 2.57 | 4.55 | 4.55 | 6.8 | 8.4 | 8.4 | 11.8 | 11.8 |
Weight | kg | 218 | 230 | 385 | 400 | 415 | 624 | 680 | 705 | 843 | 850 |
Mainland - Pallet (w)x(l)x(h) | mm | 1150x650x1550 | 1150x650x1550 | 1300x850x1730 | 1300x850x1730 | 1300x850x1730 | 1600x1000x1750 | 1600x1000x1750 | 1600x1000x1750 | 1800x1250x1930 | 1800x1250x1930 |
By Sea (w)x(l)x(h) | mm | 1250x750x1670 | 1250x750x1670 | 1400x950x1820 | 1400x950x1820 | 1400x950x1820 | 1700x1100x1850 | 1700x1100x1850 | 1700x1100x1850 | 1900x1350x2030 | 1900x1350x2030 |
