Netgear 4g Lte Modem

NETGEAR 4G LTE MODEM

Netgear 4g Lte Modem

NETGEAR 4G LTE MODEM

LM1200

For homes with a slow Internet option (DSL) or no fixed-line broadband service, such as cable or fiber, NETGEAR® LM1200 4G LTE Modem provides reliable Internet connection via LTE network. Blast past your limitations and maximize your Internet speeds up to 150Mbps to experience fast download speeds for ultimate streaming and gaming.

INFORMATION

BRAND

Netgear

MODEL

LM1200

PRODUCT TYPE

Modem

WEIGHT

0.39lb (180g)

EXTERNAL PORTS

- One (1) USB Type-C for power
- Two (2) Gigabit Ethernet ports
- One (1) Nano SIM slot
- Two (2) TS9 RF ports

SUPPORTS

Supports Modem/Router Mode : Stay connected with 4G LTE when your wireline broadband is unavailable. Connect the LM1200 to your wireline modem and your WiFi router for reliable WAN failover.

Netgear 4g Lte Modem

DESIGN

Compact, modern design : The compact, modern design fits in well within any space.

Netgear 4g Lte Modem

FAST AND RELIABLE LTE CONNECTION

Maximize your speeds in areas where cable, DSL or fiber Internet are limited or unavailable.

Netgear 4g Lte Modem

DIMENSION

4.56 x 4.56 x 1.27 in (116 x116 x 32.25 mm)

POWER ADAPTER

DC 5V, 2A

CABLE

USB Type-C cable

INTERNET

Bring 4G LTE Internet to your home or office : Connect the modem directly to any device or any  WiFi router.

Netgear 4g Lte Modem

WORKS WITH ANY WIFI ROUTER OR SYSTEM

Connect to any WiFi Router or System for a boost in range and speed for all devices in your entire home or office.

TECHNICAL SPECS

- Now certified with AT&T, T-Mobile and Verizon. Not compatible with Sprint.
- Band Support : LTE CAT 4 (Up to 150Mbps DL and 50Mbps UL)
- FDD : 700/800/900/1800/2100/2600MHz
- UMTSDC-HSPA+ (up to 42Mbps) : 900/1200MHz
- TDD : 2300/2500/2600MHz

Netgear 4g Lte Modem

INSTANT LTE INTERNET

Plug in an active Nano SIM card from your service provider and instantly access the LTE network as the primary connection for your home or business.

Netgear 4g Lte Modem

 REQUIREMENTS

-System requirements : compatible 3g/4g lte mobile service (4ff nano sim)
-Microsoft Windows® 7, 8, 8.1, 10, Vista, XP, Mac OS® (10.6.8. and newer) and other operating systems running a TCP/IP network (for accessing Web Management User Interface)
-Compatible browsers such as Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher (for accessing Web Management User Interface)

IN THE BOX

- LM1200 4G LTE Mode
- USB power adapterm
- USB Type-C cable
- Ethernet cable
- Quick start guide

PERFORMANCE & USE

-Fast and reliable LTE connection—Maximize your speeds in areas where cable, DSL or fiber Internet are limited or unavailable  -Instant LTE Internet—Plug in an active Nano SIM card from your service provider and instantly access the LTE network as the primary connection for your home or business -Works with any WiFi router or system—Connect to any WiFi router or system for a boost in range and speed -Always-on Internet with 4G LTE option -Gigabit Ethernet ports—Two (2) Gigabit Ethernet ports (1 WAN + 1 LAN)

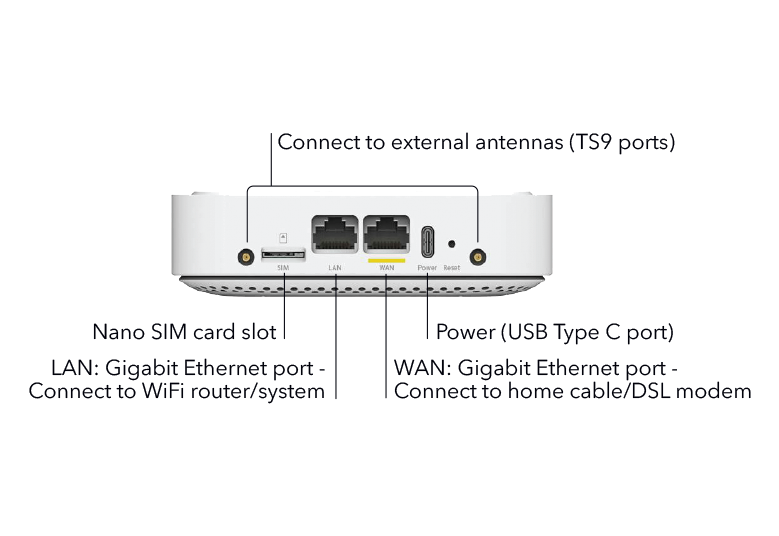

CONNECTION DIAGRAM

Netgear 4g Lte Modem
Netgear 4g Lte Modem
