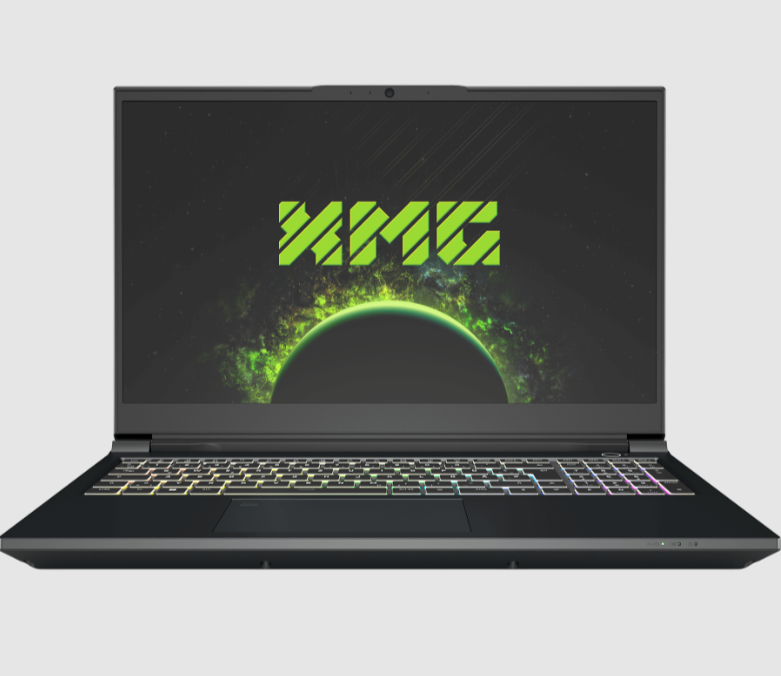

Xmg Xmg Pro 15 Laptop

XMG PRO 15 LAPTOP

XMG PRO 15 LAPTOP

Unchain Yourself

Comprehensively equipped gaming workstation with elite technology! The XMG PRO 15 offers everything you need for your creative workflow or AAA gaming: High-end performance, top-notch displays and plenty of external ports.

Xmg Xmg Pro 15 Laptop

Consistently implemented gaming workstation with top equipment! The XMG PRO 15 has everything you need for your creative workflow or AAA gaming with maximum details: High-end performance, first-class displays and plenty of external connections.

An upgrade to a larger and stronger cooling system compared to the previous model ensures that the latest flagship components from Intel and NVIDIA unleash their full power, thanks to higher power limits as part of an optimally tuned overall package.

The PRO 15’s rugged, partially aluminum chassis also offers room for up to 64 GB of plugged-in RAM, as well as two PCI Express 4.0-connected M.2 slots for the fastest NVMe SSDs.

FEATURES

Xmg Xmg Pro 15 Laptop

INTEL CORE I7 & I9 CPUS

With 14 cores and 20 threads, Intel’s Core i9-12900H and Core i7-12700H in the XMG PRO 15 belong to the new elite of mobile processors. The hybrid CPUs from the 12th Core generation (codename: Alder Lake) combine six performance cores with eight efficiency cores and achieve a marked performance increase of around 20 % compared to the previous generation in demanding multi-core applications.

Xmg Xmg Pro 15 Laptop

RTX 3000 NOW WITH TI

NVIDIA’s GeForce RTX 3080 Ti with 16 GB, the 3070 Ti with 8 GB and the 3060 with 6 GB GDDR6 memory form the technological spearhead among laptop GPUs. The new XMG PRO 15 moves away from the original Thin&Light approach, upgrading the cooling system to allow the graphics cards to operate within higher power limits and draw more performance – perfect for GPU acceleration of your professional, creative applications and for gaming in high resolutions at maximum graphics detail.

Xmg Xmg Pro 15 Laptop

NVIDIA

Advanced Optimus is an innovative NVIDIA technology that allows fully automatic switching of the laptop display’s connection between the high-performance NVIDIA graphics chip and the processor’s efficient, integrated GPU on the fly. In games, the direct connection to the dGPU ensures more performance and the lowest possible input lag, whereas the advantage of switching to the iGPU is its higher efficiency and resulting longer battery life. NVIDIA Advanced Optimus is available on the XMG PRO 15 for the G-SYNC capable Full HD display at 144 Hz. For the WQHD display, the connection can be adjusted manually via a MUX switch.

Xmg Xmg Pro 15 Laptop

NATIVE CONNECTIVITY FOR

4 external monitors

In the professional field, multi-monitor setups increase productivity and are also increasingly used in gaming and streaming setups. The XMG PRO 15 can natively drive up to four external displays in addition to its internal display: via HDMI 2.1, Mini DisplayPort 1.4, and a DisplayPort-enabled USB-C port, all of which connect directly to the powerful NVIDIA dGPU to support G-SYNC, NVIDIA Surround and all the latest VR headsets, as well as via a Thunderbolt 4 port coupled to Intel’s efficient iGPU.

FLEXIBLE HIGH-END INTERFACE

Thunderbolt 4

Thunderbolt 4 is the ideal interface for high-speed data transfer and functional expansion of the laptop: The record-breaking performance of the versatile port is not only used for copying large amounts of data at up to 40 Gbit/s. It is also the basis for connecting powerful, modern docking stations that connect the XMG PRO 15 to a complete work environment via just one cable – including multi-monitor setups, network connection, printer, mouse and keyboard.

Xmg Xmg Pro 15 Laptop

BEST EQUIPPED

Connectivity Champion

Complementing its Thunderbolt 4 and USB-C 3.2 interfaces, the XMG PRO 15 offers two USB-A 3.2 ports, a gigabit LAN port, fast Wi-Fi 6E for wireless network access and a microSD card reader. Separate inputs and outputs for headphones and microphone round off the complete package. The microphone port also supports an optical S/PDIF signal. A high-resolution Full HD webcam with Temporal Noise Reduction for intelligent image enhancement is available for video chats in high quality.

Xmg Xmg Pro 15 Laptop

RGB ILLUMINATED

Full-Size Keyboard

Style and functionality go hand in hand on the XMG PRO 15’s multi-typist keyboard. A dedicated, full-fledged numeric keypad, navigation keys and separate full-size arrow keys increase input comfort in productive use. In addition to a clearly defined pressure point for precise keystrokes, the keyboard exudes plenty of RGB charm if desired – either through various lighting effects or an own setup, thanks to the freely adjustable per-key illumination. The brightness level can be adjusted in several steps.

Xmg Xmg Pro 15 Laptop

INFORMATION

BRAND

Xmg

PRODUCT TYPE

Laptop

MEMORY

2x DDR4 SO-DIMM | up to 64 GB and 3200 MHz | Dual Channel | max. 1.2 V

DRIVER

We continuously provide you with the latest driver versions in the download portal of our company headquarters Schenker Technologies GmbH.

Xmg Xmg Pro 15 Laptop

PRODUCT ID

XPR15E22

PRODUCTION

Made in Germany

AUDIO

- Stereo speakers
- Smart Amplifier
- S/PDIF-out (optical)
- Sound Blaster Atlas
- Microphone with noise cancelling

    KEYBOARD

    Keyboard with per-key RGB backlight, full-fledged numeric keypad and full-size arrow keys

    TOUCHPAD

    Microsoft Precision Touchpad, two integrated buttons | 119 x 71 mm (W x D)

    VOLTAGE

    1.2 V

    RAM

    64 GB

    POWER SUPPLY

    230 watts (155 x 75 x 26 mm | 720 g incl. EU Power Cable)

    STORAGE

    2x M.2 2280 SSD via PCI Express 4.0 x4 (supportsRAID 0/1)

    DIMENSIONS

    - Height : 24.9 mm
    - Width : 358 mm
    - Depth : 240 mm

    Xmg Xmg Pro 15 Laptop

    CHASSIS

    -One-hand opening -PH 0 screw heads -135° display opening angle -Display frame and top case made of plastic -Display lid and bottom case made of aluminium

    BATTERY

    -Changeable 80 Wh Li-Poly-battery (internally screwed) -Flexible battery charging function can be activated in BIOS (FlexiCharger)

    PROCESSORS

    -Intel Core i7-12700H | 6 P- & 8 E-core/20 threads | up to 4.7 GHz | 24 MB cache | 45+ W TDP -Intel Core i9-12900H | 6 P- & 8 E-cores/20 threads | up to 5.0 GHz | 24 MB cache | 45+ W TDP

    SECURITY

    - Kensington Lock
    - TPM 2.0 (via dTPM)
    - Area Fingerprint Reader

    INCLUDED IN BOX

    - Laptop (incl. battery)
    - Power supply
    - Driver USB stick

     DISPLAYS

    -15.6″ IPS | 1920×1080 px | 144 Hz | 300 nits | 95 % sRGB | G-SYNC | non-glare -15.6″ IPS | 2560×1440 px | 165 Hz (alternatively 60 Hz settable) | 300 nits | 99 % sRGB/DCI-P3 | non-glare -15.6″ OLED | 3840×2160 px | 60 Hz | 400 nits | 100 % sRGB | colour calibrated (powered by X-Rite) | glare

    COMMUNICATION

    -Realtek Gigabit LAN -Wi-Fi 802.11a/b/g/n/ac/ax + Bluetooth 5 -Full HD webcam with Temporal Noise Reduction

    Xmg Xmg Pro 15 Laptop

    USE

    Game

    WEIGHT

    Ca. 2.4 kg

    PORTS (CLOCKWISE)

    LEFT

    -2x USB-A 3.2 Gen1 (powered) -2n-1 audio (mic-in or S/PDIF optical) -Headphone-out (compatible with combo jack headsets)

    REAR

    -Mini DisplayPort 1.4 (G-SYNC compatible) -HDMI 2.1 (G-SYNC compatible | HDCP 2.3) -Thunderbolt 4/USB-C 3.2 Gen2×1 (DisplayPort 1.4: yes | Power Delivery: no) -DC-in

    RIGHT

    -RJ45 Port (LAN) -USB-C 3.2 Gen2×1 (DisplayPort 1.4: yes, G-SYNC compatible | Power Delivery: no) -MicroSD card reader

    GRAPHICS

    -Intel Iris Xe Graphics | 96 Execution Units | integrated (iGPU) -NVIDIA GeForce RTX 3060 | 6 GB GDDR6 | 105 W TGP (+ 15 W Dynamic Boost 2.0) | dedicated (dGPU) -NVIDIA GeForce RTX 3070 Ti | 8 GB GDDR6 | 110 W TGP (+ 15 W Dynamic Boost 2.0) | dedicated (dGPU) -NVIDIA GeForce RTX 3080 Ti | 16 GB GDDR6 | 120 W TGP (+ 15 W Dynamic Boost 2.0) | dedicated (dGPU)

    -2160p display connection : iGPU with NVIDIA Optimus
    -HDMI, Mini DisplayPort, DP via USB-C connection : dGPU
    -DP via TB4/USB-C connection : iGPU with NVIDIA Optimus
    -1440p display connection: iGPU with NVIDIA Optimus or dGPU (via MUX-Switch)
    -1080p display connection : iGPU with NVIDIA Optimus or dGPU (via Advanced Optimus/MUX-Switch)
    -4 external displays directly addressable (more with MST adapter via USB-C or Mini DisplayPort)

    DETAIL

    FAST & WITH G-SYNC

    1080p-Display with 144 Hz

    Gaming without tearing and jerking! The Full HD panel (1920 x 1080 pixels) features a fast refresh rate of 144 Hz and is G-SYNC capable – so the image reproduction on the display is continuously synchronized with the frames output by the graphics card.

    Xmg Xmg Pro 15 Laptop

    Advanced Optimus also guarantees e-sports enthusiasts the lowest possible input lag. IPS technology ensures rich colours, high contrast, excellent viewing angle stability and at over 95 % sRGB color space coverage.
    - Full HD : 1920x1080 px
    - 144 Hz : Refresh rate
    - 95% SRGB : Colour Gamut

    FARBTREU, HOCHAUFLÖSEND, BLITZSCHNELL

    WQHD-Display with 165 Hz

    The WQHD display (2560 x 1440 pixels) is aimed at both gamers and creatives with its excellent display characteristics. A 165 Hz fast refresh rate and the high resolution yield razor-sharp, smooth gaming.

    Xmg Xmg Pro 15 Laptop

    The high-quality IPS panel also impresses with almost 100 % coverage of the sRGB and DCI-P3 colour space. Further advantages include rich colour reproduction, excellent black levels and contrasts as well as a high viewing angle stability.
    - WQHD : 2560x1440 px
    - 165 Hz : Refresh rate
    - 95% SRGB : Colour Gamut

    PRÄZISION IN MAXIMALER AUFLÖSUNG

    4K-OLED-Display

    Professional image and video editing demands a high-resolution, true-colour display. The factory pre-calibrated X-Rite certified 4K OLED display (3840 x 2160 pixels) was created to do just that. With 100 % coverage of the sRGB colour space and a brightness of 400 nits, it is the optimal solution for colour-accurate work.

    Xmg Xmg Pro 15 Laptop

    Other advantages of OLED technology include unrivaled black levels, perfect contrast, bright, intense colours, and extremely fast response times.
    - Ultra HD : 3840x2160 px
    - 400 Nits : Brightness
    - 100% SRGB : X-Rite Colour Calibration
