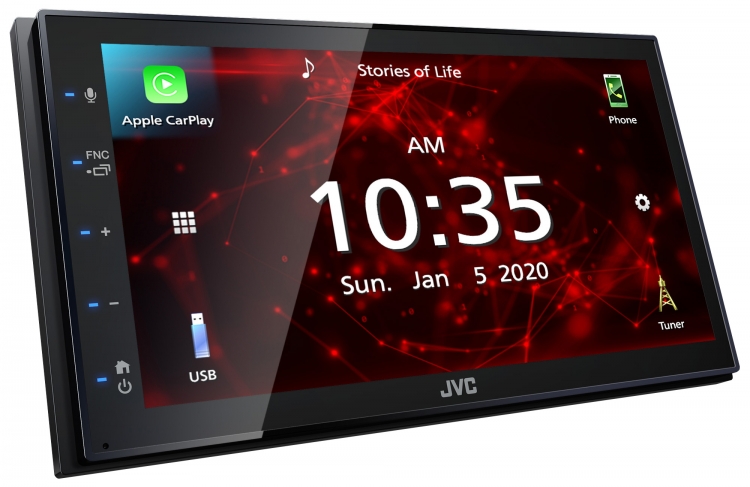

Jvc KW-M560BT Monitor With Receiver

KW-M560BT MONITOR WITH RECEIVER

Jvc KW-M560BT Monitor With Receiver

KW-M560BT MONITOR WITH RECEIVER

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto / USB Mirroring for Android Phones / Bluetooth® / 13-Band EQ / Short Chassis

FEATURES

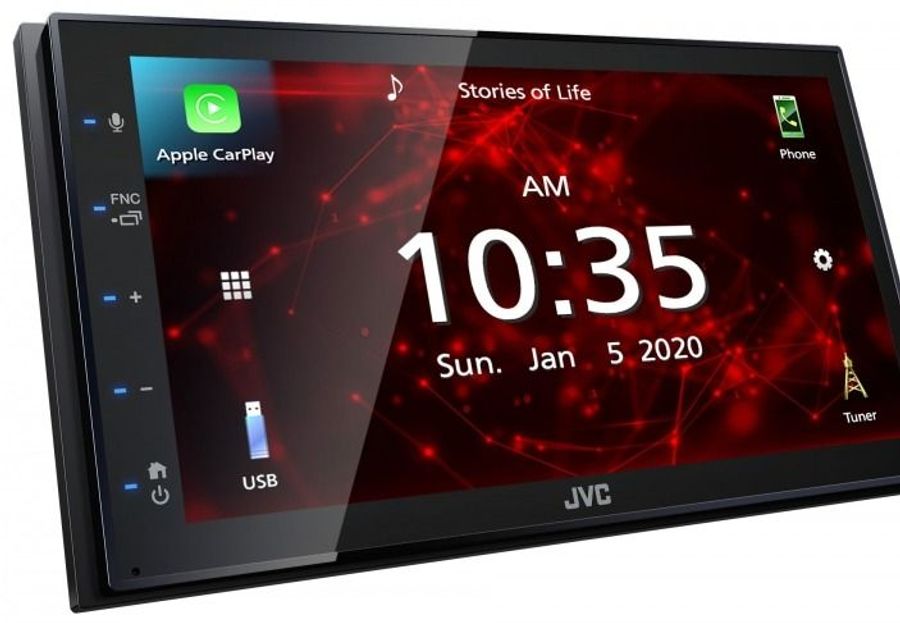

CAPACITIVE TOUCHSCREEN

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

Jvc KW-M560BT Monitor With Receiver

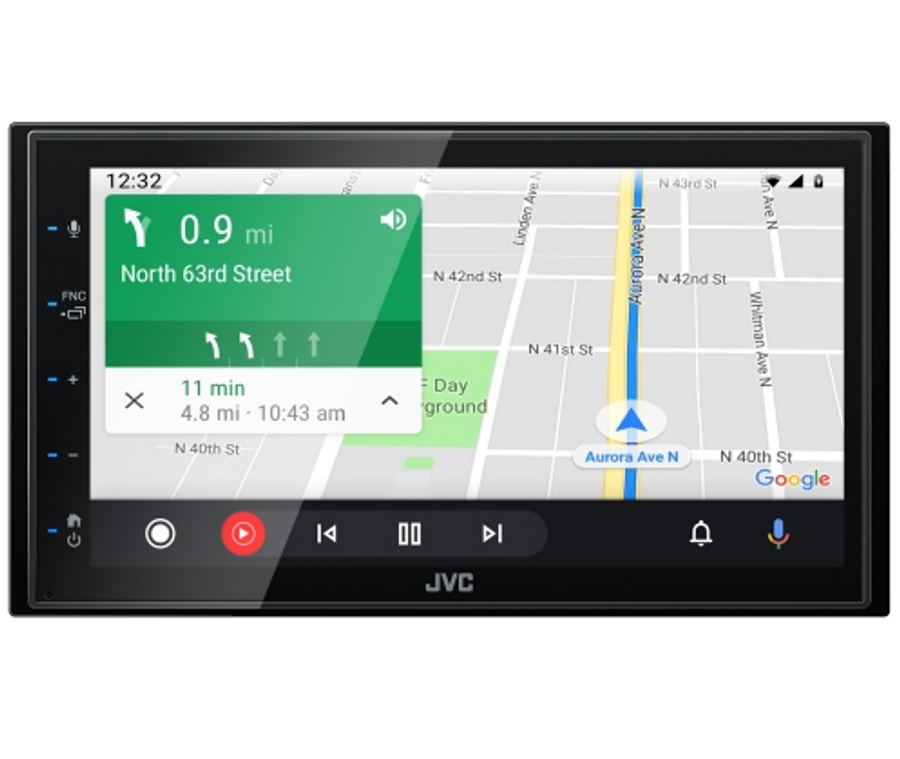

SMARTPHONE - INTEGRATION

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

Jvc KW-M560BT Monitor With Receiver

APPLE CARPLAY™ – CONNECT VIA USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

Jvc KW-M560BT Monitor With Receiver
Jvc KW-M560BT Monitor With Receiver

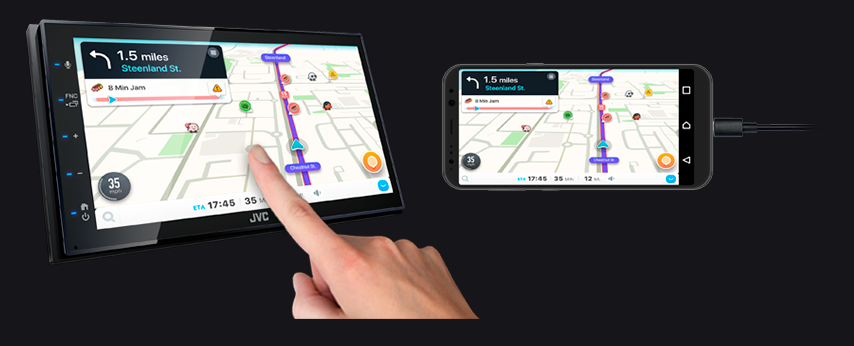

MIRRORING FOR ANDROID PHONE – CONNECT VIA USB

By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Jvc KW-M560BT Monitor With Receiver

TIME ALIGNMENT

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Jvc KW-M560BT Monitor With Receiver

APPLE CARPLAY™ – CONNECT VIA USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

INFORMATION

BRAND

Jvc

PRODUCT TYPE

Monitor With Receiver

USB

- USB Port : x 1 (High Speed)
- Position : Rear
- USB Power Supply : Yes (1.5A High Current Charging)

Jvc KW-M560BT Monitor With Receiver

RADIO TUNER

- Radio Data System : Yes
- Preset Stations : 20(FM:15ch, AM:5ch)
- Auto Memory Entry : Yes
- FMFrequency Range : 87.5-108.0MHz
- AMFrequency Response : 531-1,611kHz

ISO CONNECTOR

Yes

IPHONE CONTROL CARPLAY

Yes (via USB)

Jvc KW-M560BT Monitor With Receiver

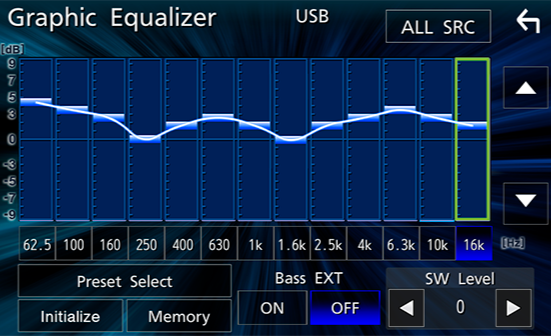

13-BAND EQUALIZER

Use the 13-Band Equalizer to manually adjust the sound to your taste.

INPUTS AND OUTPUTS

- Video Out : RCA
- AV Input : mini jack
- Rear view camera Input : Yes
- Pre-output Level/Impedance : 2.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control : Yes
- Line Output Terminals : 2Preouts (Terminal) + Sub WF (Cable)

SCREEN SIZE

6.8"W VGA Screen

TOUCH PANEL

Capacitive

BACK UP MEMORY

Yes

REMOTE CONTROL TYPE

Ready (RM-RK258 required)

Jvc KW-M560BT Monitor With Receiver

WEIGHT

1.1 kg

WEIGHT PACKAGE

1.8 kg

ANDROID CONTROL

-Android Auto[2] : Yes (via USB)
-Mirroring for Android : Yes (via USB) *Need mirroring App

DIMENSIONS  INSTALLATION SIZE

- Height : 178 mm
- Width : 100 mm
- Depth : 75 mm

Jvc KW-M560BT Monitor With Receiver

SHALLOW CHASSIS

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

GESTURE TOUCH CONTROL

Yes

KEY ILLUMINATION COLOR

Blue

GESTURE TOUCH CONTROL

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

CUSTOMISABLE GUI

Yes

DIMMER

Yes

HIGH CURRENT 1.5A CHARGING

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A. *Compatibility depends on the smartphone.

BLUETOOTH CONTROL

- Supported Audio Formats : AAC / SBC
- Phone Book Access Profile (PBAP) : Yes
- Alphabetical Search for Phone Book : Yes
- Audio Streaming & Control (A2DP, AVRCP) : Yes
- Built-in Bluetooth[1] : Yes (Wired-Mic included)
- Hands Free Call : Yes (HFP1.6 Wideband Speech)
- Auto Pairing for iPhone/Android : Yes (Android only)
- Voice Dialing (voice recognition compatible mobile phone required) : Yes

Jvc KW-M560BT Monitor With Receiver

MEDIA PLAYBACK

- H.264 Compatible : USB
- WMV/MPEG 4 Compatible : USB
- AVI/MKV/MPEG 1/2 Compatible : USB
- MP3/WMA/WAV/AAC/FLAC Compatible with Tag : USB

ANDROID™ BLUETOOTH AUTOMATIC PAIRING

Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

REAR VIEW CAMERA READY

The Rear View Camera input allows you to connect an optional rear view camera (sold separately). Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

AUDIO

- Bass Boost : Yes
- Time Alignment : Yes
- EQ : Yes (13-Band Graphic EQ)
- Preset EQ : Yes (7Preset + 3user)
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- Maximum Power Output (Front & Rear) : 50Wx4
- FullBandwidth Power (Front & Rear) : 22W x 4 (Full Bandwidth Power, at less than 1% THD)

LEARNING DIRECT OEM REMOTE

Yes

STEERING REMOTE CONTROL READY

Yes
