Berbel Firstline Unseen Built-in Hoods
FIRSTLINE UNSEEN BUILT-IN HOODS
FIRSTLINE UNSEEN BUILT-IN HOODS
Invisible And Extra Compact

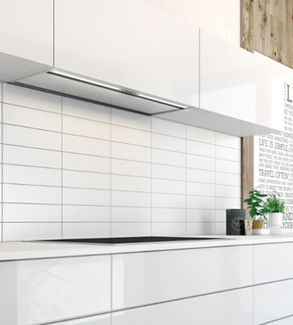

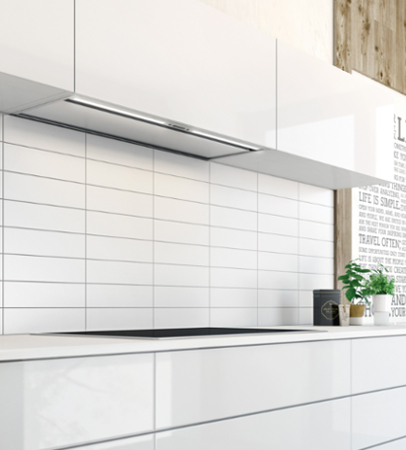

The Firstline Unseen built-in hood lives up to its name. Hardly anyone would want to do without a modern extractor hood in their kitchen, but not everyone wants to actually see it.
This is where the new Firstline U comes in. Thanks to its installation height of min. 360 mm, it can be invisibly integrated even into very compact hanging cabinets and it can be easily installed via easy-click-assembly.
INFORMATION
BRAND
Berbel
PRODUCT TYPE
Headroom Hood
PRODUCTION
Made in Germany
AVAILABLE WIDTHS
60, 90 cm
CONTROL
Three power stages and the strip of led lighting
COLOUR
Stainless steel
ANNUAL CONSUMPTION IN KWH
40, 37
ENERGY CLASS
- Energy efficiency class : B | A
- Fluid dynamic efficiency class : B | A
- Lighting efficiency class : A
- Fat separation class : B | B
NET WEIGHT
18 | 21 kg
PIPE CONNECTION
Ø in 125 mm
REC. DISTANCE FROM HOB
55 cm (gas hob 65 cm)
PERFORMANCE STAGES
3 + power stage (P)
WORKING UNDERCOVER
Despite the fact that the Firstline U is hidden completely inside a bottom-less wall cabinet, it can be operated conveniently and intuitively, via the concealed keypad. There are three switches for controlling the fan settings and dazzle-free LED light bar. The light temperature is infinitely variable to ensure pleasant ambient lighting.
INVISIBLE FORCE
The vapour intake is supported optimally by means of BackFlow technology, and top air cleaning efficiency is ensured with the berbel principle and the innovative Capillar Trap. The concealed, and very haptic control panel is used to control the three power stages and the strip of LED lighting, which is dazzle-free with an adjustable light temperature.
ACOUSTIC PRESSURE STAGE 3 (DB(A) RE 20 ΜPA)
47 | 49
SOUND LEVEL STAGE 3 (DB(A) RE 1 PW)
59 | 61
LED
- LED, W : 7.5 | 12
- LED hob illumination, LUX : 363 | 559
- LED colour temperature, K : 2,700 - 6,500
DOWNLOADS
↓ Operating Instructions
↓ Product fiche berbel BEH FLU
↓ Energy-label berbel BEH 60 FLU
↓ Energy-label berbel BEH 90 FLU
↓ Berbel Beh 60 Flu
↓ Berbel Beh 60 Flu 2
↓ Berbel Beh 90 Flu
FAN
- Fan Power Consumption, W : 170
- Free-blowing Fan Performance, M3/h : 760
DETAILS
- Recirculation filter saturation indicator : Yes
- Afterrun function for recirculation mode : Manual
STANDARD FEATURES
-Extra compact: Cabinets with a clearance of at least 36 mm and a body depth of at least 300 mm incl. recirculation filter -BackFlow for optimised vapour capture -Closed view from below -New “haptic” operating panel -Recirculation/exhaust air mode -Really easy and quick installation thanks to the easy-click mounting bracket. -The colour temperature of the LED hob lighting can be adjusted between 2,700 and 6,500 kelvin via the operating panel
PLANNING INFORMATION
-Suitable for cabinets with a clearance of at least 360 mm (without lower shelf) and side panels of 16 to 19 mm. -A suitable cover profile (item no. 1090008) must be ordered for 90 cm hanging cabinets with side shelves -The installation aid kit BEH 90 (item no. 1005515) is required for 90 cm cabinets without side shelves -The wooden cover behind the hanging cabinet’s front must be removable to allow for filter replacement -The grating for the air outlet (item no. 1005521) is required when using the recirculation version -90 degree pipe bend (included in delivery) allows for exhaust air outlet to the top or the rear -A spice rack with a depth of 120 mm may be installed above 360 mm -Can be used as fan module, with an installation frame. Not suitable for an island solution (BackFlow) -When using permalyt, please order exhaust air version and BUR 125 and observe minimum cabinet dimensions according to the drawing -The invisible FLU features lower vapour capture efficiency for the cooking zones at the front compared to a built-in hood with a visible vapour capturing module. -The cooking zones at the rear should therefore be used for intense cooking. Moisture that collects on the front panels during intense use of the front cooking zones must be removed after each cooking process to prevent moisture damage to the cabinets -A worktop depth of no more than 600 mm should be selected to allow for the most effective capturing of vapours in the area of the front cooking zones
-In order to optimise vapour capture, the BEH FLU should be installed as close to the front of the hanging cabinet as possible. Maximum distance to the wall 40 mm -No wooden cover behind the front is possible in the case of cabinets with a depth between 300 and 310 mm -Thickness of cover behind the front 16-19 mm
MODES
EXHAUST AIR
Exhaust air directed outside the building is particularly effective when it comes to the removal of odours, fumes and the moisture that results from cooking. It is advisable to use a to minimise heat loss. This seals and insulates the pipe outlet on the façade when the extractor hood is switched off. The planning of the exhaust air flow path should be optimised, since this positively influences the efficiency and smooth running of the hood. The appropriate duct material for this can be found in the exhaust air accessories section
RECIRCULATION
Recirculation mode is the most energy-saving operating mode. The air is cleaned by an odour filter and directed back into the room. The room temperature is not altered. It is also simple to implement, because wall penetrations and exhaust channels are not required. Due to their large volume, are especially efficient at odour-binding and absorb up to 95% of bad smells. A further advantage of the berbel recirculation filter: only the proactive carbon needs to be changed – not the entire filter – and it only needs to be replaced every two to three years depending on how hard the filter has to work. The berbel refill pack is available for a cost-effective and environmentally friendly replacement.
