Kalamazoo Gourmet K-dbc54-blk Grill Head Base Cabinet
GOURMET K-DBC54-BLK GRILL HEAD BASE CABINET
GOURMET K-DBC54-BLK GRILL HEAD BASE CABINET
K-DBC54-BLK

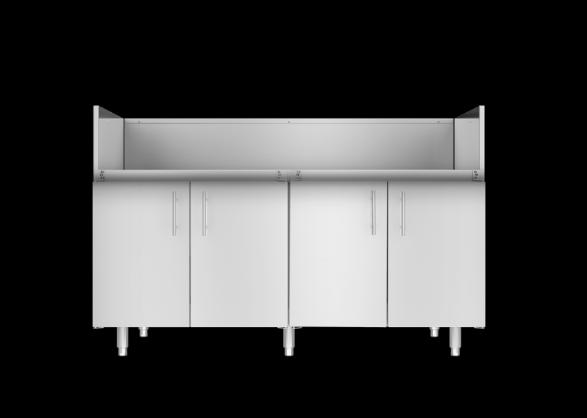

Custom designed to accommodate Kalamazoo's drop-in Gas Grill Head.
Integrates with any design and connects to our Signature and Arcadia cabinetry series as part of our modular kitchen system.
INFORMATION
BRAND
Kalamazoo Gourmet
PRODUCTION
Made in USA
GRILL SUPPORTS
Adjustable grill supports inside cabinet accommodate countertop thicknesses from 1 inch (26 mm) to 2.25 inches (57 mm)
FLEXIBLE
Pass-through holes for flexible gas hose and outdoor-rated extension cord
DIMENSION
MODEL
K-DBC54-BLK
MATERIAL
Marine-grade stainless steel
STORAGE
Provides storage below K54DB built-in gas grills
AVAILABLE
Front and rear toe kicks available
PRODUCT WEIGHT
185 lb (84 kg)
COUNTERTOP THICKNESS ALLOWED
1 in (26 mm) MIN. to 2.25 in (57 mm) MAX
VENTILATION
Available with louvered doors for suitable ventilation when used with a 20-pound liquid propane cylinder; includes tank bracket (K-DBC54-LVP only)
COMPATIBLE
Compatible with Kalamazoo Signature Series and Arcadia Series cabinetry and refrigeration for modular outdoor kitchen installations
OVERALL WIDTH (INSTALLATION)
54 in (1372 mm)
DOWNLOAD
ā Data Sheet
GAS REQUIREMENTS
- Natural Gas : 10 ft. (305 cm) gas hose from grill passes through bottom of cabinet
- Bulk Propane : 10 ft . (305 cm) gas hose from grill passes through bottom of cabinet
- Propane Cylinder : 20-pound (9 kg) propane cylinder can be used inside Kalamazoo base cabinet K-DBC54-LVP with louvered doors for proper ventilation. Do not use a cylinder inside K-DBC54-BLK with solid doors.
INSTALLATION DEPTH
29.125 in (739 mm) MIN. without optional back finishing panels
HEIGHT (BELOW COUNTER)
34.25 in (829 mm) to 35.75 in (908 mm) with adjustable legs
THICKNESS
- 1" [26mm] minimum countertop thickness -2 1/4" [57mm] maximum countertop thickness
FINISHING
Signature Series and Arcadia Series back finishing panels available for installations where the rear of cabinet is visible
