Epson Super UST 4KE laser display ( EB-810E)

Super UST 4KE laser display ( EB-810E)

Epson  Super UST 4KE laser display ( EB-810E)

SUPER UST 4KE LASER DISPLAY ( EB-810E)

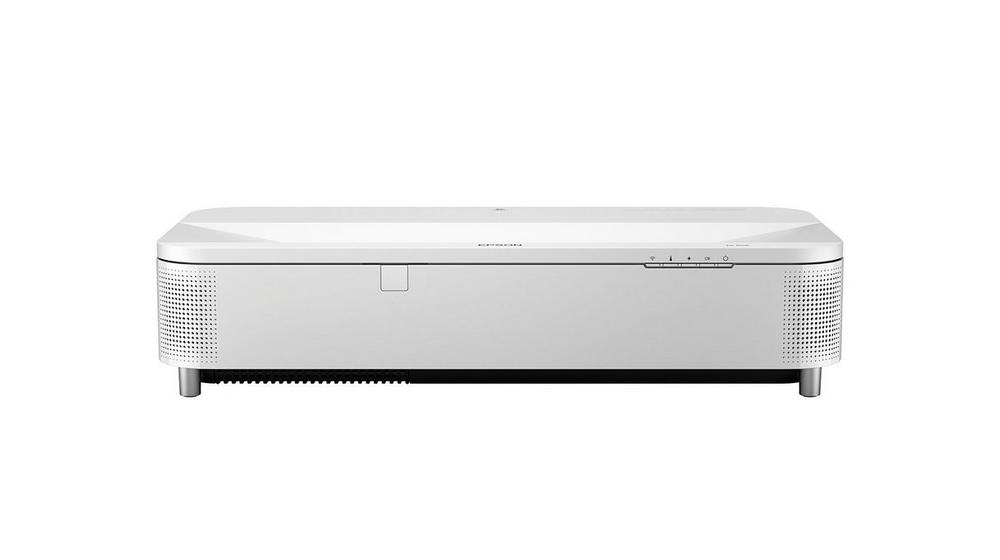

EB-810E, Epson’s first 4KE super-ultra-short-throw laser display designed for businesses, hybrid working and immersive spaces

The EB-810E can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low cost, energy efficient large display solution with a convenient and quick set up. EB-810E's super-ultra-short-throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows.

Epson  Super UST 4KE laser display ( EB-810E)
Epson  Super UST 4KE laser display ( EB-810E)

With 5,000 lumens CLO and 3LCD technology, the EB-810E is bright and vibrant up-to 160", which enables content visibility from all angles and distances. The experience is immersive and it's extremely simple to use.

Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device content sharing. Weighing only 12.3kg, it is highly portable, and the Epson Setting Assistant App makes setup quick and simple.The ideal display solution suitable for different room sizes, combined with flexible installation options.

Epson  Super UST 4KE laser display ( EB-810E)

The EB-810E supports multiple aspect ratios and multi-projector edge-blending for a low cost, seamless, energy efficient ultra-wide display, perfect for video conferencing. Paired with Epson's Ambient Light Rejection Screen, the EB-810E's image quality could be mistaken for a video wall or LED display, but it is surprisingly affordable and consumes a fraction of the energy.

INFORMATION

PROJECTION SYSTEM

- 3LCD Technology
- RGB liquid crystal shutter

BRAND

Epson

LCD PANEL

0.62 inch with C2 Fine

RESOLUTION

4K PRO-UHD

HIGH DEFINITION

HDR10, HLG

ASPECT RATIO

16:9

CONTRAST RATIO

2,500,000 : 1

COLOR LIGHT OUTPUT

5,000 Lumen- 3,500 Lumen (economy) In accordance with IDMS15.4

WHITE LIGHT OUTPUT

5,000 Lumen - 3,500 Lumen (economy) In accordance with ISO 21118:2020

LIGHT SOURCE

Laser

Epson  Super UST 4KE laser display ( EB-810E)

ASPECT RATIO

16:9

CONTRAST RATIO

2,500,000 : 1

COLOUR REPRODUCTION

Upto 1.07 billion colours

HDR SUPPORT

HDR10, HLG

2D VERTICAL REFRESH RATE

192 Hz - 240 Hz

COLOUR VIDEO PROCESSING

10 Bits

Epson  Super UST 4KE laser display ( EB-810E)

THROW RATIO

0.16 - 0.40:1

ZOOM

Digital, Factor: 1 - 1.35

LENS

Optical

SCREEN SIZE

80 inches - 160 inches

PROJECTION LENS FOCUS

Manual

PROJECTION LENS F NUMBER

1.8

OFFSET

7 : 1

PROJECTION LENS FOCAL LENGTH

3.7 mm

PROJECTION LENS FOCAL LENGTH

2.3mm

INTERFACES

-USB 2.0-A (2x) -USB 2.0 Type B (Service Only) -RS-232C, Ethernet interface (100 Base-TX / 10 Base-T) -Wireless LAN IEEE 802.11a/b/g/n/ac -HDMI in (2x)
-HDMI out, HDBaseT, Miracast

Epson  Super UST 4KE laser display ( EB-810E)

EPSON IPROJECTION APP

- Ad-Hoc
- Infrastructure

NETWORK PROTOCOL

- HTTPS
- IPv4
- IPv6
- SNMP
- ESC/VP.net, PJLink

INTERACTIVITY

No

COLOUR

White

HEAT DISSIPATION

1,292 BTU/hour (max)

SUPPLY VOLTAGE

AC 100 V - 240 V, 50 Hz - 60 Hz

2D COLOUR MODES

- Dynamic
- Natural
- Cinema
- Presentation
- Blackboard
- DICOM SIM

SECURITY

Kensington lock
Control panel lock
Password lock
Padlock
Wireless LAN unit lock
Wireless LAN security
Password protection

DIMENSIONS

- Width : 695‎ mm
- Depth : 341 mm
- Height : 156 mm

Epson  Super UST 4KE laser display ( EB-810E)

POWER CONSUMPTION

- 290 Watt - On mode power consumption (Normal) -380 Watt (Peak), 286 Watt (Eco), 0.4 Watt (Energy saving standby)

POSITIONING

- Ceiling Mounted
- Desktop
- TV Cabinet
- Wall Mounted

WHAT'S IN THE BOX

- Power cable
- Quick Start Guide
- Remote control incl. batteries

PRODUCT WEIGHT

12.5 kg

SUPPORTED TEMPERATURE

Storage -10° C - 60° C

NOISE LEVEL

- Normal: 35 dB (A)
- Economy: 26 dB (A)

INCLUDED SOFTWARE

- Epson Creative
- Projection,EasyMP Multi PC
- Projection, Epson Projector
- Content Manager, Epson
- Projector Management
- Epson Setting Assistant

OTHER FEATURES

21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Fit to Screen, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Source function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

PROJECTOR CONTROL

- AMX, Extron
- Crestron Integrated Partner
- Extron IP Link
- Extron XT
- AMX Device Discovery
- Control4 Simple Device - Discovery Protocol

KEY FEATURES

- Long-lasting solution Enjoy entertainment for up to 10 years5
- Affordable and flexible Project up to 120" close to the wall
- Smart entertainment EpiqVision Ultra range with Android TV and sound by YAMAHA
- Impressive, bright display Equally high White and Colour Light Output of 3,600 lumens
- 4K PRO-UHD1 Smart laser projection TV Supersize your favourite films, games and sporting events at home

SUPPORTED HUMIDITY

Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
