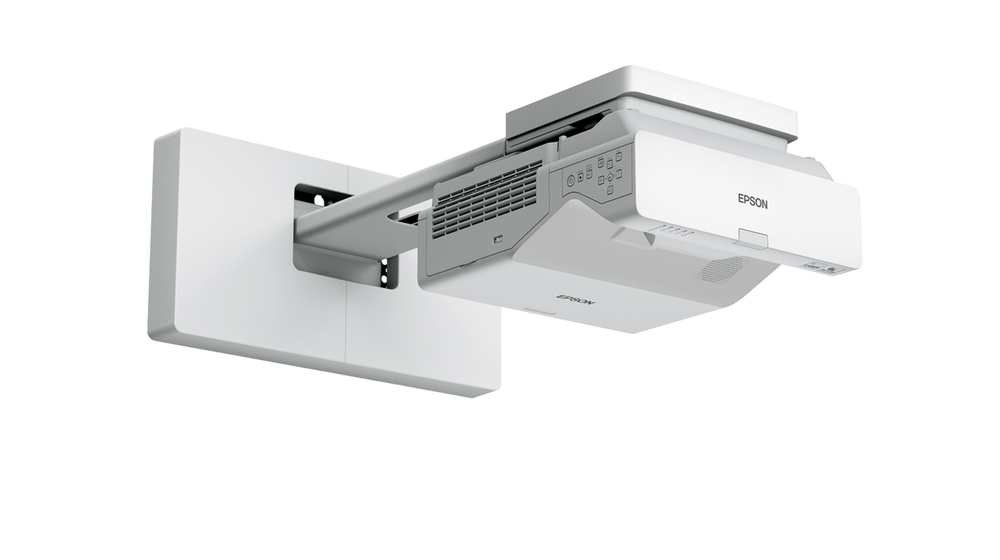

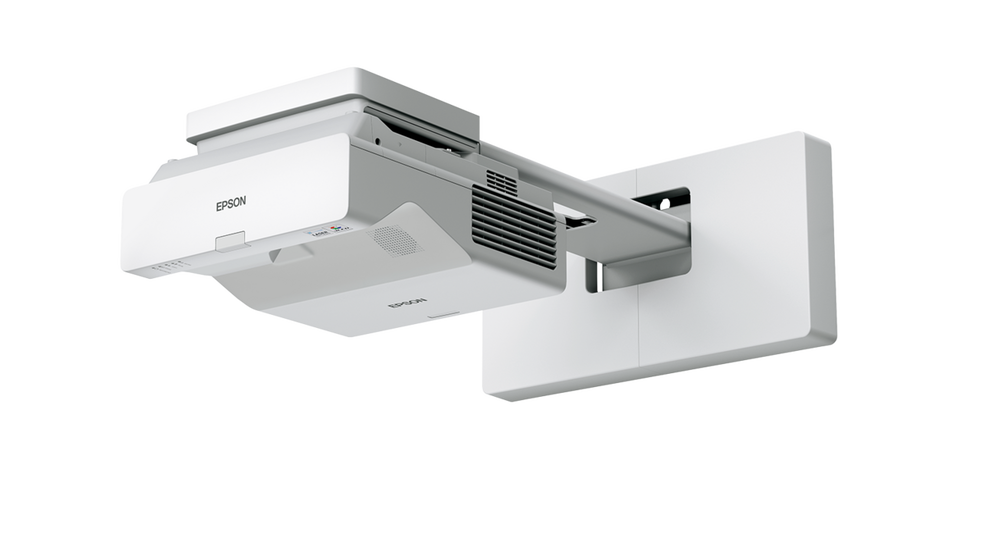

Epson Agile UST laser display EB-760W

Agile UST laser display EB-760W

Epson Agile UST laser display EB-760W

AGILE UST LASER DISPLAY EB-760W

Project your vision, with an affordable, large screen display up to 150" that will enhance engagement, learning and productivity.

Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.

With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly. Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost

Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.

Epson Agile UST laser display EB-760W

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

INFORMATION

PROJECTION SYSTEM

- 3LCD Technology
- RGB liquid crystal shutter

BRAND

Epson

LCD PANEL

0.59 inch with C2 Fine

RESOLUTION

WXGA

HIGH DEFINITION

HD ready

ASPECT RATIO

16:10

CONTRAST RATIO

2,500,000 : 1

COLOR LIGHT OUTPUT

4,100 Lumen- 2,800 Lumen (economy) In accordance with IDMS15.4

WHITE LIGHT OUTPUT

4,100 Lumen - 2,800 Lumen (economy) In accordance with ISO 21118:2020

LASER LIGHT SOURCE

- 20,000 hours Durability High,
- 30,000 hours Durability Eco

Epson Agile UST laser display EB-760W

LIGHT SOURCE

Laser

CONTRAST RATIO

2,500,000 : 1

KEYSTONE CORRECTION

Manual vertical: ± 3 °, Manual horizontal ± 3 °

COLOUR VIDEO PROCESSING

10 Bits

2D VERTICAL REFRESH RATE

100 Hz - 120 Hz

COLOUR REPRODUCTION

Upto 1.07 billion colours

Epson Agile UST laser display EB-760W

THROW RATIO

0.27 - 0.37:1

ZOOM

Digital, Factor: 1 - 1.35

LENS

Optical

SCREEN SIZE

60 inches - 150 inches

PROJECTION LENS FOCUS

Manual

PROJECTION LENS F NUMBER

1.6

OFFSET

6 : 1

PROJECTION LENS FOCAL LENGTH

3.7 mm

PROJECTION LENS FOCAL LENGTH

2.3mm

INTERFACES

-USB 2.0-A (2x), RS-232 -Ethernet interface (100 Base-TX / 10 Base-T) -Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x) -VGA out, HDMI in (3x) -Composite in Miracast,  -Jack plug out
-Jack plug in (3x)-USB 2.0 Type B (Service Only) -Wi-Fi Direct, Microphone input

Epson Agile UST laser display EB-760W

EPSON IPROJECTION APP

- Ad-Hoc
- Infrastructure

NETWORK PROTOCOL

- HTTPS
- IPv4
- IPv6
- SNMP
- ESC/VP.net, PJLink

INTERACTIVITY

No

COLOUR

White

HEAT DISSIPATION

895 BTU/hour (max)

SUPPLY VOLTAGE

AC 100 V - 240 V, 50 Hz - 60 Hz

2D COLOUR MODES

- Dynamic
- Natural
- Cinema
- Presentation
- Blackboard
- DICOM SIM

SECURITY

Kensington lock
Control panel lock
Password lock
Padlock
Wireless LAN unit lock
Wireless LAN security
Password protection

DIMENSIONS

- Width : 356‎‎ mm
- Depth : 395 mm
- Height : 133 mm

Epson Agile UST laser display EB-760W

POWER CONSUMPTION

-197 Watt - On mode power consumption (Normal) -263 Watt (Peak), 199 Watt (Eco), 0.5 Watt (Energy saving standby)

POSITIONING

- Ceiling Mounted
- Desktop
- TV Cabinet
- Wall Mounted

WHAT'S IN THE BOX

- Power cable
- Quick Start Guide
- Remote control incl. batteries

PRODUCT WEIGHT

5.9 kg

SUPPORTED TEMPERATURE

Storage -10° C - 60° C

NOISE LEVEL

- Normal: 35 dB (A)
- Economy: 27 dB (A)

INCLUDED SOFTWARE

- Epson Creative
- Projection,EasyMP Multi PC
- Projection, Epson Projector
- Content Manager, Epson
- Projector Management
- Epson Setting Assistant

OTHER FEATURES

A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

PROJECTOR CONTROL

- AMX, Extron
- Crestron Integrated Partner
- Extron IP Link
- Extron XT
- AMX Device Discovery
- Control4 Simple Device - Discovery Protocol

KEY FEATURES

- Scalable HD display for any room 53-150" UST display for unrestricted viewing (no shadows/reflections)
-Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
- Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
- Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
- Document camera compatibility Create and record a live, totally immersive lesson or presentation

SUPPORTED HUMIDITY

Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
