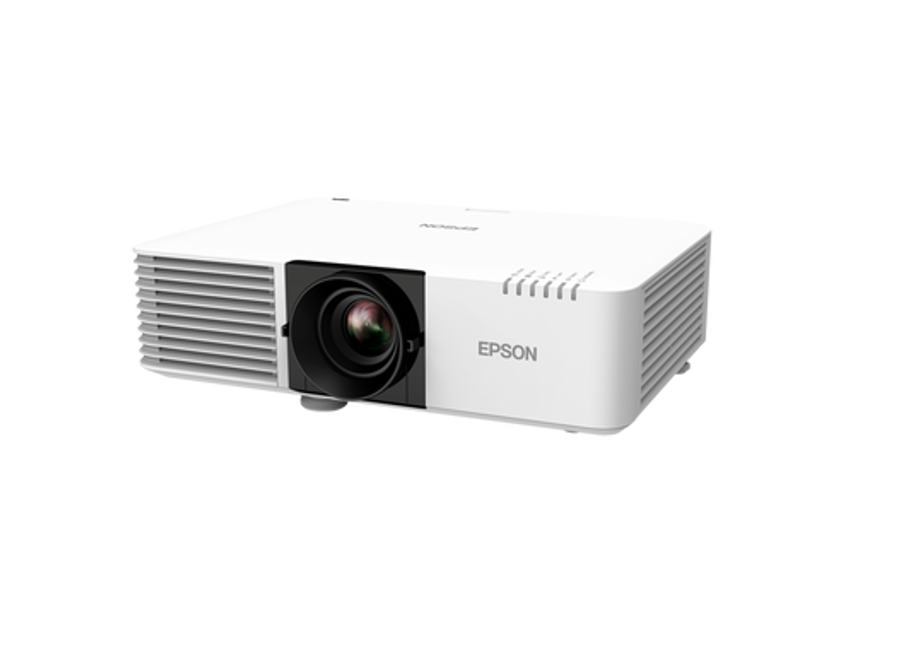

Epson Eb-l520u Wuxga Laser Display Projector
EB-L520U WUXGA LASER DISPLAY PROJECTOR
EB-L520U WUXGA LASER DISPLAY PROJECTOR
With advanced connectivity and premium display features, the EB-L520U is an affordable high-brightness laser display for all users.
INFORMATION
DETAIL
Deliver professional content with sharp images and bright colours to any audience. The EB-L520U is designed to project a scalable laser display up to 500 inches, and offers a range of connectivity options to make content sharing an easy, seamless experience.
RESOLUTION
WUXGA
HIGH DEFINITION
Full HD
COLOR LIGHT OUTPUT
5,200 Lumen- 3,640 Lumen (economy) In accordance with IDMS15.4
LCD PANEL
0.67 inch with C2 Fine
PROJECTION SYSTEM
3LCD Technology, RGB liquid crystal shutter
WHITE LIGHT OUTPUT
5,200 Lumen - 3,640 Lumen (economy) In accordance with ISO 21118:2020
ASPECT RATIO
16:10
CONTRAST RATIO
2.500,000 : 1
LIGHT SOURCE
Laser
COLOUR REPRODUCTION
Upto 1.07 billion colours
2D VERTICAL REFRESH RATE
192 Hz - 240 Hz
THROW RATIO
1.35 - 2.20:1
LASER LIGHT SOURCE
- 20.000 hours Durability High
- 30.000 hours Durability Eco
OPTIONS
Air filter, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP10, Wireless LAN unit, Wireless transmitter - ELPWT01
- Suspension adapter
- WP System - ELPWP10
- Wireless transmitter - ELPWT01
- Connection and control box
POSITIONING
-Ceiling Mounted -Desktop -Floor -Wall Mounted
LENS
Optical
SCREEN SIZE
50 inches - 500 inches
PROJECTION LENS ZOOM RATIO
1.35 - 2.2 : 1
PROJECTION LENS FOCUS
Manual
INTERFACES
- RS-232C
- VGA in (2x)
- VGA out
- HDMI in (2x)
- HDBaseT
- Ethernet interface (100 Base-TX / 10 Base-T)
- USB 2.0-A
- USB 2.0
- Jack plug out
- Jack plug in (2x)
- Miracast (optional)
- Wireless LAN a/n (5GHz) (optional)
PROJECTION LENS F NUMBER
1.5 - 1.7
PROJECTION LENS FOCAL LENGTH
20 mm - 31.8 mm
PRODUCT WEIGHT
7.7 kg
SUPPORTED TEMPERATURE
Storage -10° C - 60° C
LOUDSPEAKER
10 Watt
INCLUDED SOFTWARE
EasyMP Multi PC Projection
WHAT'S IN THE BOX
- Power cable
- User guide
- Warranty Documents
- Remote control incl. batteries
DOWNLOADS
↓ Healthcare solutions
↓ Business solutions
↓ Education solutions
↓ EB-L520U Datasheet / Brochure
↓ Business display solutions range
↓ Manufacturing solutions
↓ Business display range
↓ Display solutions product guide 2023
SUPPLY VOLTAGE
- AC 100 V - 240 V
- 50 Hz - 60 Hz
NOISE LEVEL
- Normal : 31 dB (A)
- Economy : 23 dB (A)
OFFSET
10 : 1
COLOUR VIDEO PROCESSING
10 Bits
SECURITY
Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock
KEYSTONE CORRECTION
- Manual vertical: ± 30 °
- Manual horizontal ± 30 °
OTHER FEATURES
- PC Free
- A/V mute
- Arc Correction
- Built-in speaker
- CEC compatible
- Edge Blending
- iProjection App
- Quick Corner
- Screen share
- Source function
- Easy OSD pre-setting
- Long light source life
- Ultra-wide display (16:6)
- 21:9 aspect ratio support
2D COLOUR MODES
- sRGB
- Dynamic
- Cinema
- Presentation
- DICOM SIM
TCO CERTIFIED
For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf
PROJECTOR CONTROL
Via: AMX, Crestron, Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
COLOUR
White
WARRANTY
36 months Carry in
CAPABILITY
Featuring 5,200 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 wide screen, support for 4K input and detail enhancement technology, it gives users brighter, more vivid displays of up to 500”.
ROOM TYPE / APPLICATION
-Boardroom -Home Cinema -Home Office -Large Meeting Room / Auditorium -Meeting room / Classroom, Signage / Retail -Visitor Attraction
MAINTENANCE
Thanks to the renowned market leading2 reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.
SUPPORTED HUMIDITY
- Operation 20% -80%
- Storage 10% - 90%
EPSON IPROJECTION APP
Ad-Hoc / Infrastructure
EDGE
Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.
FLEXIBILITY
Flexibility is another hallmark of this display solution - a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless1 with support for Miracast1 makes connectivity simple and straightforward; and HDBaseT content can be shared and distributed without compromising on quality.
KEY FEATURES
-High brightness, scalable size : Provides 5,200 lumens high-brightness display at up to 500"
-Premium display features : Full HD, supports 4K input, edge-blending and geometric correction
-Unrestricted viewing : Free from pixilation, glare, fingerprints and a central bevel
-Social distancing support : Scalable display meets the needs of every audience configuration
-Plug, click and collaborate : Collaborate using Epson’s wireless presentation system - ELPWP10
