Austroflamm Flok 2.0 Stove
FLOK 2.0 STOVE
FLOK 2.0 STOVE

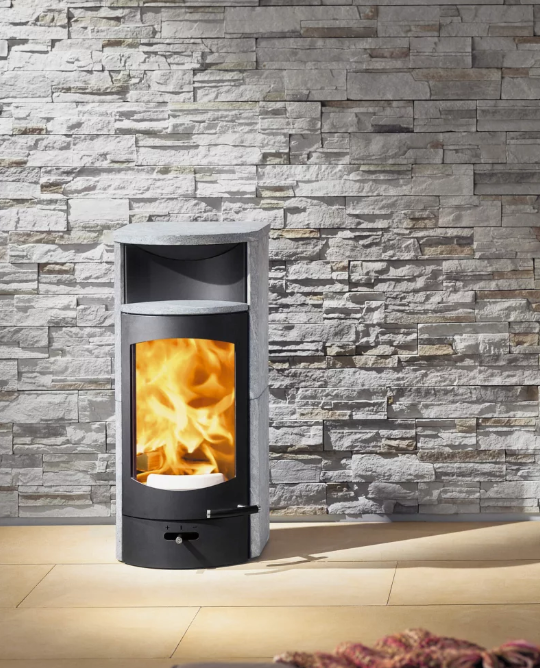

The Flok 2.0 offers a whole lot of fire in a compact format. A compact stove with style and generously-sized firebox that guarantees a good view into the play of flames. The optional base, which is also available with turntable upon request, makes the Flok 2.0 into a real quick-change artist.
Even when small it surpasses itself. With a ceramic warming compartment and optional soapstone cladding, the Flok 2.0 appears in an individual design. Also available with the proven HEAT MEMORY SYSTEM.
INFORMATION
BRAND
Austroflamm
PRODUCT TYPE
Stove
COLLECTION
Flok
MATERIAL
Steel
DIMENSIONS
- Height : 980 mm
- Width : 425 mm
- Depth : 417 mm
DIMENSIONS (COMBUSTION CHAMBER )
- Width : 282 mm
- Height : 401 mm
- Depth : 247 mm
DIMENSIONS (WARMING DRAWER)
- Width : 374 mm
- Height : 185 mm
- Depth : 187 mm
WEIGHT HSM
53 kg
WEIGHT BASIC APPLIANCE
78 kg
TOTAL WEIGHT INC. SOAPSTONE CASE (STM)
86
TOTAL WEIGHT INC. SOAPSTONE CASE (SPM)
130
DIMENSIONS WITH AUSTROFLAMM ELBOW PIECE
- A : 1504 mm
- B : 851 mm
- C : 612 mm
- D : 188 mm
AXIMUM ROOM HEATING CAPACITY
88
SAFETY DISTANCE TO COMBUSTIBLE MATERIALS
- A Front : 800
- B Left : 150
- C Rear : 100
- D Right : 150
- E Floor : 0
FLUE PIPE OUTLET
130 mm
MINIMUM HEAT OUTPUT
2.5 KW
MAXIMUM HEAT OUTPUT
6.0 KW
HEAT MEMORY SYSTEM
Accessories
MINIMUM ROOM HEATING CAPACITY
34
OUTSIDE AIR CONNECTION DIAMETER
125 mm
CLADDING MATERIAL / COLOUR
- Steel
- Iron-gray
- Soapstone
- Sand
- Hemp
- Smoky quartz
- Earth
- Fire
- Ruby red
- Black
- Matt black
- Enamel white
TECHNICAL DRAWING
RECOMMENDED FUELS
Billet Wood
ASH REMOVAL
Ash box
DATA FOR THE CHIMNEY SWEEP
- Exhaust gas mass flow : 3.92(g/s)
- Flue gas temperature, closed : 343 (°C)
- At 0.8 times nominal heat Output : 12 (pa)
- Minimum delivery pressure at nominal heat output : 10 (pa)
EXTERNAL AIR CONNECTION / OPERATION INDEPENDENT OF AMBIENT AIR
Yes
ENERGY EFFICIENCY CLASS
A
NOMINAL HEAT EFFICIENCY
4.0 kw
FEDERAL EMISSION CONTROL ORDINANCE LEVEL
1+2
GLASS SHAPE
Cornered
TURNTABLE
Accessories
CURVED GLASS
Curved
WARMING COMPARTMENT MATERIAL / COLOUR
-Sand
- Sandstone
- medium
- Hemp
- Smoky quartz
- Earth
- Fire
- Ruby red
- Dark basalt
- Black
- Matt black
- Enamel white
