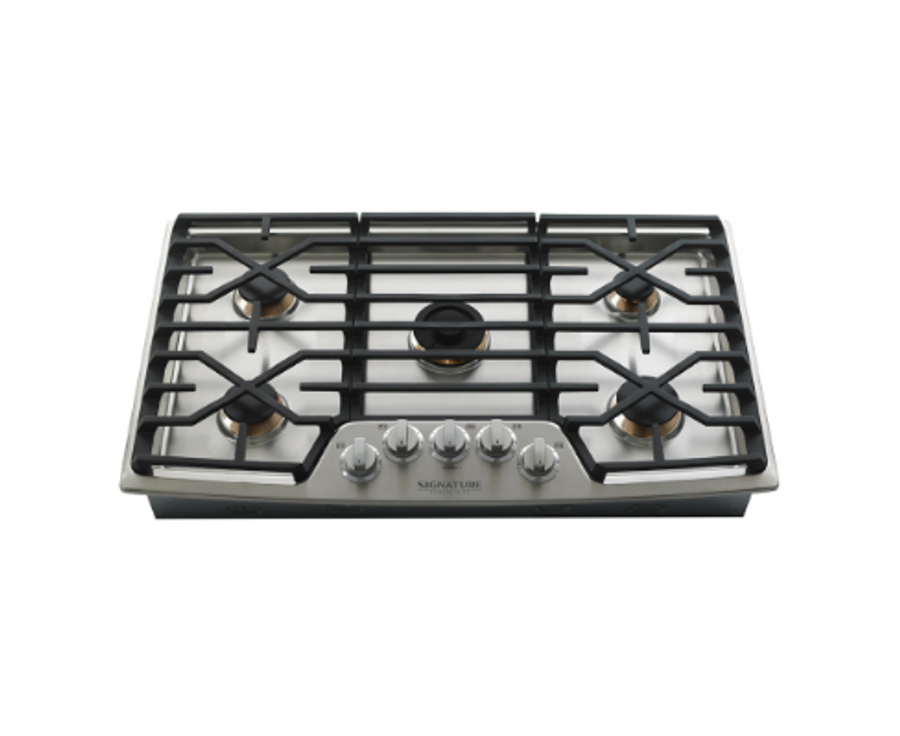

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop

UPCG3654ST 36-INCH GAS COOKTOP

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop

UPCG3654ST 36-INCH GAS COOKTOP

Our gas cooktops fit right in to the food forward kitchen, packing more BTUs of power so they heat fast and burn hotter. Our Solid Brass Burners are just as powerful and can also simmer gently. And you can control your entire gas cooktop experience with WiFi-enabled capabilities.

FEATURES

KNOB LIGHTING

Our knobs light up red when the burner is on so no simmer will go unnoticed.

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop

RAPIDHEAT™ BURNER

This burner delivers 19,000 BTUs of power, allowing you to rapidly reach and maintain high temperatures for searing and stir-frying.

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop

SOLID BRASS BURNERS

Even professional chefs would swoon over our Power Dual Burners at 18,500 BTUs. But these dynamic burners can also simmer gently.

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop

WIFI-ENABLED

With Burner Monitoring & Push messaging you can make sure your cooktop is operating perfectly, even when you’re not at home.

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop

INFORMATION

BRAND

Signature Kitchen Suite

RATING (240V / 208V)

10.2 kW / 7.7 kW

PRODUCT TYPE

Burner

PRODUCT CODE

UPCG3654ST

SPEED-CLEAN™

Makes fast work of cleaning a lightly-soiled oven with just a ten minute cycle, using only water.

GRIDDLE PLATE

The non-stick coated griddle accessory provides an extra-large cooking surface for meats, pancakes or other food usually prepared in a frying pan or skillet.

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop

 DIMENSIONS

- Overall Width : 36" (914.4 mm)
- Overall Depth : 21 11/16" (550.9 mm)
- Overall Height Including Grates : 4 1/8" (104.8 mm)

WEIGHT

- Net Weight (approx.) : 58.31 lbs
- Shipping Weight (approx.) : 83.89 lbs

COOKTOP CONTROL KNOBS WITH RED LED BACK LIGHTING

Yes

INNOVATION

- Wi-Fi-Enabled for ThinQ® Control with iPhone / Android App : Yes
- Remote Operations : Yes

ENERGY SOURCE GAS

Natural Gas

ALTERNATIVE ENERGY SOURCE LP GAS

LP Gas

WIFI-ENABLED

With burner monitoring and push notifications, you can make sure your cooktop is operating perfectly, even when you step away from the kitchen. You'll also be able to ensure everything is running smoothly with Smart Diagnosis.

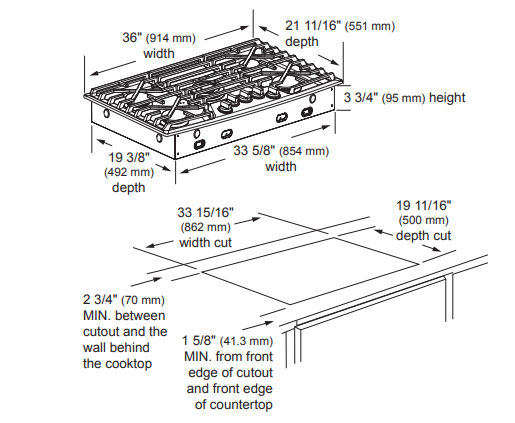

TECHNICAL DRAWING

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop
Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop
Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop

LP CONVERSION KIT INCLUDED

Yes

REQUIRED POWER SUPPLY

120VAC, 60Hz

COOKTOP FEATURES

- Fuel Type : LNG / LPG
- Cooktop Surface : Stainless Steel
- Number of Burners / Elements : 5
- Sealed Gas Burners (Brass) : Yes
- Continuous Grates 3 Dishwasher Safe Grates : Yes

COOKTOP PERFORMANCE

Burner Power BTU/h (NG)

- Left Rear : 9,100 / 9,100
- Right Rear : 5,000 / 5,000
- Left Front  : 9,100 / 9,100
- Right Front : 12,000 / 9,500
- Center Rear (RapidHeat) : 19,000 / 15,000

DOWNLOAD

↓ Data Sheet

WARRANTY

Limited Warranty, Parts & Labor : 3 Years

Signature Kitchen Suite UPCG3654ST 36-Inch Gas Cooktop
