Marshall Origin20h Loudspeaker
ORIGIN20H LOUDSPEAKER
ORIGIN20H LOUDSPEAKER

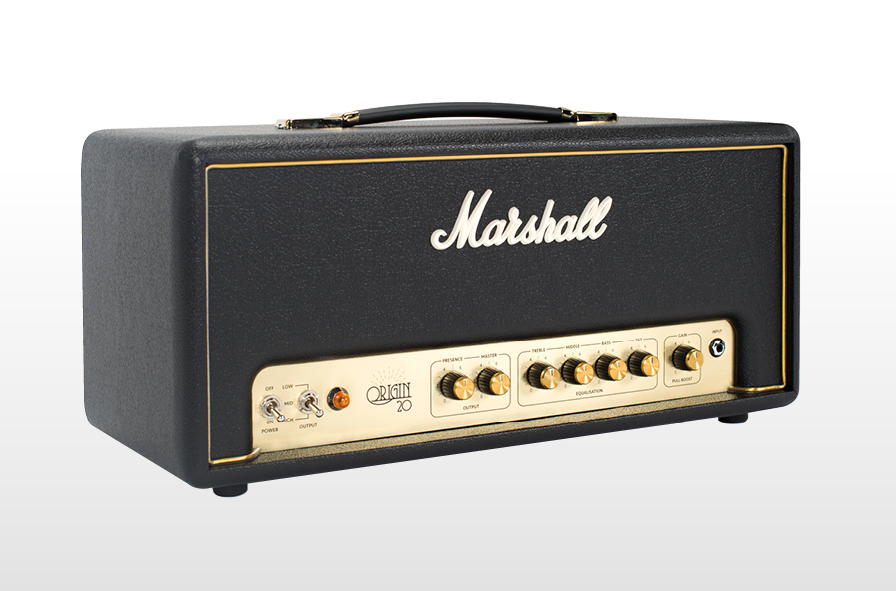

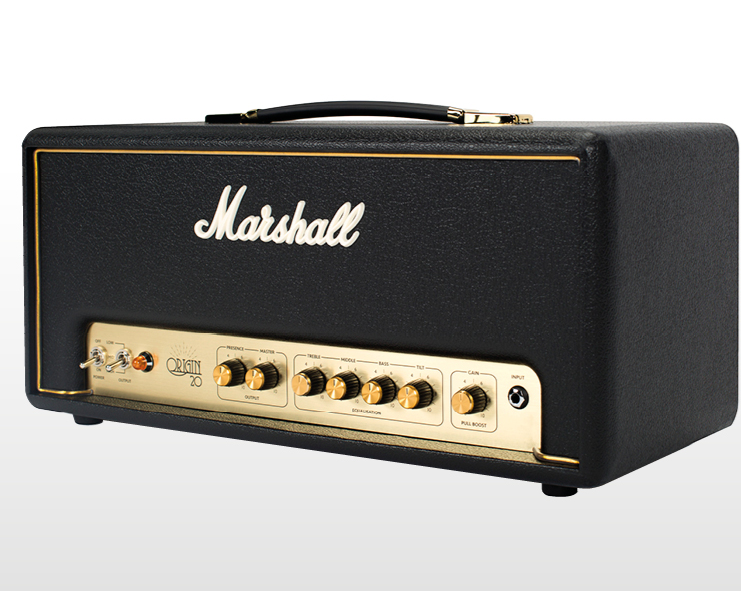

Express your personality with this 20W head. The Origin20H provides a classic all-valve, rich and harmonic tone.
With sleek styling and modern features this amp is ideal for playing in different environments from bedroom to rehearsal studios and small venues.
FEATURES
YOU HAVE THE POWER
To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, Powerstem, allows you to have high, medium or low power modes..
TILT YOUR SOUND
With one channel, this amp still offers a variety of tones. By using the tilt control you can vary your sound from normal to high treble to access the one you prefer.
ADD A LITTLE BOOST
The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.
UNDERSTANDING YOUR ORIGIN
There are lots of features on the Origin so we've made some videos to help you better understand how the Origin can help shape your sound.
INFORMATION
BRAND
Marshall
PRODUCT TYPE
Speaker
MODEL
Origin20H
RANGE
Origin
OUTPUT WATTAGE
High power 20W, mid power approx 3W and low power approx 0.5W
DIMENSIONS
- Width : 520 mm / 20.5"
- Height : 225 mm / 8.9"
- Depth : 220 mm / 8.7"
EFFECTS
None
WEIGHT
9.4 kg / 21 lbs
TECHNOLOGY
Valve
CHANNELS
1
VALVES
- Preamp valves : 3 x ECC83
- Power amp valves : 2 x EL34
BOOST FEATURE
There is a 2-way footswitch available so you can control the gain boost feature and turn the FX loop on and off.
CONTROLS
Gain, boost, tilt, bass, middle, treble, master, presence, powerstem

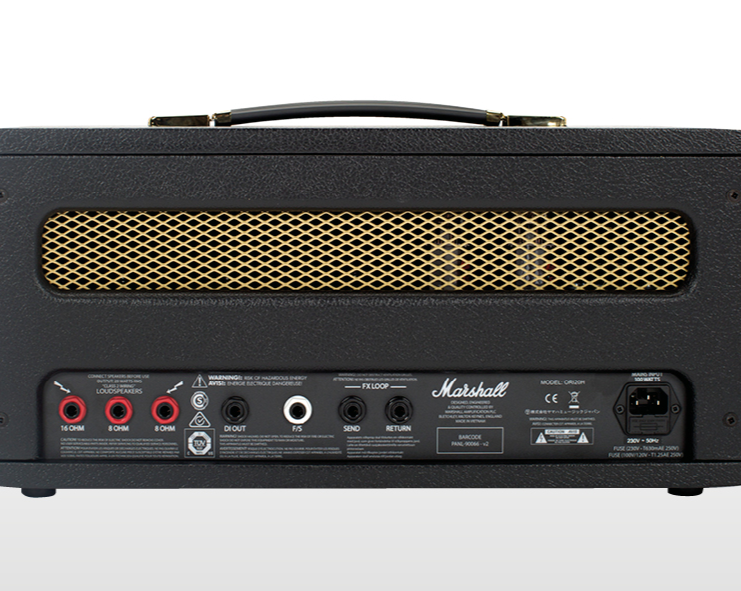

OUTPUTS
Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out (1/4" jack)
EFFECTS LOOP
Yes, Series, Send/Return
INPUTS
1 x 1/4" jack instrument input, footswitch
