Austroflamm Heidi Back 2.0 Stove

Heidi Back 2.0 Stove

Austroflamm Heidi Back 2.0 Stove

HEIDI BACK 2.0 STOVE

Baking, roasting, heating and still looking good at the same time? Only Heidi can do that! A generally large ceramic plate offers a lot of space for keeping things warm, while the baking compartment can be used for cooking e.g. roasts, cakes or bread. Of course you also get your fair share of the pleasure factor when heating.

Generous cast-iron doors allow an unrestricted view of the play of flames while you enjoy the cozy warmth. The icing on the cake is the new Air + air control as an accessory which automatically controls the air supply and thus ensures perfect heating results!

Austroflamm Heidi Back 2.0 Stove

INFORMATION

BRAND

Austroflamm

PRODUCT TYPE

Stove

COLLECTION

Heidi

MATERIAL

Steel

DIMENSIONS

- Height : 1074 mm
- Width : 620 mm
- Depth : 405 mm

DIMENSIONS (WITH AUSTROFLAMM ELBOW PIECE)

- A : 1641 mm
- B : 974 mm
- C : 687 mm
- D : 102 mm

DIMENSIONS (COMBUSTION CHAMBER)

- Width : 346 mm
- Height : 178 mm
- Depth : 283 mm

WEIGHT XTRA/STM

67/168

WEIGHT BASIC APPLIANCE

245 kg

SAFETY DISTANCES TO COMBUSTIBLE MATERIAL

- Front : 1200 mm
- Left : 50mm
- Rear : 50 mm

BALANCED FLUE - DIBT (GERMAN INSTITUTE FOR STRUCTURAL ENGINEERING)

Yes

Austroflamm Heidi Back 2.0 Stove

SIDE PANEL VERSION

Steel

FLUE PIPE OUTLET

150 mm

BAKING COMPARTMENT

Standard

SPACE HEATING CAPACITY, AT LEAST (DEPENDING ON THE BUILDING INSULATION) [MІ]

82

HEAT MEMORY SYSTEM (HMS)

Accessories

GLASS SHAPE

Round

CURVED GLASS

Flat

CLADDING MATERIAL / COLOUR

- Steel
- Iron-gray

Austroflamm Heidi Back 2.0 Stove

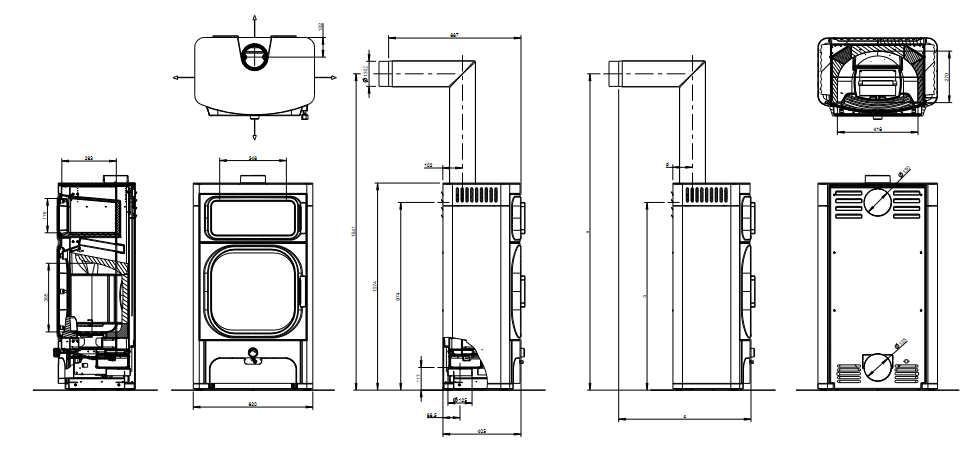

TECHNICAL DRAWING

SPACE HEATING CAPACITY, MAXIMUM (DEPENDING ON THE BUILDING INSULATION) [MІ]

210

FEDERAL EMISSION CONTROL ORDINANCE LEVEL

1+2

ENERGY EFFICIENCY CLASS

A+

NOMINAL HEAT EFFICIENCY IN [KW]

7.5

EXHAUST GAS MASS FLOW

6.3

FLUE GAS TEMPERATURE

260

RECOMMENDED FUELS

Billet wood

ROOM HEATING CAPACITY

- Min. Heat Output : 82
- Max. Heat Output : 210 m³
