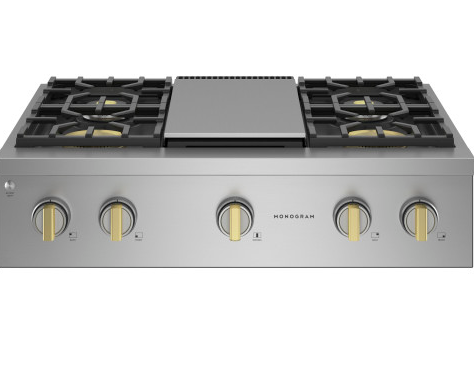

Monogram 36" Professional Gas Rangetop with 4 Burners and Griddle ZGU364NDTSS

MONOGRAM 36" PROFESSIONAL GAS RANGETOP WITH 4 BURNERS AND GRIDDLE

Monogram 36\

MONOGRAM 36" PROFESSIONAL GAS RANGETOP WITH 4 BURNERS AND GRIDDLE ZGU364NDTSS

LED Bullnose Task Lighting

FEATURES

VERSATILE GAS BURNER CONFIGURATION

Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

3-PIECE GRATES WITH REVERSIBLE WOK FEATURE

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

RING-LIT KNOBS

Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use

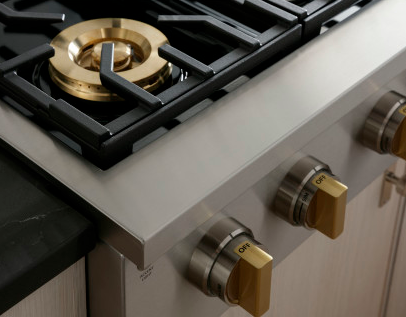

SOLID BRASS BLADES ON PRECISION MACHINED KNOBS

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Monogram 36\

SOLID BRASS BURNERS

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

SEAMLESS STAINLESS TOP FRAME

Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

STAINLESS AND ALUMINUM-CLAD GRIDDLE INCLUDED

This versatile griddle delivers 18,000 BTUs of cooking power, allowing fast and consistent heating across the entire cooking surface

INFORMATION

BRAND

Monogram

PRODUCT TYPE

Burner

GRIDDLE

18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled

COOKTOP BURNER GRATE FEATURES

Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates

CONTROL LOCATION

Upfront

IGNITION SYSTEM

Electronic

Monogram 36\

FUEL TYPE

Natural Gas (factory set)

AUTOMATIC RE-IGNITION

Yes

Monogram 36\

140 DEG. SIMMER BURNER

All Burners - Adjustabl

REMOVABLE DRIP TRAY LINERS

(1) Beneath Griddle

Monogram 36\

CABINET WIDTH

36 in

WEIGHT

135 lb

DIMENSION

- Overall Depth : 27 1/2 in
- Overall Height : 8 1/2 in
- Overall Width : 35 7/8 in

APPROXIMATE SHIPPING WEIGHT

163 lb

SHORT DESCRIPTION

36" Pro Rangetop with Griddle

APPEARANCE

-Design Style : Statement Collection
-Installation : Side-by-Side
-Color Appearance : Stainless Steel
-Control Knobs : Diecast Metallic (Included) Stainless Steel with Brass Accents

WARRANTY

-Labor Warranty : Limited 2-year entire appliance
-Warranty Notes : See written warranty for full details
-Parts Warranty : Limited 2-year entire appliance Limited 5-year gas surface burners

BURNER INDICATOR LIGHT

Yes

EXTRA LOW SIMMER

All Burners - Adjustable

Monogram 36\

CONFIGURATION

4 Burners; Griddle

STAINLESS STEEL GRILL / GRIDDLE COVERS

1

POWER / RATINGS

- Volts/Hertz/Amps : 120v; 60Hz; 15A
- Griddle BTU Rating (000's/BTU) - LP Gas : 16.0
- Griddle BTU Rating (000's/BTU) - Natural Gas : 18.0
- Top Burner BTU Rating - LP (000's BTU's) : (2) 21.0; (2) 12.0
- Top Burner BTU Rating - Nat. Gas (000's BTU's) : (2) 23.0; (2) 15.0

Monogram 36\

COOKTOP BURNER GRATE FEATURES

Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates

COOKTOP BURNER TYPE

2 Sealed, Dual Flame Stacked (Removable Brass Accents) 2 Sealed, Dual Ring

ACCESSORIES

-High Altitude Kit : WB28K10553
-Conversion Kit : Included - Nat. Gas to LP
-Factory-installed island backguard : Yes
-30/36" Monogram Knob Kit : ZXPR36KKTSS (SS, qty. 9)
-Optional Grill Accessory (Cast Iron) : UXPRRGG
-Optional Backguard : 12" stainless steel backsplash (UX12B36PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
