JVM205C AMPLIFIER

Marshall Jvm205c Amplifier

JVM205C AMPLIFIER

Intensify your tone with the JVM205C. With three different modes per channel, this 2x12” 50W combo can take you from clean to high-gain overdrive and anything in between. The pairing of one Celestion Vintage 30 and one Celestion Heritage speaker creates a warm, powerful blend that perfectly complements the amplifier. Whether you’re experimenting, performing or recording, this versatile amp is the complete package.

FFEATURES

SIX DISTINCT SOUNDS

Two channels, each with three gain modes, gives you access to a wide range of sounds and almost-endless options for refining your tone. Along with the three-way EQ in each channel, the Presence and Resonance controls let you shape the tone from the power amp.

Marshall Jvm205c Amplifier

THE HEART OF YOUR RIG

Connect a host of effects pedals and other external gear within the JVM’s two effects loops. The first loop is adjustable to let you perfectly blend your effects and original tone together. JVM amps can also receive and repeat MIDI commands for ultimate control and synchronising with the rest of your setup.

Marshall Jvm205c Amplifier

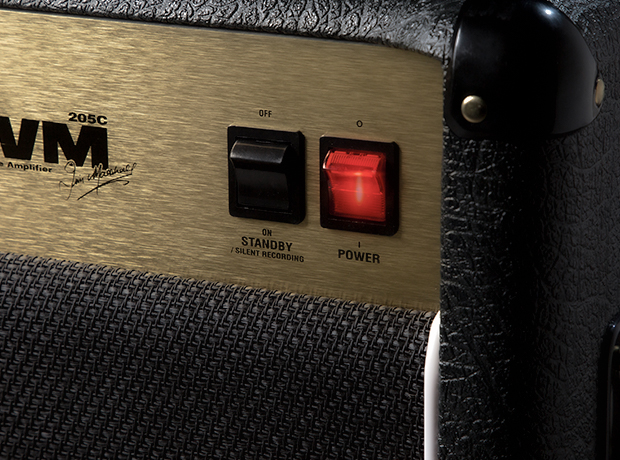

SILENT RECORDING

Take your sound from the stage to the studio with the flick of a switch. With the JVM in silent recording mode you can hook up to an interface or mixing desk to capture that perfect take.

Marshall Jvm205c Amplifier

INFORMATION

BRAND

Marshall

PRODUCT TYPE

Amplifier

MODEL

JVM205C

RANGE

JVM

INPUTS

1 x 1/4" jack instrument input, MIDI In, Footswitch

Marshall Jvm205c Amplifier

OUTPUTS

Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), Emulated Line Out (XLR), MIDI Thru

CONTROLS

Channel and mode select (button), gain (per channel), treble (per channel), middle (per channel), bass (per channel), reverb (per channel), presence, resonance, master volume select, master volume (switchable for each channnel)

TECHNOLOGY

Valve

CHANNELS

2 (Multi)

SPEAKER MODEL

- 1 x Celestion Heritage G12H (8Ω, 80w)
- 1 x Celestion Vintage (8Ω, 70w)

Marshall Jvm205c Amplifier

OUTPUT WATTAGE

50W

EFFECTS

Digital reverb

SPEAKER CONFIGURATION

2x12"

UNIT IMPEDANCE

16Ω

ACCESSORIES

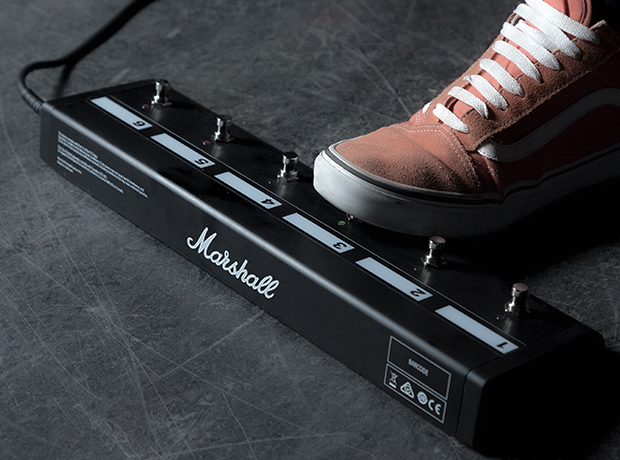

-Footswitch : PEDL-91006 included
-Cable : Detachable power cable included
-Dust cover : M-COVR-00073 (sold separately)

Marshall Jvm205c Amplifier

EFFECTS LOOP

- 2, 1 x series parallel
- 1 x series

WEIGHT

29.5 kg (65 lbs)

DOWNLOAD

↓ Manual

VALVES

-Preamp valves : 4 x ECC83, 1 x ECC83 (phase splitter)
-Power amp valves : 2 x EL34

DIMENSIONS

- Width : 690 mm (27.2")
- Height : 510 mm (20.1")
- Depth : 265 mm (10.4")

TECHNICAL DIAGRAM

Marshall Jvm205c Amplifier

THE ART OF AMP MAKING

-Here at Marshall we like to honour our roots. That’s why all our JVM amps are made the traditional way in our UK factory, from loading the circuit boards to the trademark black, white and gold finish. We assemble all the amps in this series by hand so you can feel the heart and soul of Marshall when you play.-The all-valve heart of the JVM205C includes four ECC83 preamp valves, an ECC83 phase splitter and two EL34 power amp valves. If that isn’t enough to get your blood rushing, the Celestion Heritage G12H and Celestion Vintage 30 speakers provide enough punch for any performance.
