Austroflamm Dexter S3 Stove

DEXTER 3 STOVE

Austroflamm Dexter S3 Stove

DEXTER 3 STOVE

Do you know the Tales of the 1001 Nights? The Dexter will enchant you with a similar number of combination options. You have a choice between corner doors (Dexter 2.0, short side left or right) or three-sided glazing (Dexter S3). The extension boxes can even take a whole load of Heat Memory System heat storage mass.

INFORMATION

BRAND

Austroflamm

PRODUCT TYPE

Stove

COLLECTION

Dexter

MATERIAL

Steel

DIMENSIONS

- Height : 955 mm
- Width : 618 mm
- Depth : 424 mm

DIMENSIONS (FIREBOX)

- Width : 360 mm
- Height : 430 mm
- Depth : 230 mm

DIMENSIONS

- A : 1521 mm
- B : 860 mm
- C : 553 mm
- D : 231 mm

WEIGHT STM/HMS

165/45 kg

FLUE PIPE OUTLET

150 mm

FLUE PIPE CONNECTION, MIDDLE

860 mm

TESTING

Federal Emission Control Ordinance Level : 1+2

SAFETY DISTANCES TO COMBUSTIBLE MATERIAL

- Front : 1100 mm
- Left : 600 mm
- Rear : 150 mm

Austroflamm Dexter S3 Stove

BALANCED FLUE - DIBT (GERMAN INSTITUTE FOR STRUCTURAL ENGINEERING)

Yes

SIDE PANEL VERSION

Steel

CLADDING MATERIAL / COLOUR

- Steel
- Iron-gray

CORNER INSTALLATION*

- Front : 1100* mm
- Side :  150* mm

RECOMMENDED FUELS

Billet Wood

HEAT MEMORY SYSTEM (HMS)

Accessories

DATA FOR THE CHIMNEY SWEEP

- Exhaust gas mass flow : 6.41 (g/s)
- Flue gas temperature : 302 (°C)
- At 0.8 times nominal heat Output : 8 (pa)
- Minimum delivery pressure at nominal heat output : 11 (pa)

Austroflamm Dexter S3 Stove

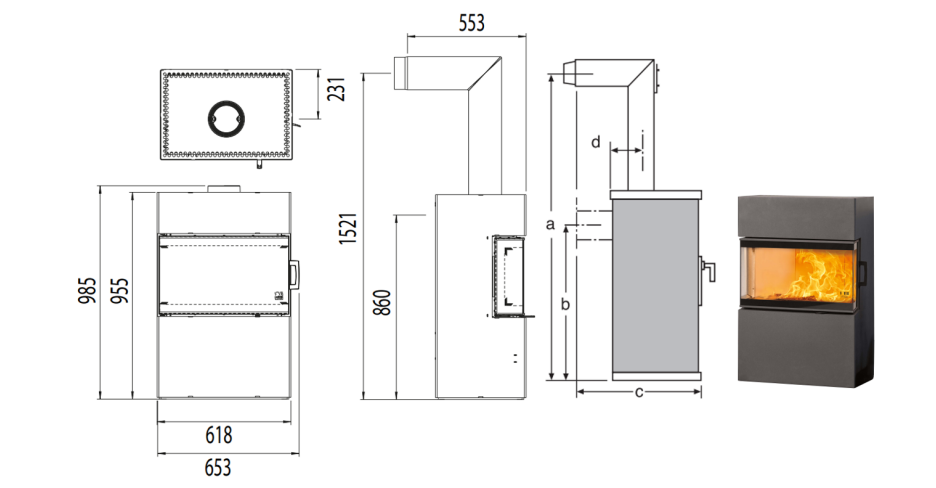

TECHNICAL DRAWING

HEAT OUTPUT

- Min. Heat Output : 3.5 kw
- Max. Heat Output : 8.0 kw

ENERGY EFFICIENCY CLASS

A

NOMINAL HEAT EFFICIENCY

6.0 kw

ROOM HEATING CAPACITY

- Min. Heat Output : 65 m³
- Max. Heat Output : 165 m³

CURVED GLASS

Flat

EXTERNAL AIR CONNECTION / BALANCED FLUE OPERATION

Below

DETAIL

The clever modular elements, which with their open side also act as wood storage boxes, make the Dexter into a real furniture system.
