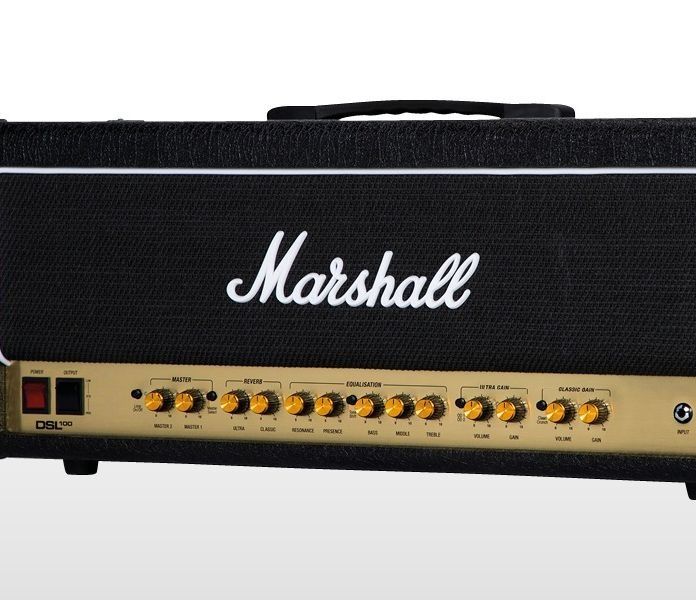

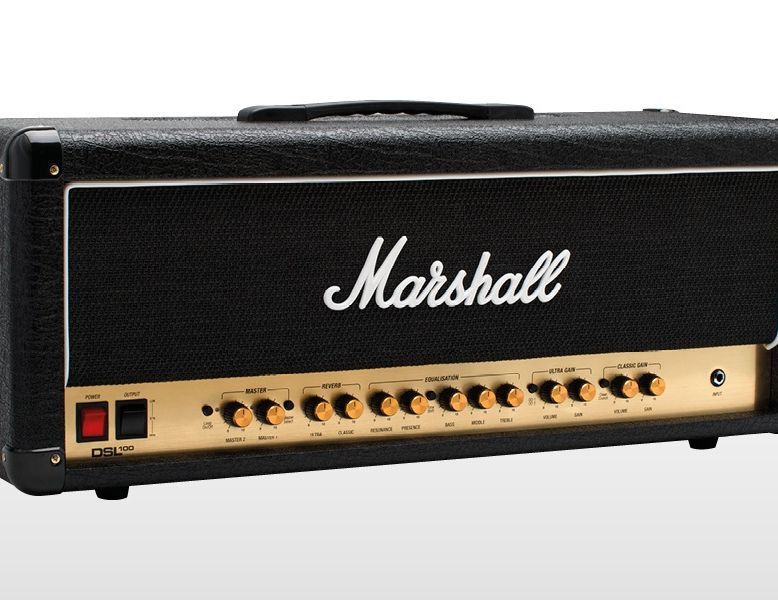

Marshall DSL100H Amplifier
DSL100H AMPLIFIER
DSL100H AMPLIFIER
The DSL100H has two gain channels to produce that legendary Marshall sound with rich functionality for those who require flexibility and unquestionable quality.
The amp can move between two sounds within each gain channel, so that players can create and release their personality through sound.
FEATURES
INFORMATION
BRAND
Marshall
DUST COVER
M-COVR-00115 (sold separately)
OUTPUT WATTAGE
100W (with power reduction option to 50W)
MODEL
DSL100HR
RANGE
DSL
CHANNELS
2 (Split) "Ultra gain" and "classic gain"

DIMENSIONS
- Width : 740 mm / 29.1"
- Height : 274 mm / 10.8"
- Depth : 242 mm / 9.5"
OUTPUTS
Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4" jack emulated line out
EFFECTS
Digital reverb
EFFECTS LOOP
Yes, Series, Send/Return
INPUTS
1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, MIDI in, footswitch

CABLE
Detachable power cable included
FOOTSWITCH
PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 - Clean (classic green) 2 - Crunch (classic red) 3 - OD1 (ultra green) 4 - OD2 (ultra red) 5 - Master 1/Master 2 (toggle) 6 - FX Loop on/off
PREAMP VALVES
4 x ECC83
TECHNOLOGY
Valve
WEIGHT
24.2 kg / 53 lbs
POWER AMP VALVES
4 x EL34
CONTROLS
Loop on/off switch, master volume II, master volume I, master select switch, reverb (ultra gain channel), reverb (classic gain channel), resonance, presence, tone shift switch, bass, middle, treble, ultra gain channel (OD1/2 switch, volume, gain), classic gain channel (clean/crunch switch, volume, gain), low power option (on rear)
