World Dryer Smartdri® Series Hand Dryer
SMARTDRI® SERIES HAND DRYER
SMARTDRI® SERIES HAND DRYER
Smartdri models are both user- and eco-friendly. They dry hands in as little as 10 seconds, while operating efficiently and gently.
From a touchless sensor operation to adjustable controls, they bring a sanitary, comfortable drying experience to your restroom.
INFORMATION
PRODUCT TYPE
Hand Dryer
PRODUCTION
Made in United States
COVER FINISH
- White
- Black
- Brushed
- Polished
ELECTRICAL: 208- 240 V (CERTIFICATION)
- CE & IP24
- TUV-GS
- GreenSpec
- Certification: cULus
ELECTRICAL: 208- 240 V
- 60 Hz
- 425-1250 Watts
- 208-240 V - 1.8 -5.2 Amps
OPERATION
Automatic
ADA COMPLIANT
Available with Recess Kit
ELECTRICAL (110-120V)
- 60 Hz
- 400-1200 Watts
- 110-120 V - 3.3-10 Amps
DIMENSIONS
- Height : 25.0"
- Length : 14.2"
- Width : 4.0"
FAST DRY TIME
Dries hands in as little as 10 seconds
VOLTAGE
Available in 120 V and 240V models
EXTENDED LIFE
Motor lasts up to 3 times longer than the competition
WARRANTY
10 Year Limited
DRY TIME
10 Second Dry Time
SHIPPING SIZE
- Height : 30"
- Length : 15"
- Width : 7.88"
RECESS KIT (SHIPPING SIZE)
- Height : 14.7"
- Length : 11.4"
- Width : 10.8"
RECESS KIT (UNIT SIZE)
- Height : 12.5"
- Length : 9.3"
- Width : 7.6"
POWER
400 - 1200 Watts
FREQUENCY
50 / 60 Hz
RECOMMENDED CIRCUIT
Dedicated 15 Amp
PRODUCT BENEFITS
-Energy efficient utilizing only 12% energy of traditional dryers and up to 50% less energy than competitive high-speed hand dryers. -Intelligent on/off heating and 3-speed motor controls optimize energy efficiency and user comfort -Extended life motor with 2-3 times longer service life than competitive high-speed dryers -Antimicrobial technology protects the treated surfaces on the dryer by inhibiting the growth of bacteria, mold and fungus that can cause stains, odors or deterioration
ENERGY EFFICIENT
Uses up to 80% less energy than conventional hand dryers
IP RATING
P24 protection against harmful water ingress
FLEXIBLE
Adjusts between on/off heating and 3-speed motor controls to optimize sound, comfort and energy efficiency
HYGIENIC
Antimicrobial technology protects the treated surfaces on the dryer by inhibiting the growth of bacteria, mold and fungus that can cause stains, odors or deterioration.

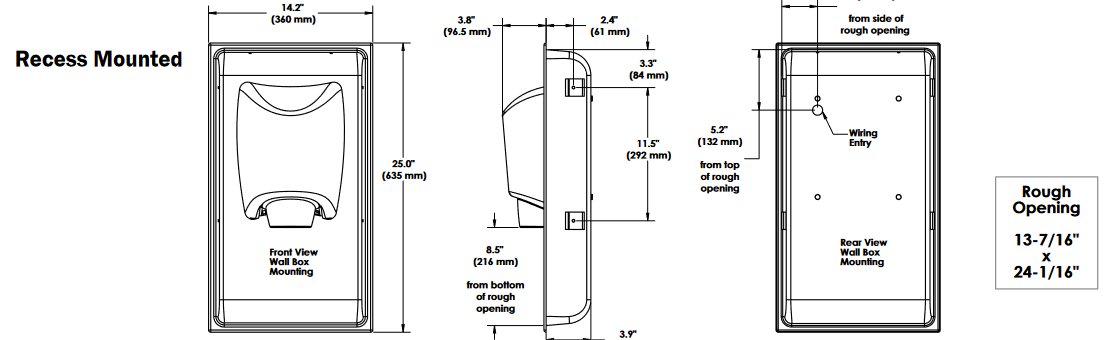

TECHNICAL DRAWINGS
