Hako Scrubmaster B400 R Series Floor Cleaner

SCRUBMASTER B400 R SERIES FLOOR CLEANER

Hako Scrubmaster B400 R Series Floor Cleaner

SCRUBMASTER B400 R SERIES FLOOR CLEANER

Ride-on scrubber-driers and vacuum sweeper & scrubber-drier combi machines for extra-large areas

Industrial and commercial areas are constantly increasing in size, and applications are becoming ever more specific. Hako’s new Scrubmaster B400 R Series meets the requirements associated with large-scale tasks.

Both the new scrubber-driers and vacuum sweeper & scrubber-drier combi machines ensure long, uninterrupted working, with high area performances of up to 14,000 m2/h thanks to large 400-litre solution and recovery tanks, and a maximised battery capacity provided by the optional battery changing system.

Hako Scrubmaster B400 R Series Floor Cleaner
Hako Scrubmaster B400 R Series Floor Cleaner

The new product series offers a particularly wide range of application options through three different machine variants, 3-disc-brush units available in working widths of 123 cm and 155 cm, sophisticated extras as a standard, as well as numerous individually selectable options and tools for more efficiency, flexibility and occupational safety.

FEATURES

COMFORTABLE BOARDING

The large, slip-proof tread steps enable easy boarding of the mobile workplace from both sides.

Hako Scrubmaster B400 R Series Floor Cleaner

MORE HYGIENE

Hako-AntiBac®, which equips the tanks with antibacterial properties, reduces fungal and bacterial growth, odour development, and the consumption of tank cleaning disinfectants.

Hako Scrubmaster B400 R Series Floor Cleaner

PROTECTS RESOURCES

Hako-AquaControl saves up to 50% water during the cleaning process, thanks to intelligent brush systems and automated water-stop when the machine stands still.

Hako Scrubmaster B400 R Series Floor Cleaner

SUPERIOR COMFORT

The Scrubmaster B400 R Series has been awarded the AGR (Aktion Gesunder Rücken e.V.) quality label for its overall ergonomic machine concept.

Hako Scrubmaster B400 R Series Floor Cleaner

HEIGHT-ADJUSTABLE STEERING WHEEL

The steering wheel can be adjusted to the driver’s height to ensure comfortable working and a back-friendly seating position.

Hako Scrubmaster B400 R Series Floor Cleaner
Hako Scrubmaster B400 R Series Floor Cleaner

BRUSH WEAR INDICATOR

In order to ensure consistently good cleaning results, a mechanical, easy-to-read brush wear indicator is installed on the outside of the machine.

Hako Scrubmaster B400 R Series Floor Cleaner

SELF-CLEANING SQUEEGEE

The squeegee can be rinsed automatically to make daily machine cleaning easier for the operator while increasing hygiene at the same time. In addition, the squeegee folds up manually to facilitate thorough cleaning and maintenance.

Hako Scrubmaster B400 R Series Floor Cleaner

EVERYTHING AT A GLANCE

The clearly-arranged, easy-to-read operating panel with LCD display and reset button is self-explanatory and allows intuitive use. In addition, the one-button operating system starts all major cleaning functions at the push of a button.

Hako Scrubmaster B400 R Series Floor Cleaner

MADE FOR EXTREME WORKING ENVIRONMENTS

With its heavy-duty steel-frame design, high-quality materials and clever details such as side bumpers providing protection against collisions, the Scrubmaster B400 R Series guarantees a long service life even in demanding environments.

Hako Scrubmaster B400 R Series Floor Cleaner

EASY AND SAFE

The 400-litre solution and recovery tank is equipped with a two-stage filter system for coarse and fine dirt to ensure that the recovered water is already filtered before it flows back into the tank. The filters are uncomplicated to access and easy to clean.

INFORMATION

BRAND

Hako

PRODUCT TYPE

Floor Cleaner

CONFIGURATION

Individually configurable with numerous optional extras and tools

Hako Scrubmaster B400 R Series Floor Cleaner

SURFACE LEVEL

X-AC front and rear drive (optional) for improved traction and a powerful performance on both level surfaces and inclines of up to 15% in cleaning mode

VARIANTS

Low-dust sweeping and reduced fine particulate emissions with DustStop (variants Scrubmaster B400 RH and B400 RM)

CERTIFIED

AGR-certified, ergonomic workplace with height-adjustable steering wheel ensures back-friendly working

WIDTH

3-disc-brush units with working widths of 123 cm or 155 cm

BATTERY

Maximised battery capacity provided by the optional battery changing system

PERFORMANCE X-AC: POWERFUL PERFORMANCE ALSO ON INCLINES

The Scrubmasters of Hako’s B400 R Series can be equipped with an electronically modulating X-AC front and rear drive, which provides improved traction in cleaning mode. Our X-AC variants can effortlessly clean ramps and inclines of up to 15% without any loss of performance. This makes it easy to plan and carry out cleaning jobs in application areas with level surfaces as well as ascending and descending surfaces, such as multi-storey parking garages. Additional manual cleaning of ramps is not necessary – this saves both time and costs.

Hako Scrubmaster B400 R Series Floor Cleaner

TECHNICAL PERFECTION

1. 400-litre solution and recovery tank
2. Ergonomic workplace and intuitive operation
3. 150-litre dirt hopper
4. Pre-sweep unit
5. Collision-proof frame
6. Side broom with DustStop (option)
7. 3-disc-brush unit, 123 or 155 cm working width
8. Fold-up squeegee facilitates daily maintenance

THE NEW DIMENSION FOR VERY LARGE AREAS

-M
ore output : With area performances of up to 14,000 m2/h and a modulating X-AC front and rear drive (option) for improved traction on both level surfaces and inclines of up to 15 % in cleaning mode.
-More possibilities : With numerous individual extras and optional tools such as an on-board wastewater treatment system, high-pressure cleaners, safety equipment, and much more.

-More comfort : With a back-friendly overall machine concept, power-assisted steering, and easy-to-reach components for uncomplicated daily maintenance and machine-cleaning tasks.

TECHNICAL DATA

The Scrubmaster B400 R Series at a glance

SCRUBMASTER B400 RUNITSB400 R/RM/RH 1230B400 R/RM/RH 1550
Working Width Scrubbingcm123155
Squeegee Widthcm136166
Theoretical Area Performancem²/h1100014000
Max. Climbing Capacity/in Cleaning Mode Without/with X-ac%6 / 156 / 15
Working Speedkm/h99
Brush System/number Of Brushes-disc/3disc/3
Brush Contact Pressurekg55-75-9580-110-140
Solution And Recovery Tank Capacityl400400
Dirt Hopper Capacity (Gross)*take-it-easy High Dumpl2 x 442 x 44
Nominal VoltageVolt3636
Total Output
kW14.716
Battery Capacity Max.Ah540/810540/810
Length With Squeegee R/RM/RHcm202 / 281 / 281202 / 281 / 281
Width Without/with Squeegeecm130 / 136160 / 166
Height Without/with Overhead Guardcm150 / 212150 / 212
Weight, Ready To Use, Without Driverkg2110 / 2260 / 24202130 / 2280 / 2440
Noise Level At The Driver’s Ear R/RM/RHdB(A)68 / 74 / 7468 / 74 / 74

DETAIL

HIGH AREA PERFORMANCE

With its high area performance and small turning circle, the compact scrubber-drier Scrubmaster B400 R reliably provides clean floors.

Hako Scrubmaster B400 R Series Floor Cleaner

-Complete U-turns in aisles as small as 230 cm -Quick-connect system allows uncomplicated upgrading with pre-sweep tools or special equipment

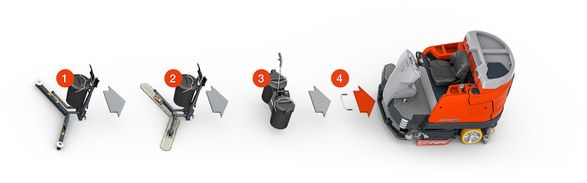

EXTENDED APPLICATION OPTIONS WITH HAKO'S QUICK-CONNECT SYSTEM

Where coarse dirt or light debris accumulates in addition to dust and dirt, or for areas that require pre-cleaning, the quick-connect system (option) provides uncomplicated upgrading of the Scrubmaster B400 R with additional tools.

1. Tool Pre-sweep unit “Broom”
2. Tool Pre-sweep unit “Mop”
3. Tool Light-debris collector
4. Tool quick-connect system

Hako Scrubmaster B400 R Series Floor Cleaner

UP THE AISLE, BACK DOWN THE AISLE – DONE

The Scrubmaster B400 R is extremely compact and enables complete U-turns in aisles as small as 230 cm. And our 155-cm-working-width variant is a real timesaver when it comes to cleaning aisles of up to 3 metres: One pass up and back down the aisle is sufficient to provide excellent cleaning results.

Hako Scrubmaster B400 R Series Floor Cleaner

UPGRADE OPTIONS

Hako Scrubmaster B400 R Series Floor Cleaner

STVO LIGHTING SYSTEM

To ensure better visibility, e.g. when working outdoors, the Scrubmasters can be equipped with StVO-approved lighting systems.

Hako Scrubmaster B400 R Series Floor Cleaner

OVERHEAD GUARD

The machines can be equipped with an overhead guard to protect the driver against objects falling from above, for instance in large warehouses.

Hako Scrubmaster B400 R Series Floor Cleaner

BATTERY CHANGING SYSTEM

The optional battery changing system maximises the battery capacity to enable long operating times. Changing the drive batteries is uncomplicated and simple, no tools required.

Hako Scrubmaster B400 R Series Floor Cleaner

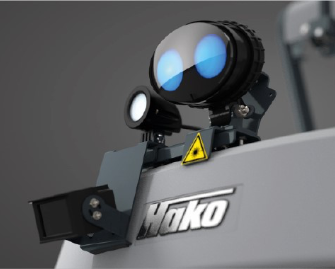

SAFETY EQUIPMENT

When working in complex environments with many transverse aisles, the BlueSpot light indicates an approaching vehicle before it becomes visible to people or other vehicles crossing. The rear-view camera provides additional safety.

REVERSING SYSTEM

The rear-view camera installed at the rear end of the machine and the monitor next to the operating panel provide increased rearward vision when reversing.

Hako Scrubmaster B400 R Series Floor Cleaner

HIGH-PRESSURE CLEANER

The on-board high-pressure cleaner with built-in power supply provides a pressure of 120 bar at 6 l/min to clean corners, pillars and walls.

Hako Scrubmaster B400 R Series Floor Cleaner

ON-BOARD WASTEWATER TREATMENT SYSTEM

The wastewater treatment system integrated in the machine provides extended operating times with one and the same tank filling. The fact that the water in the tank needs to be changed less often also has a positive impact on the environment.

Hako Scrubmaster B400 R Series Floor Cleaner

ON-BOARD DOSING

Fully integrated in the machine design, the on-board dosing system automatically adds just the right quantity of cleaning detergents, depending on the amount of water supplied to the system during the cleaning process. For more safety in the handling of chemicals.

Hako Scrubmaster B400 R Series Floor Cleaner
