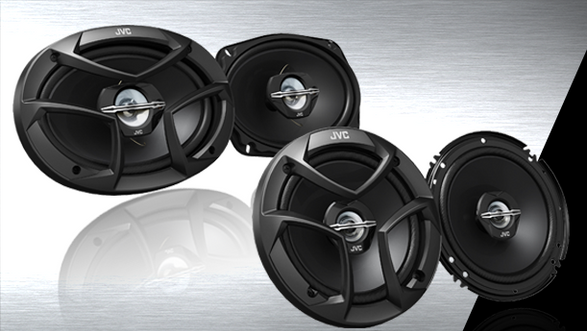

Jvc CS-J620 Speakers
CS-J620 SPEAKERS
CS-J620 SPEAKERS
2-Way Coaxial Speakers
INFORMATION
BRAND
Jvc
PRODUCT TYPE
Speaker
PRODUCTION
Made In Japan
DIAPHRAGM
Mica Cone/Poly-Ether Imide
TYPE
Balanced
MAGNET
Ferrite Magnet
SURROUND
Hybrid Surround (Rubber & Cloth)
POWER HANDLING CAPACITY (PEAK POWER)
300W
FREQUENCY RESPONSE
35 - 22,000Hz
SIZE TWEETER
2.5 cm (1")
IMPEDANCE
4 ohms
POWER HANDLING CAPACITY (RMS)
30W
SIZE
15 x 23 cm (6'' x 9'')
SOUND PRESSURE LEVEL
92dB/W.m
SIZE WOOFER
16 cm (6-1/2")
WEIGHT (W.GRILLE)
0.4kg (0.89lbs)
WEIGHT (W/O GRILLE)
0.37kg (0.82lbs)
MAGNET MASS
102g (3.6oz)
MOUNTING DEPTH
43mm (1-23/32")
FEATURES
MICA CONE
Lightweight woofer cone with good movement
HYBRID SURROUND
Materials and shapes with good movement
NEODYMIUM MAGNET (TWEETER)
Provides detailed high range and smooth mid range.
