Monogram 30" Minimalist Warming Drawer ZTW900SSNSS
MONOGRAM 30" MINIMALIST WARMING DRAWER ZTW900SSNSS
MONOGRAM 30" MINIMALIST WARMING DRAWER ZTW900SSNSS
On/Off Rocker Switch
Streamlined design and precisely machined metals create a contemporary yet functional aesthetic
INFORMATION
CONTROL TYPE
On/Off Rocker Switch
BRAND
Monogram
PRODUCT TYPE
Warming Drawer
POWER CORD LENGTH
4' 8"
INDICATOR LIGHTS
"ON"
RECEPTACLE TYPE
3-Prong Grounding
FULL EXTENSION BALL BEARING GLIDES
Yes
VARIABLE TEMPERATURE CONTROL
Proof(80) / Low(140) / Med(170) / High(210)
INDICATOR LIGHT
Convenient and tastefully unobtrusive indicator light illuminates when the drawer is on, for a functional yet contemporary aesthetic.
HALF RACK
Yes
VARIABLE HUMIDITY CONTROL
Crisp - Moist
FRAMELESS FRONT
Expertly engineered for style, simplicity and functionality, the drawer’s frameless front blends in seamlessly with its surroundings.
NET WEIGHT
59 lb
CABINET WIDTH
30 in
DIMENSIONS
- Overall Depth : 23 1/4" (59.0 cm)
- Overall Height : 10 1/2" (26.7 cm)
- Overall Width : 29 3/4" (75.5 cm)
CUTOUT DIMENSIONS
- Depth : 23 1/2" (59.7 cm)
- Height : 9 1/4" (23.5 cm)
- Width : 28 1/2" (72.4 cm)
INTERIOR DIMENSIONS
- Depth : 22-1/16 in
- Height : 6-1/4 in
- Width : 23-7/8 in
OVERALL DEPTH WITH HANDLE
26 1/4 in
APPROXIMATE SHIPPING WEIGHT
65 lbs. (29.6 kg)
![Monogram 30\](http://{"type":"application/jidipi-edit","data":"<figure class=\\"jdp-reset jdp-image-figure\\" data-ce-tag=\\"image-figure\\"><div class=\\"jdp-mask\\" data-ce-tag=\\"mask\\"><img src=\\"https://upload.jidipi.com/posts/d00095685/3-dG4.jpg\\" data-image-id=\\"65dd91b2ce6d238af2cfea4b\\" srcSet=\\"https://upload.jidipi.com/fit-in/420x0/posts/d00095685/3-dG4.jpg 420w, https://upload.jidipi.com/fit-in/700x0/posts/d00095685/3-dG4.jpg 700w, https://upload.jidipi.com/fit-in/900x0/posts/d00095685/3-dG4.jpg 900w\\" data-image-name=\\"3.jpg\\" width=\\"2400\\" height=\\"2500\\" loading=\\"lazy\\" class=\\"jdp-image jdp-reset\\"/></div></figure>"})
TOTAL AMPS
15 Amps
ELECTRICAL RATING
450W @ 120V/60Hz
VARIABLE HUMIDITY CONTROL
From crispy to moist, achieve exactly the right texture with variable humidity control that enhances every culinary creation.
MODEL
ZTW900SSNSS
TOTAL CAPACITY (CUBIC FEET)
1.9 cu ft
APPEARANCE
- Handle Design : Minimalist
- Handle Color : Stainless Steel
- Color Appearance : Stainless Steel
- Design Style : Minimalist Collection
- Installation : Flush Installation Capable Under Cooktop Under Wall Oven
ELEVATED HALF RACK
Ideal for keeping food warm, the elevated half rack maximizes drawer space, simplifying the art of meal preparation.
THE MONOGRAM MINIMALIST COLLECTION
Streamlined design and precisely machined metals create a contemporary yet functional aesthetic
WARRANTY
-Labor Warranty : Limited 2-year entire appliance
-Parts Warranty : Limited 2-year entire appliance
-Warranty Notes : See written warranty for full details
VOLTS/HERTZ/AMPS
120V/60Hz/15Amps
HEATING ELEMENT WATTAGE
450W

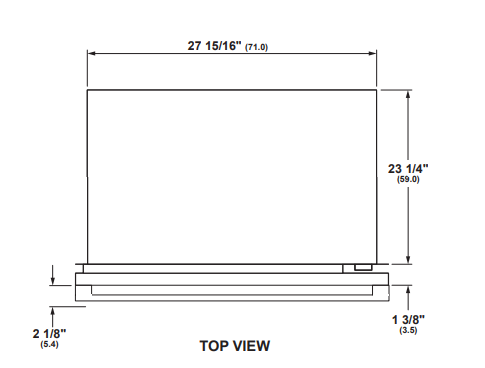

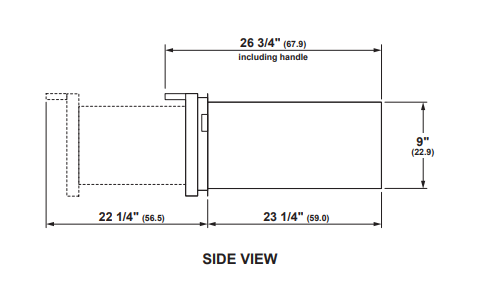

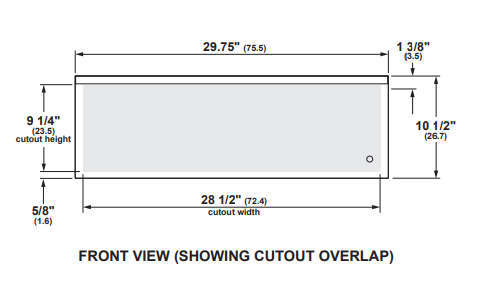

TECHNICAL DRAWINGS
