Wharfedale Elysian 4 Loudspeakers

ELYSIAN 4 LOUDSPEAKERS

A genuine example of luxury audio, ELYSIAN offers indulgence in design, materials, aesthetics and performance.

BASS DRIVER

8.5" (220mm) coated fibre glass matrix cone x 2

IMPEDANCE

- Minimum Impedance : 3.2Ω
- Nominal Impedance : 4Ω (compatible 8Ω)

CABINET VOLUME

- 38L
- 79.4L

FREQUENCY RESPONSE(+/-3DB)

30Hz ~ 22kHz

ELYSIAN AMT

Air motion transformer

The AMT (Air Motion Transformer) is a radically different way of moving air. A large, pleated, lightweight diaphragm is driven across its surface by rows of strategically placed metallic strips immersed in a strong magnetic field. Under the influence of the musical drive the pleats in the diaphragm contract and expand, squeezing the air between them to form the desired waveform.

Not only is this an efficient way of moving air but it is also very accurate as the diaphragm is under close control of the motor system at all times. In addition, the AMT is a velocity, rather than pressure, transducer, capable of producing scintillatingly fast transients and dynamics.

The result is a wide bandwidth device that achieves low distortion naturally and delivers wonderful musical detail.

ELYSIAN BASS

The midrange unit is matched with a glass fibre matrix cone for the bass unit, in this case, terminated with a highly flexible rubber surround and driven by a specially developed low-distortion motor system.

Mounted on a die-cast aluminium chassis, the magnet system features an aluminium ring for eddy current control, immersing the 17.5mm long, 38mm diameter voice coil in high flux over 12mm of linear excursion.

In order to plumb the depths of the lowest frequencies in recorded music, the 220mm bass units – one in the ELYSIAN 2 and two in the ELYSIAN 3 and 4 which are capable of reaching down below 28Hz in-room, revealing the full body and impact of percussion, stringed and wind instruments.

ELYSIAN CABINET

Revised in format, for a reduced footprint and arguably easier to accommodate format but nevertheless designed to enhance the acoustic output of the drivers and provide a piece of furniture of which the owner can be justly proud, the Elysian 3 cabinet’s handcrafted veneers are enhanced by true piano finish lacquers, hand-polished to six levels of depth to give a truly beautiful finish.

Beneath the veneer is a sandwich of woods of differing density, designed to reduce panel resonance to below audibility.

Named PROS (Panel Resonance Optimisation System), this multi-layer construction also inhibits the leakage of unwanted sound energy from inside the cabinet, which would otherwise interfere with the forward output of the drive units.

ELYSIAN MIDRANGE

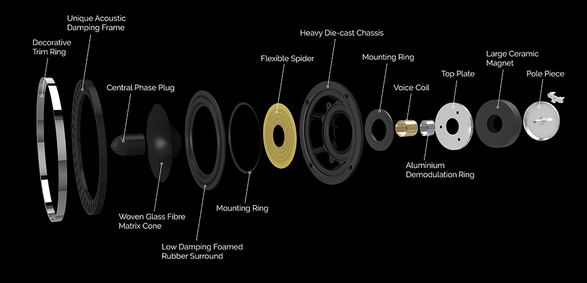

In the spirit of Gilbert Briggs, who was well known for experimenting with new driver materials, Wharfedale investigated a range of options to match the sensitivity and accuracy of the AMT treble unit.  The designers settled on a proprietary woven glass fibre matrix, formed into a 150mm cone. This provides a superb combination of low mass and high strength, with the addition of a high-plasticity coating to control its acoustic behaviour. With such a low-mass cone, only a low-damping, foamed, rubber-like material would match the surround – again, coated for durability.

Drive energy for the cone comes from a 25mm, 2-layer voice coil centred in a magnetic gap fitted with an aluminium ring to control eddy currents, linearise inductance and so increase bandwidth and reduce distortion.

The whole assembly is fitted to a die-cast aluminium basket with large ventilation windows below the spider to improve transient response. A central phase plug is specially shaped to linearise the output across a wide bandwidth, even off-axis, enhancing a natural response to the music which can be heard anywhere the listener wishes to sit.

This midrange driver enables the ELYSIAN speakers to deliver voices and instruments with astonishing realism. Vocalists seem to be present in the room with the listener – simply close your eyes and listen to the palpable presence of singers in the acoustic space.

ELYSIAN CROSSOVER

The bass units are loaded by an advanced version of Wharfedale’s signature slot-loaded port. Christened SLPP (Slot-Loaded Profiled Port), it ensures that the rear output of the bass units is not wasted. Instead, the lowest frequency energy is vented to a slot at the base of the speaker, specially profiled to equalise the high internal pressure to the low pressure in the room. This reduces the distortion that is typical of bass reflex system and increases the port’s efficiency. In addition, because the air is dispersed uniformly in the room, the speakers are less fussy about siting.

In combination, the bass units and SLPP bass reflex system provide the massive foundation upon which the rest of the musical performance sits, letting you feel as well as hear the full impact of thunderous low-frequency information.

High overall system sensitivity, in the region of 92dB for 1 Watt of input, allows any amplifier to reveal the full dynamic range of the music fed to it, without strain or limitation. Combining the outputs of the drivers is an advanced computer-modelled crossover that has been developed over hundreds of hours of listening tests, fine-tuned to make sure that the blend between the drive units is seamless.

Crossover slopes have been modelled on each individual driver’s acoustic response, matched to Linkwitz-Riley characteristics, with the crossover frequencies chosen to maximise the optimum, linear performance of each drive unit.
