PLATINUM SMART-HEAT™ ELECTRIC

Looking for a heater that offers the most effective heating technology, an award-winning design and very little light emission? You found it. With its ultra-slim, high-quality 304 stainless steel chassis and Schott tinted ceramic-glass screens, the award-winning Platinum Smart-Heat™ Electric virtually disappears into its surroundings while delivering market-leading radiant heat output that will warm you and not the air – just like the sun.

Available in both black and white and three sizes (2300W, 3400W and 4500W), this premium heater was specifically designed for low-clearance, semi-enclosed spaces and can be mounted with minimal clearance requirements.

Bromic  Platinum Smart-Heat™ Electric

INFORMATION

BRAND

Bromic

PRODUCT TYPE

Electric outdoor Heater

Bromic  Platinum Smart-Heat™ Electric

PRODUCT CODE

- BH3130017
- BH3623009
- BH3130023-1
- BH3130024-1

RATED CURRENT

- 220 - 240V/9.6A 208V/11.1A
- 220 - 240V/14.2A/208V/16.3A
- 220 - 240V/18.8A/208V/21.6A

WALL

72"

CEILING

96”

OUTPUT

38,500 BTU

HEATER COVER PRODUCT CODE

BH3030010

CLEARANCE

With a wide array of mounting options, Bromic offers solutions to compliment any décor and provide functionality for ambiance and comfort.

Bromic  Platinum Smart-Heat™ Electric

TECHNICAL DRAWING

Bromic  Platinum Smart-Heat™ Electric

FEATURES & BENEFITS

Built with premium stainless-steel construction, complete with a sleek ceramic glass screen and a fully enclosed body, the Platinum Electric heater provides even heat distribution to outdoor spaces.

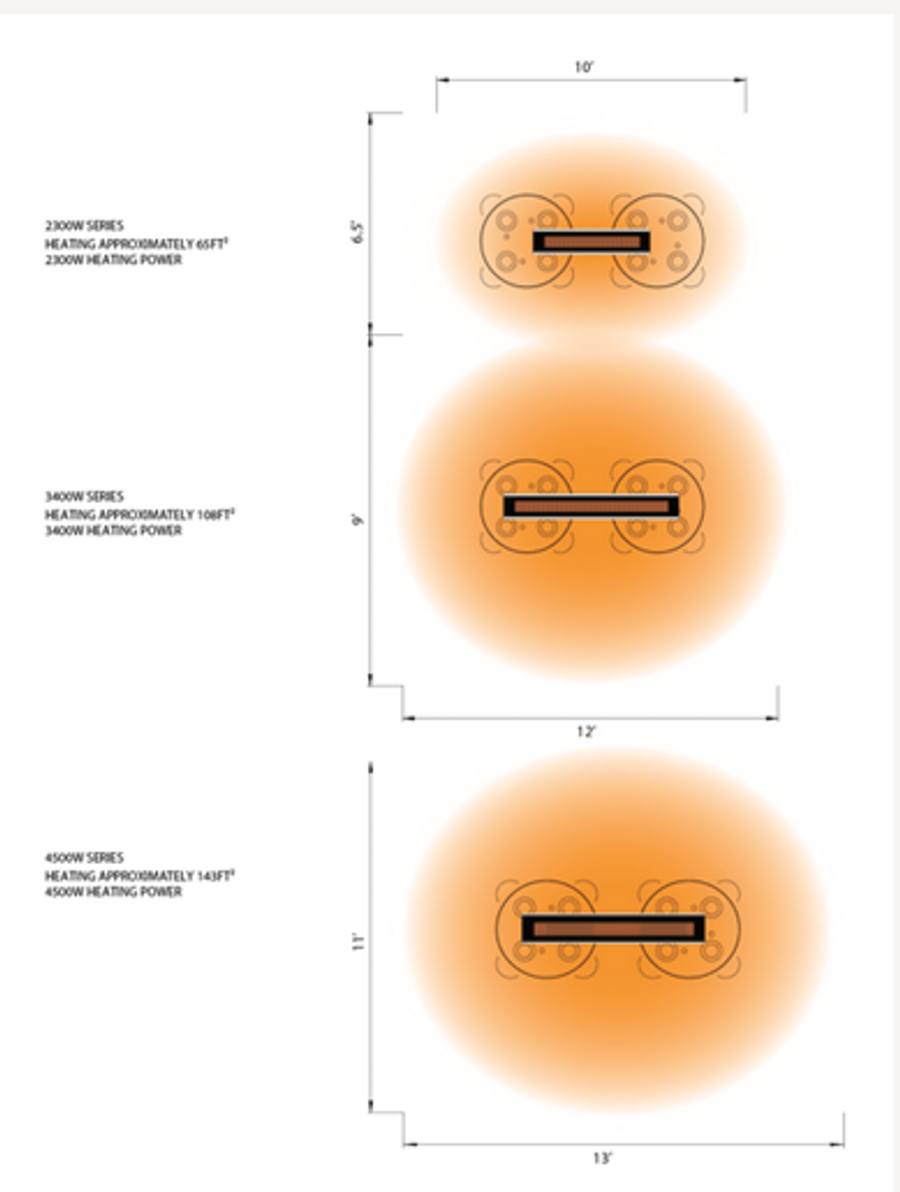

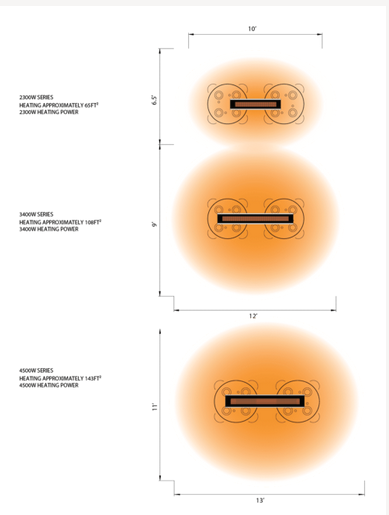

HEAT BLOOMS

Bromic  Platinum Smart-Heat™ Electric

CEILING MOUNT

Included

COLOR

- White
- Black

HEAT AREA

- 65FT
- 108FT
- 143FT

DETAIL

The ultimate in seamless slim-line design. The award-winning Platinum Smart-Heat™ Electric heater series is specifically suited to seamlessly blend into low-clearance and design-focused spaces. Available in black or white with three power options and a wide array of ceiling, wall, and flush-mounting options.

SPECIFICATIONS

MODEL2300W SERIES2300W SERIES3400W SERIES3400W SERIES4500W SERIES4500W SERIES
FUEL TYPEElectricElectricElectricElectricElectricElectric
COLORBlackWhiteBlackWhiteBlackWhite
MODEL #BH0320003BH0320007BH0320005BH0320008BH3622000BH3622001
HEAT AREA65ft265ft2108ft2 108ft2 143ft2 143ft2
RATED CURRENT *220-240V/9.6A208V/11.1A220-240V/9.6A 208V/11.1A
220-240V/14.2A208V/16.3A220-240V/14.2A208V/16.3A220-240V/18.8A208V/21.6A220-240V/18.8A208V/21.6A
MINIMUM FLOOR CLEARANCEWall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
