Mobotix P71 Single Compact Camera
P71 SINGLE COMPACT CAMERA
P71 SINGLE COMPACT CAMERA
Distinctive. Flexible. Precise.
An all-rounder — this applies both to the striking design of the MOBOTIX p71 and to its great performance, which impresses due to the device's flexibility and wide range of applications.
INFORMATION
BRAND
Mobotix
PRODUCT TYPE
Camera
FLEXIBLE AND CONVENIENT
Can be manually adjusted along three axes
RANGE OF LENSES
Range of lenses with a viewing angle of between 15° and 120°
INTELLIGENT VIDEO ANALYSIS
Open to enable intelligent video analysis with camera apps
USE
Security
PRODUCTION
Made in Germany
SWITCH
Automatic day/night switching
INTEGRATED IR ILLUMINATION
Up to 30 m
BALL INSTEAD OF DOME
Compact and Precise

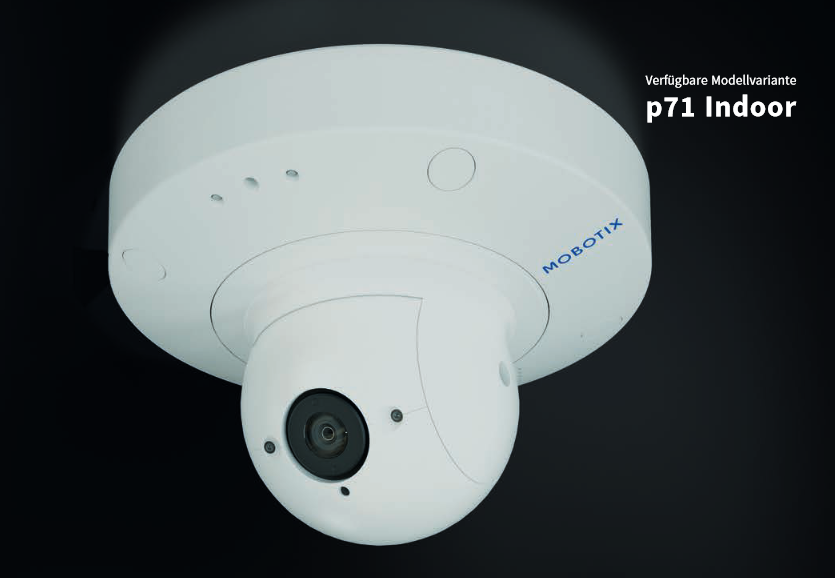

The striking p71 is a single lens camera with a robust aluminum housing. It features no dome, which eliminates reflections and guarantees the best visibility. The lens is housed in a thermoplastic ball. The p71 can cover a wide range of applications. It is mainly used inside (IP 20, IK06, -10° to 50°C) in shops, public buildings, hotels and schools. Thanks to the MTBF (Mean Time Between Failures) of more than nine years, the video system is low-maintenance and saves you money.

SUPERIOR IMAGE QUALITY, DAY AND NIGHT
Extensive range of lenses
The compact p71 can be fitted with all optical 4K and 4MP day/night lenses with a viewing angle°of 15 to 120°. The wide range of lenses, including the light-sensitive UltraLowLight sensors, ensure brilliant image quality. The integrated IR lighting can be customized to the wide, standard or tele lenses to ensure optimal lighting and superior image quality at all times.
DOWNLOAD
↓ Data Sheet
BUILT-IN AUDIO FUNCTION
For direct communication
DETAIL
The lens can be precisely set along three axes to cater to the detection range in the room. The p71 is mainly used indoors and, with its integrated audio function and infrared LEDs, provides reliable surveillance day and night. The versatile MOBOTIX 7 video analysis apps make the small p71 pack quite a big punch.
HIGHLIGHTS
COMPACT AND POWERFUL
High-performing throughout the whole line
The p71 has an 8-GB MicroSD memory card as standard. Thanks to its integrated audio module with microphone and speaker, it can be used for direct communication with people on-site (for example, through direct communication or via automated announcements). It goes without saying that the p71 meets the typical H.264 and H.265 standards and is ONVIF G, S and T compatible.
POE 3 - SAVE ENERGY AND CONSERVE RESOURCES
With the MOBOTIX 7 c71, p71, and v71 video systems, you can save costs, conserve resources and protect the environment. Primarily designed for indoor use, the MOBOTIX 7 video systems operates particularly for energy-saving. "Depending on the application, in many cases, the maximum illumination level or peripherals connected via USB are not required. By adapting to the current conditions, the power consumption corresponds to the max. 12.95 watts and thus to PoE class 3."
OUTSTANDINGLY ORIENTED
Sensor module can be moved manually on three axes
You can precisely set up the compact p71 on local conditions via three manually adjustable axes (right-left rotation, pan-tilt rotation and image rotation). While these mechanisms are used for the basic orientation of the system, you can use manual rotation to handle special requirements. This lets you manually change the image format from 16:9 widescreen to 9:16 portrait for use in a long corridor, allowing for optimal surveillance due to better coverage of the surveillance area.
