ROTISSERIE OVEN

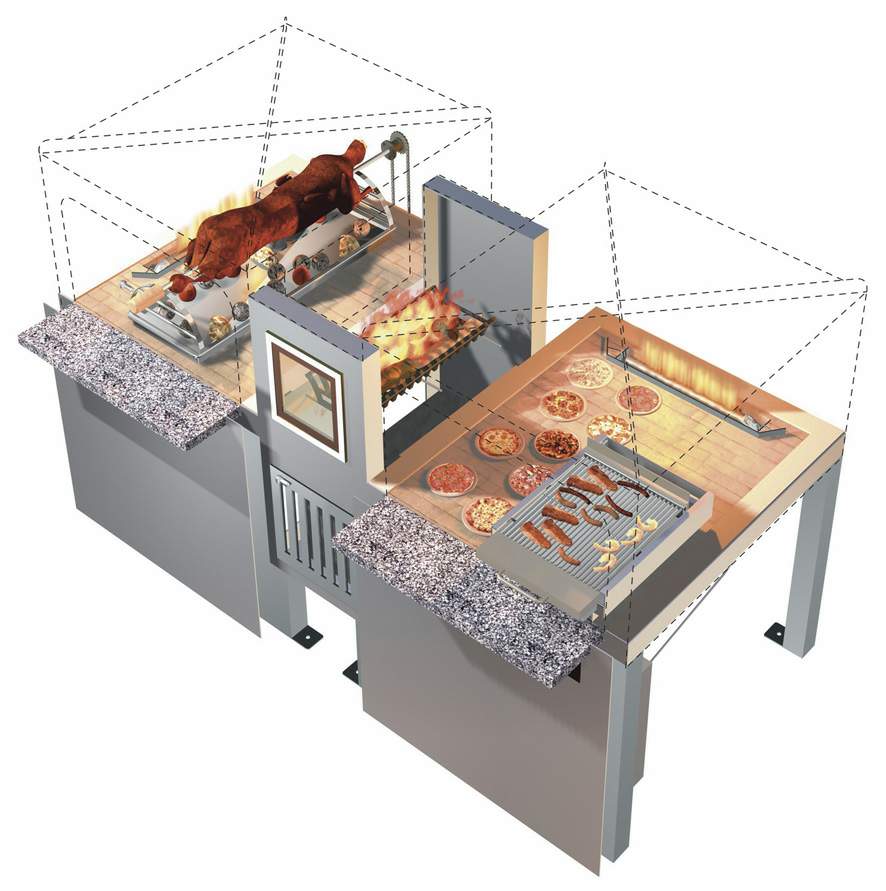

Beech’s rotisserie oven combines our stone hearth oven design with a removable rotisserie unit. It is perfect for cooking whole beasts such as lamb as well as multiple pieces of meat and whole chickens..

The rotisserie’s intense heat results in meat that is cooked evenly and is tender and tasty. Placing the rotisserie inside the oven allows for moisture to be retained and the meat to baste in its own juices.

Beechovens Rotisserie oven

INFORMATION

Beechovens Rotisserie oven

BRAND

Beechovens

PRODUCT TYPE

Oven

MODEL NUMBER

ROTISSL

CONSTRUCTION

High grade castable ceramic encased in 5mm steel housing supplied in 2 major sections with removable legs. 50mm insulation covers oven body, 25mm air gap between insulation and noncombustible façade material. 75mm stone hearth floor above 25mm insulating board and 5mm plate.

HEIGHT

1715mm

EXT WIDTH

1400mm.

FIRING TYPE

Wood, Gas or Gas Back-up (Wood and Gas) or Electric (see separate spec sheet)

PURPOSE

Gas Fired stone hearth Rotisserie Oven for Roasting whole sections of meat, Grilling, Pan-frying cooking Pizza and other dishes.

EXHAUST REQUIREMENTS

Under Canopy/Hood OR Beech Spray Filter (Wet Scrubber) OR Flue Transition.

Beechovens Rotisserie oven

CAPACITY

Roasts meat sections up to 1 meter in overall length. Cooking time depending on operator and temperature and size of meat section. Maximum loaded weight - 25kg’s.

SAFETY

Oven and associated systems are CE and UL certified and AS4563 compliant. UL Tested to Subject 2162 (Wood/Gas Fired). Complies to USA “ANSI-NSF standard 4” Exterior temperatures below 50°C. Compliant Gas systems with flame failure device.

MANUFACTURER

Beech Ovens

INT WIDTH

1050mm.

FIRING TYPE

Gas Fired

PRODUCT DESCRIPTION

Large Rotisserie Oven – Gas fired

SAFETY

Oven and associated systems are CE and UL certified and AS4563 compliant. UL Tested to Subject 2162 (Wood/Gas Fired). Complies to USA “ANSI-NSF standard 4” Exterior temperatures below 50°C. Compliant Gas systems with flame failure device.

SPECIAL REQUIREMENTS

Façade and Oven surround to be made of non-combustible material. Access and ventilation panel to both above and below oven - minimum 600mm x 600mm Metal infill required between oven spigot and façade to prevent hot air and flames entering the façade cavity.

PRODUCTION

Made In Australia

Beechovens Rotisserie oven

GAS

Full Gas – 1 x 70mJ (66347 BTU) + 1 x 50mJ (47391 BTU) NAT/LPG (700 & 500 Display Burner)

DETAIL

Combining superior cooking ability, efficiency and flexibility of design, the Grill Ovens take grilling to another level.

ACCESSORIES

2 x Rotisserie trays with associated clamps and skewers, 1 x SS trolley & assorted oven tools. Lower Access/Services Panel with inbuilt Operator Panel Stainless Steel Hearth (Optional – shown in image) Spray Filter (Optional – shown in image)

Beechovens Rotisserie oven

MEP RATINGS

-Gas Connection – 2 x 19mm (3/4”) line (1 per burner). -Electrical (gas fired) – 220-240VAC @ 50Hz 1 Phase 10 AMP (Rotisserie Drive wired to main control  cabinet) -Spray Filter Water Inlet– 15mm @ 30 L/H -Spray Filter Water Outlet – 40mm Copper Drain – To drain via tundish visible to operator -Spray Filter Water Solenoid – 220-240VAC @ 50Hz 1 Phase 10AMP (Linked to exhaust fan – Fan ON = Solenoid ON) -Spray Filter Exhaust Ratings – 300mm x 300mm connection, 150Pa Static Pressure, 450l/sec -Spray Filter Cool-air Make-up unit – Ensure a fresh air supply is available. No connection required.

TECHNICAL DRAWINGS
